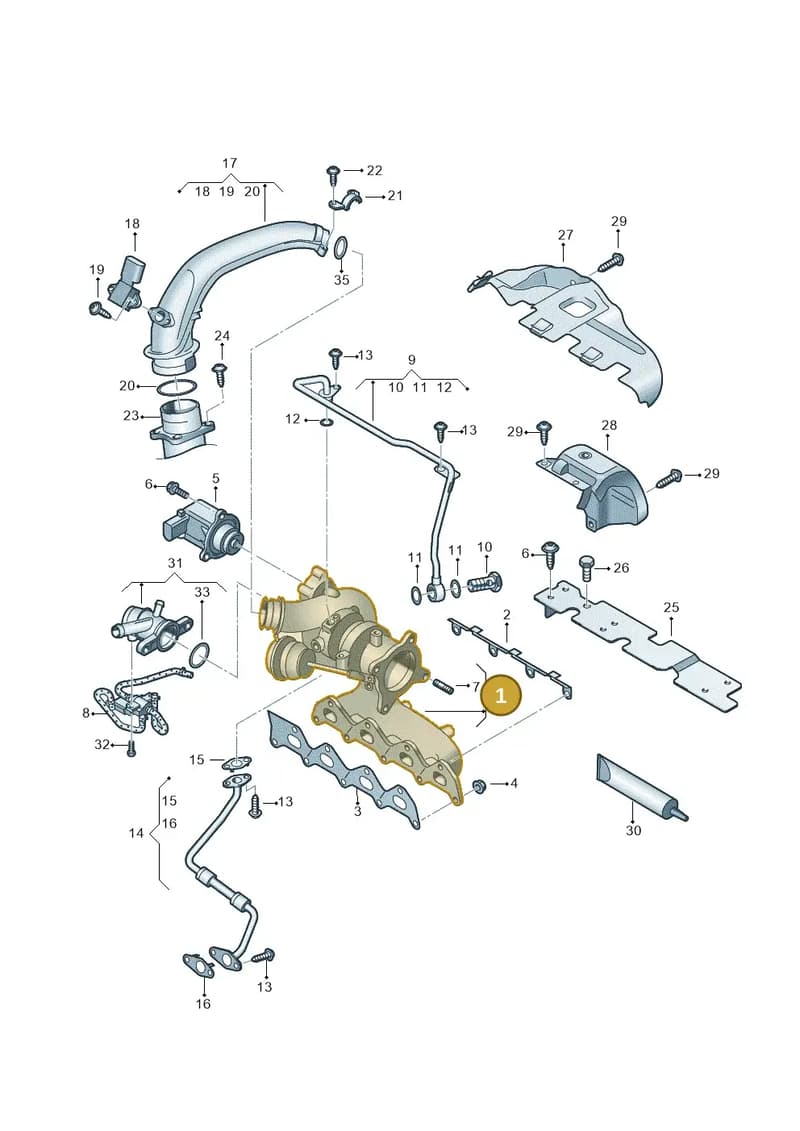

Number 1 marks the part’s position in this exploded view (Volkswagen Jetta (2014-2018)).
Other diagrams in the gallery may use a different number for the same part.
Product overview
Genuine OEM Volkswagen Exhaust Manifold with Turbocharger, part number 03C145702LX. Fits SEAT Altea XL (2013), Skoda Rapid (2012-2022), Volkswagen Jetta (2014-2018), Volkswagen Tiguan (2011-2018). Shown as position 1 in the engine diagram 625145530.
Catalogue entry: TURBO.
Fitted with: 03C145702L TURBO, 03C253039F SEAL, WHT003842 NUT, N0210717 SCREW, N0138133 seal ring, WHT003366A SEAL. RING, N10335202 BOLT, 03C145757D SEAL, 03C145757A SEAL, N91096603 BOLT, G052112A3 PASTE, WHT001386 SEAL.
Technical details
- Category
- Intake & Turbo
- Diagram sheet
- Volkswagen 625145530, position 1
- ETKA group
- 1 / 45 (145)
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
34 vehiclesExhaust Manifold With Turbocharger — locate 03C145702LX Volkswagen Exhaust Manifold with Turbocharger in the official exploded view and explore the surrounding assembly.
Parts in this assembly33
- 1Turbo 03C145702L
- 2Bracket 03C253197R
- 2Bracket 03C253197P
- 3Seal 03C253039D
- 4Ut Hexagon Nut Self-locking Hexagon Nut N90894601
- 5Valve 06H145710D
- 6Bolt N10196103
- 7Bolt WHT002622
- 8Valve Hose 03C145692P
- 10Screw N0210717
- 11Seal Ring N0138133
- 12Seal Ring WHT003366A
- 13Bolt N10335202
- 14Oil Pipe 03C145735F
- 15Seal 03C145757D
- 16Seal 03C145757A
- 17Pipe 03C145673N
- 18Sensor 038906051B
- 19Screw N90739703
- 20Seal Ring WHT003247
- 21Part 03C145853D
- 22Screw N10611201
- 23Adapter 03C145853H
- 24Bolt N10668001
- 25Bracket 03C253197N
- 26Bolt N01029319
- 27Defl Plate 03C253041BH
- 28Defl Plate 03C253041AS
- 29Bolt N91096603
- 30Paste G052112A3
- 31Manifold 03C129656C
- 32Screw N10442003
- 33Seal WHT001386
Vehicle fitment table34
Europe (33)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| Jetta 1.6 | 2014-2018 | 1 | 1 | |
| Scirocco 2.0 | 2014-2017 | 1 | 1 | |
| jetta | 2014-2017 | 1 | 1 | |
| Yeti | 2013-2017 | 1 | 1 | |
| jetta | 2013-2014 | 1 | 1 | |
| Altea XL Reference | 2013-2013 | 1 | 1 | TU0 |
| Rapid | 2012-2022 | 1 | 1 | |
| Toledo Reference | 2012-2015 | 1 | 1 | |
| Tiguan 4Motion | 2011-2018 | 1 | 1 | |
| Golf Cabriolet | 2011-2016 | 1 | 1 | |
| Golf Plus | 2011-2014 | 1 | 1 | |
| Golf | 2011-2013 | 1 | 1 | |
| Passat saloon | 2010-2015 | 1 | 1 | |
| Eos BlueMotion | 2010-2015 | 1 | 1 | |
| Audi A1 Sportback | 2010-2015 | 1 | 1 | TU0 |
| jetta | 2010-2014 | 1 | 1 | |
| golf estate | 2009-2013 | 1 | 1 | |
| Yeti | 2009-2013 | 1 | 1 | |
| Golf Plus 1.6 | 2009-2011 | 1 | 1 | TU0 |
| Scirocco 2.0 | 2008-2014 | 1 | 1 | |
| superb comfort | 2008-2013 | 1 | 1 | |
| octavia ambiente | 2008-2013 | 1 | 1 | |
| Audi A3 Sportback | 2008-2013 | 1 | 1 | |
| golf 2.0 | 2008-2011 | 1 | 1 | TU0 |
| passat estate | 2008-2011 | 1 | 1 | |
| EOS 2.0 | 2008-2010 | 1 | 1 | |
| GOLF PLUS 08> | 2007- | 1 | ||
| Passat/4Motion 08 | 2007- | 1 | ||
| TIGUAN 08> | 2007- | 1 | 1 | |
| Audi A3/S3/Sportb./qu. 08 | 2007- | 1 | 1 | |
| Audi A3 Cab. 2.0 TDI | 2007-2013 | 1 | 1 | TU0 |
| JETTA 06> | 2006- | 1 | 1 | |
| ALTEA 07> | 2006- | 1 | 1 | TU0 |
Other markets (1)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| Golf/Rabbit 08> | 2007- | 1 |
