Product overview

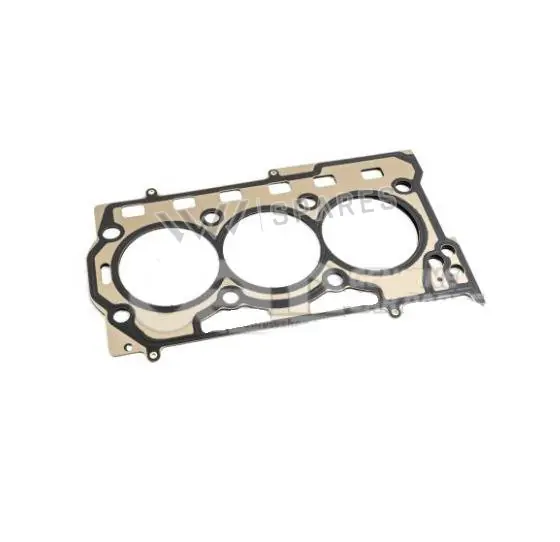

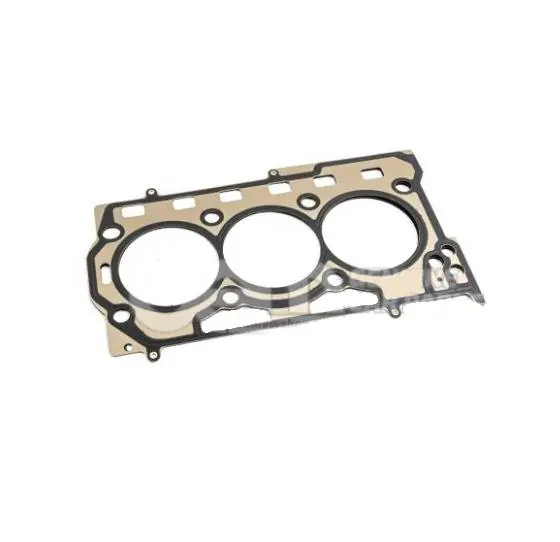

Genuine OEM Volkswagen Engine Cylinder Head Gasket, part number 03E103383H. This critical gasket forms a vital seal between the engine cylinder head and the engine block, preventing the leakage of combustion gases, coolant, and engine oil. Its multi-layer steel (MLS) construction ensures durability and resistance to high temperatures and pressures within the engine. With a thickness of approximately 0.001 meters and weighing 0.104 kg, it is engineered for precise sealing. Using a genuine OEM cylinder head gasket guarantees the correct material composition, precise dimensions, and optimal sealing properties, which are essential for maintaining engine compression and preventing fluid cross-contamination.
Catalogue entry: SEAL.
Fitted with: 036103384B SCREW, AMV18800102 SEAL COMP, 03E103351D CYL HEAD, 03E103264AX CYL HEAD, WHT001300 SCREW, WHT001302 SCREW, N90951301 SEAL. RING, N10300805 SCREW, N10247504 SCREW.
Technical details
- Category
- Gaskets & Seals
- Country of origin
- Germany
- Customs (HS) code
- 84841000
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 29.2 × 16.8 × 0.1 cm
- Shipping weight
- 0.1 kg
Specifications
As recorded in the manufacturer’s parts catalogue for this part number.
Equipment codes
- DG3
- D21
PR codes identify the factory option a part belongs to; your vehicle’s are listed on the data sticker in the boot well or service booklet.
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment

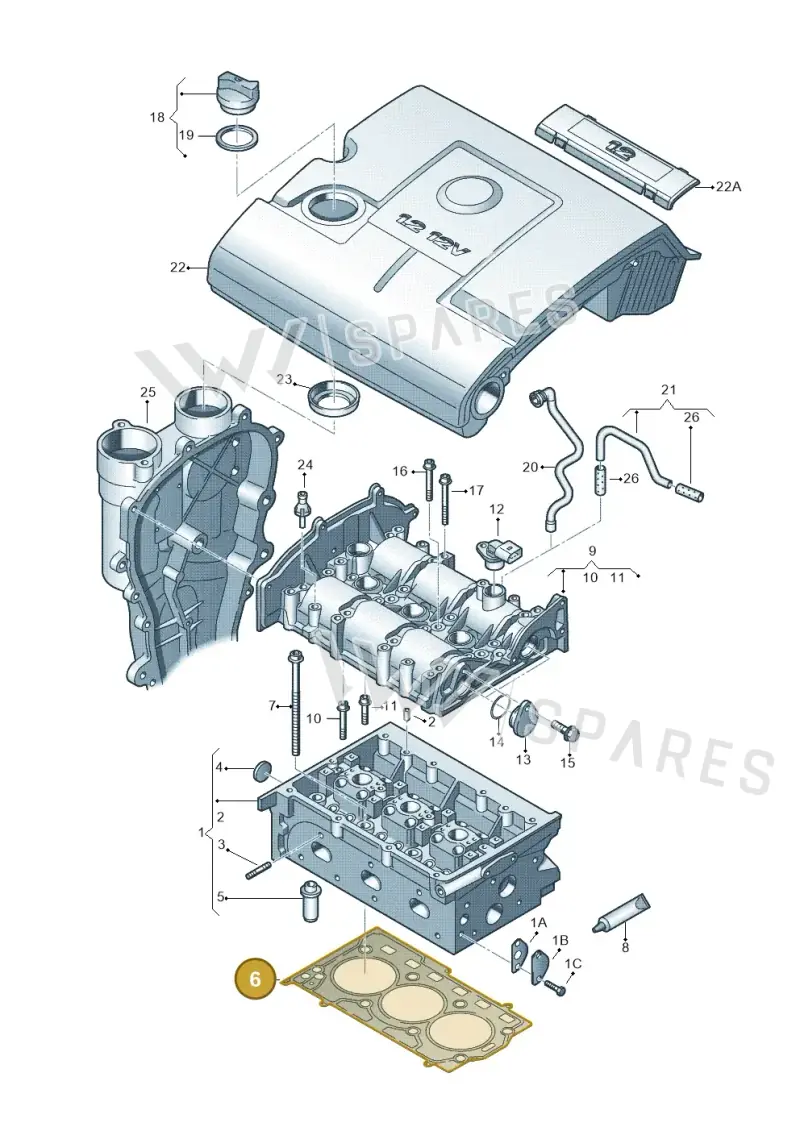

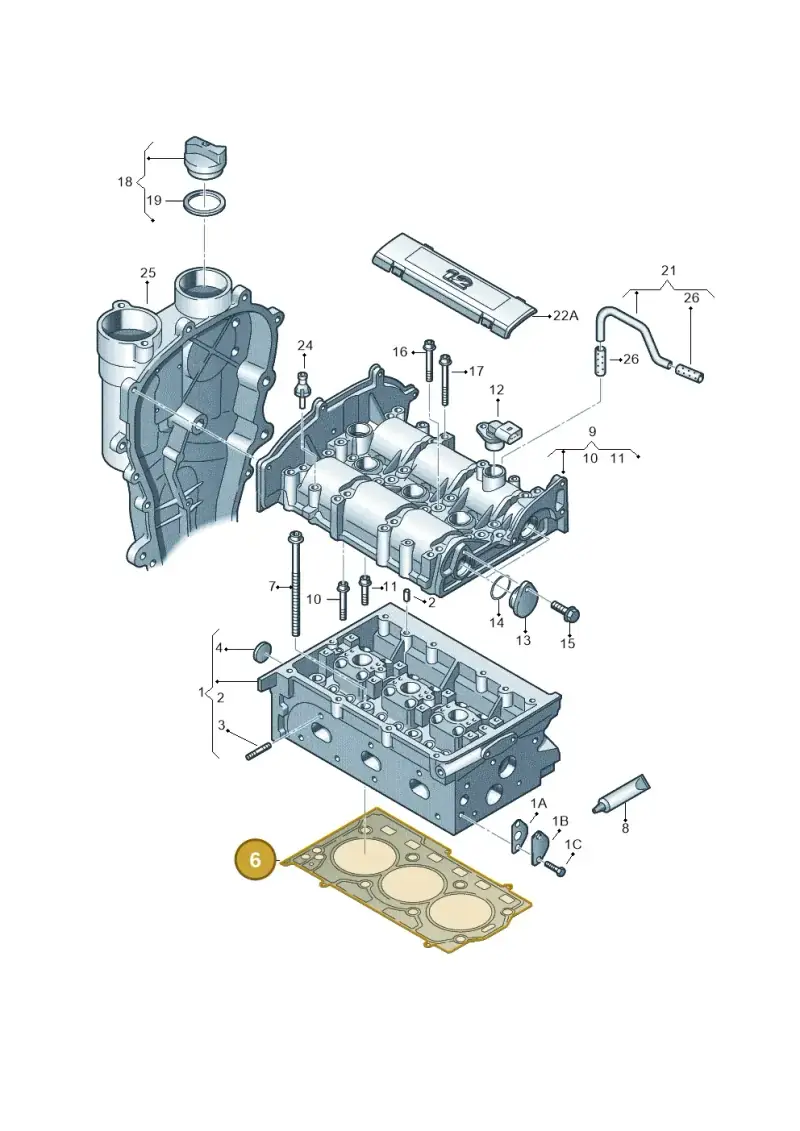

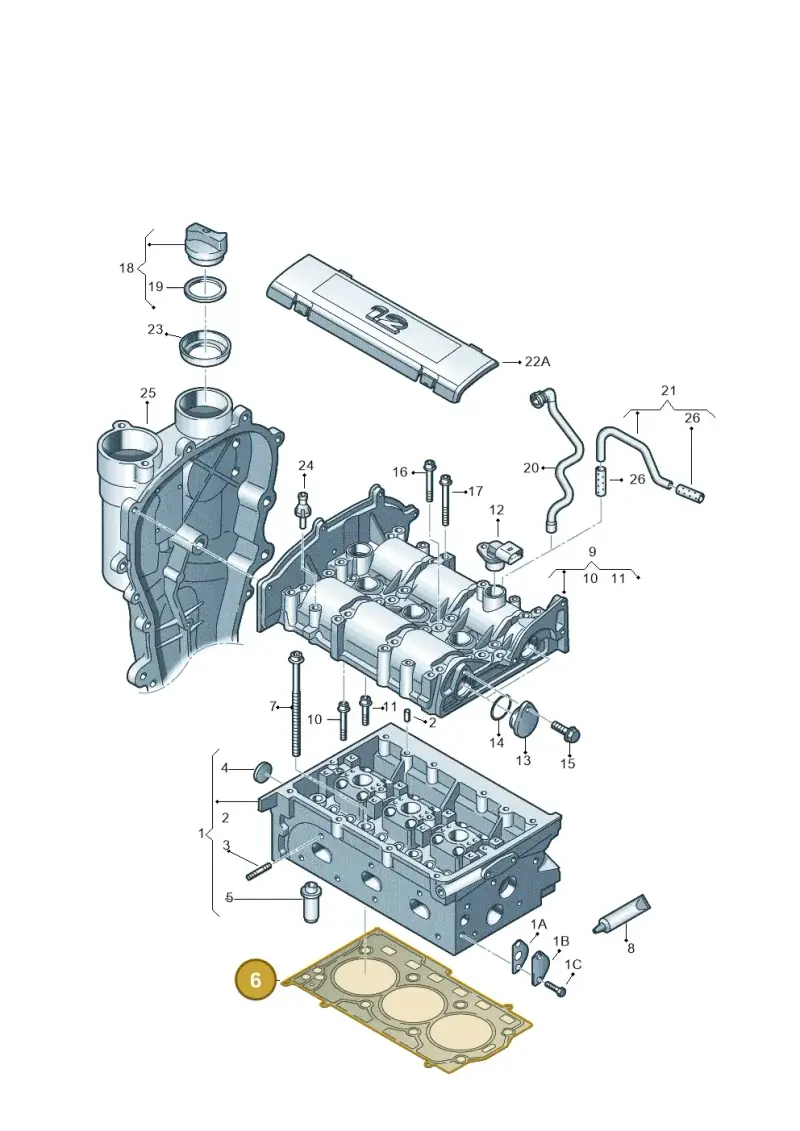

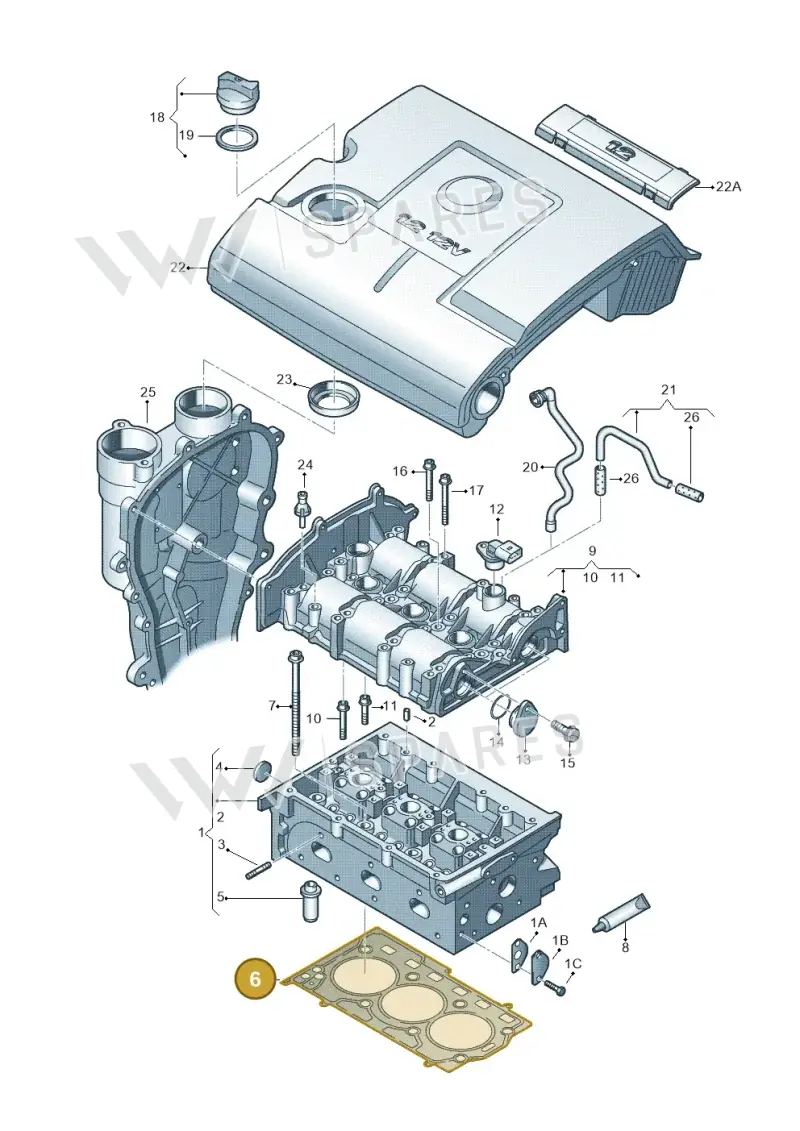

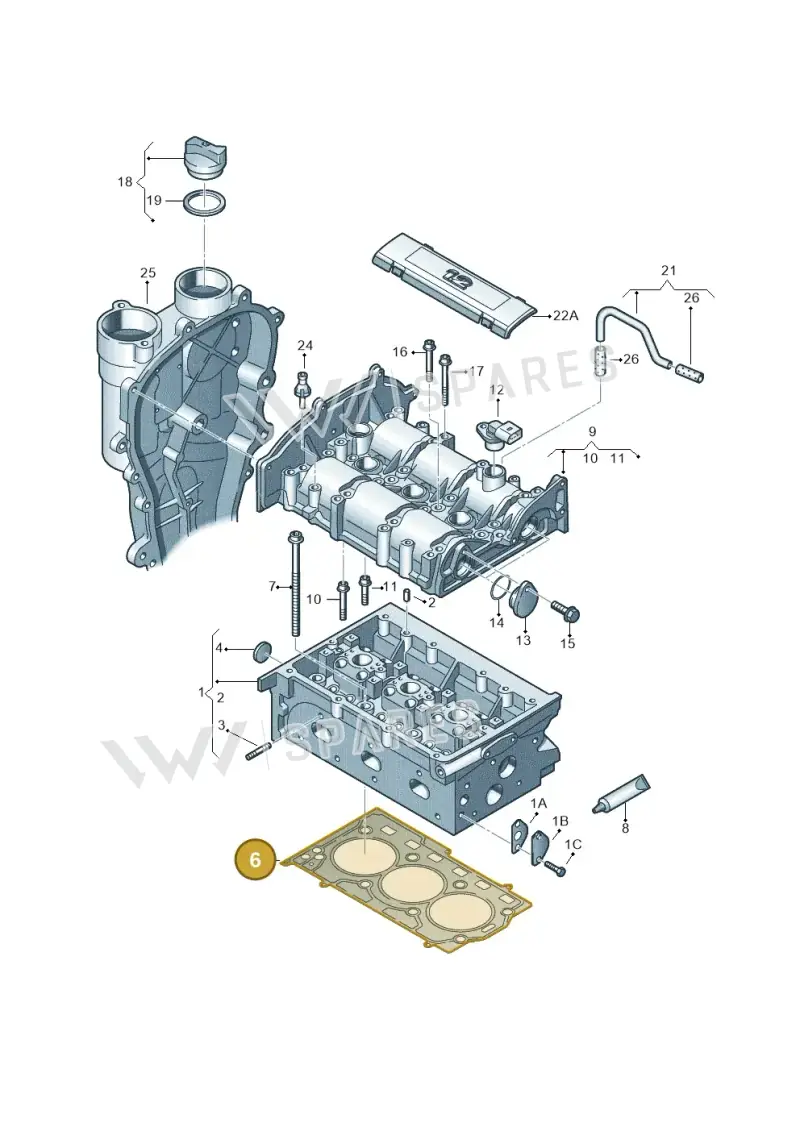

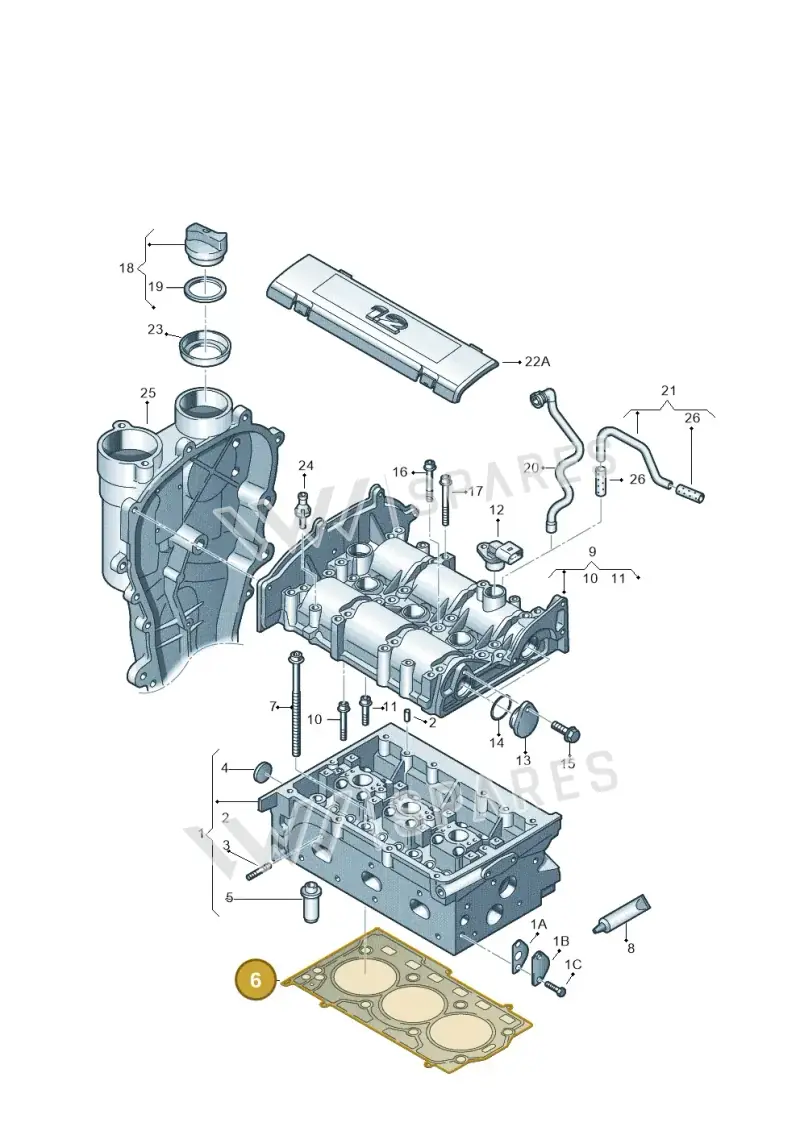

16 vehiclesCylinder Head Gasket (metal) — locate 03E103383H Volkswagen Engine Cylinder Head Gasket | Engine Seal in the official exploded view and explore the surrounding assembly.
Parts in this assembly27
- 1Cylinder Head 03E103264X
- 1Cylinder Head 03E103351
- 1APlate 036131281
- 1BSeal 036131550H
- 1CBoltRightN01029316
- 2Part N0132102
- 3Bolt N0444104
- 4Cover N01191410
- 7Screw 036103384B
- 8Seal Comp AMV18800102
- 9Cover 03E103473M
- 10Screw N91054401
- 11Screw N10302403
- 11Screw N10302402
- 13Cover 03E103111A
- 14Seal Ring N90951301
- 15Bolt N10082912
- 16Screw N91055401
- 17Part N10247504
- 18Cover 04E103485B
- 19Seal 06A103483D
- 20Hose 03E103493C
- 21Hose 03E103474D
- 21Hose 03E103474C
- 22ACover 03E103929A
- 23Seal Ring 03C133287A
- 24Ball Joint 036129846B
Compatible / alternative parts(12)
Vehicle fitment table16
Europe (14)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Rapid | 2012-2022 | 6 | 1 | ||
| Toledo Reference | 2012-2015 | 6 | 1 | ||
| Polo | 2012-2014 | 6 | 1 | ||
| Ibiza Reference | 2012-2012 | 6 | 1 | DG3 | |
| Ibiza Reference | 2011-2012 | 6 | 1 | DG3 | |
| Roomster | 2010-2015 | 6 | 1 | ||
| Fabia Scout | 2010-2014 | 6 | 1 | ||
| Polo | 2009-2014 | 6 | 1 | D25 | |
| Fabia Ambiente | 2009-2013 | 6 | 1 | ||
| Polo | 2009-2012 | 6 | 1 | D21 | |
| ROOMSTER 06> | 2006- | 6 | 1 | ||
| FABIA/COMBI NF 07> | 2006- | 6 | 1 | ||
| FABIA/COMBI 05> | 2004- | 6 | 1 | ||
| FABIA/COMBI | 1999-2004 | 6 | 1 | AZQ |
Other markets (2)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Ameo 1,0 | 2016-2020 | 6 | 1 | ||
| Polo | 2014-2022 | 6 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
03E103383H Volkswagen Engine Cylinder Head Gasket | Engine Seal is fitted on: Rapid 2012-2022; Toledo Reference 2012-2015; Polo 2012-2014; Ibiza Reference 2012-2012; Ibiza Reference 2011-2012; Roomster 2010-2015; Fabia Scout 2010-2014; Polo 2009-2014; Fabia Ambiente 2009-2013; Polo 2009-2012; ROOMSTER 06> 2006-; FABIA/COMBI NF 07> 2006-; FABIA/COMBI 05> 2004-; FABIA/COMBI 1999-2004; Ameo 1,0 2016-2020; Polo 2014-2022.
