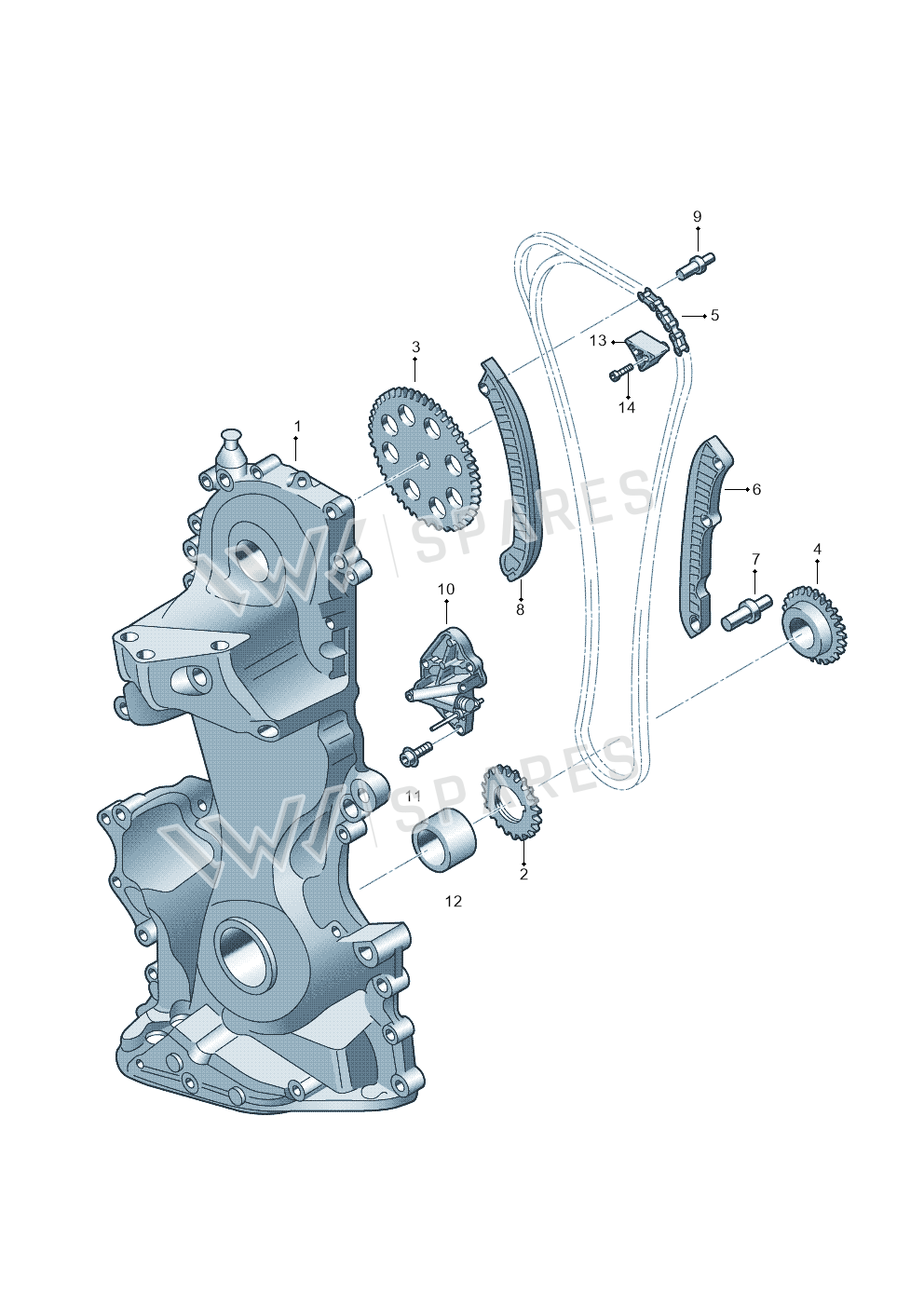

Guide Rail exploded parts diagram — Fabia Ambiente · 2009-2013, position 6
Exploded view
Fabia Ambiente · 2009-2013 · position 6Full diagram ↓
03E109469

03E109469 Guide Rail

£13.70
£11.32 excl. VAT
Supersession roadoldest to newest
  1. 03C109469CNot stocked
    Oct 2003
  2. 03E109469This pageDiscontinued
    Nov 2024
Availability: Discontinued — no longer orderable

Special order item. Delivery time may vary.

About This Part

Discontinued by the manufacturer

This part number has been discontinued and can no longer be ordered. Contact us and we will look for an alternative.

Order Processing & Delivery

This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.

Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.

* Delivery times are estimates and may vary based on manufacturer availability and your location.

Verify Vehicle Fitment

To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.

Contact us with your VIN
Genuine OEM Parts
Direct from manufacturer
Secure Ordering
Safe and protected checkout

Parts diagram & fitment

13 vehicles

Guide Rail — locate Guide Rail in the official exploded view and explore the surrounding assembly.

Parts in this assembly6
Vehicle fitment table13

Europe (13)

VehicleYearsPos.QtyRemarkPR
Fabia Ambiente2009-201361D21
Ibiza Reference2008-201161DG3
Polo2008-200961D21
ROOMSTER 06>2006-61BME,BZGD21
FABIA/COMBI NF 07>2006-61BZG,CEVAD21
IBIZA 06>2005-61D21
CORDOBA 06>2005-61D21
POLO2005-61BME,BZGD21
FABIA/COMBI 05>2004-61AZQ,BMEMA5
CORDOBA/SE2412002-200561MA5
IBIZA2001-200561MA5
POLO2001-200561AZQ,BMEMA5
FABIA/COMBI1999-200461AZQMA5

Diagrams & fitment data powered by oemdiagrams.com

Guide Rail is fitted on: Fabia Ambiente 2009-2013; Ibiza Reference 2008-2011; Polo 2008-2009; ROOMSTER 06> 2006-; FABIA/COMBI NF 07> 2006-; IBIZA 06> 2005-; CORDOBA 06> 2005-; POLO 2005-; FABIA/COMBI 05> 2004-; CORDOBA/SE241 2002-2005; IBIZA 2001-2005; POLO 2001-2005; FABIA/COMBI 1999-2004.
