03F103277A Cover
- 03F103277AThis pageNot stocked
Aug 2012 - 03F103277BCurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for SEAT is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

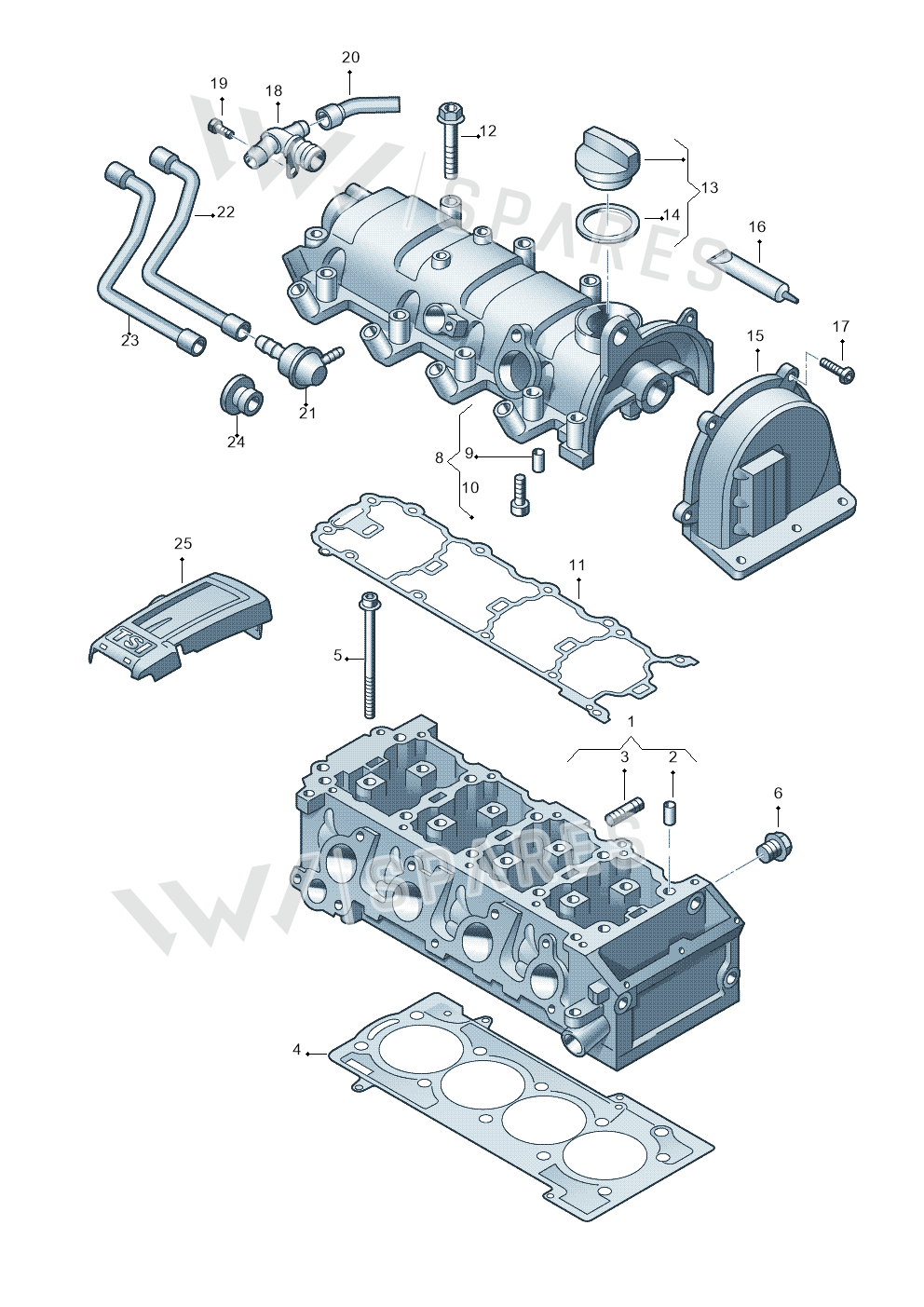

16 vehiclesCover — locate Cover in the official exploded view and explore the surrounding assembly.
Parts in this assembly24
- 1Cylinder Head 03F103264
- 1Cylinder Head 03F103264X
- 1Cylinder Head 03F103351A
- 2Part N0132102
- 3Bolt WHT004984
- 4Seal 03F103383E
- 5Screw WHT004790
- 6Bolt N91103401
- 8Cover 03F103473P
- 10Bolt N10156206
- 11Seal 03F103483A
- 12Bolt N10745801
- 13Cover 04E103485A
- 14Seal 06A103483D
- 15Cover 03F103277B
- 16Seal D176501A1
- 17Screw N91096901
- 18Valve 03F103175A
- 19Bolt N10748001
- 20Hose 03F103493
- 21Valve 030103175B
- 22Hose 03F103560
- 23Hose 03F103560C
- 24Grommet 03F103638
Vehicle fitment table16
Europe (16)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| Ibiza Reference | 2011-2012 | 15 | 1 | |
| Roomster | 2010-2015 | 15 | 1 | |
| Audi A1 Sportback | 2010-2015 | 15 | 1 | DB1 |
| Fabia Scout | 2010-2014 | 15 | 1 | |
| Altea XL Reference | 2010-2013 | 15 | 1 | |
| Leon Stylance | 2010-2012 | 15 | 1 | |
| Yeti | 2009-2013 | 15 | 1 | |
| Polo | 2009-2012 | 15 | 1 | |
| Golf Plus 1.6 | 2009-2011 | 15 | 1 | |
| octavia ambiente | 2008-2013 | 15 | 1 | |
| Audi A3 Sportback | 2008-2013 | 15 | 1 | |
| Ibiza Reference | 2008-2011 | 15 | 1 | |
| golf 2.0 | 2008-2011 | 15 | 1 | |
| Audi A3 Cab. 2.0 TDI | 2007-2013 | 15 | 1 | |
| ALTEA 07> | 2006- | 15 | 1 | |
| LEON 06> | 2005- | 15 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Cover is fitted on: Ibiza Reference 2011-2012; Roomster 2010-2015; Audi A1 Sportback 2010-2015; Fabia Scout 2010-2014; Altea XL Reference 2010-2013; Leon Stylance 2010-2012; Yeti 2009-2013; Polo 2009-2012; Golf Plus 1.6 2009-2011; octavia ambiente 2008-2013; Audi A3 Sportback 2008-2013; Ibiza Reference 2008-2011; golf 2.0 2008-2011; Audi A3 Cab. 2.0 TDI 2007-2013; ALTEA 07> 2006-; LEON 06> 2005-.
