Product overview

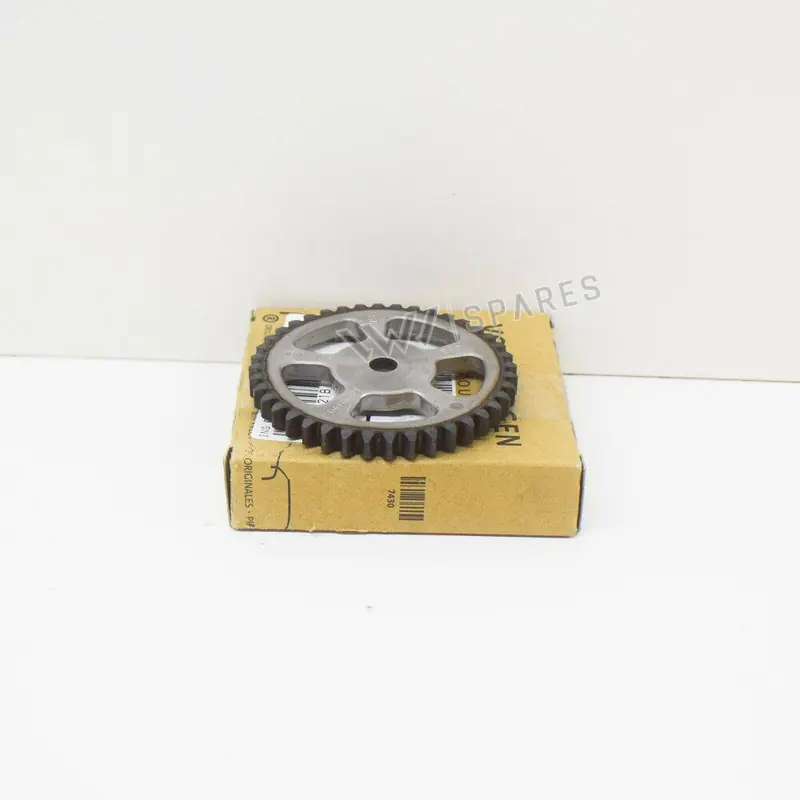

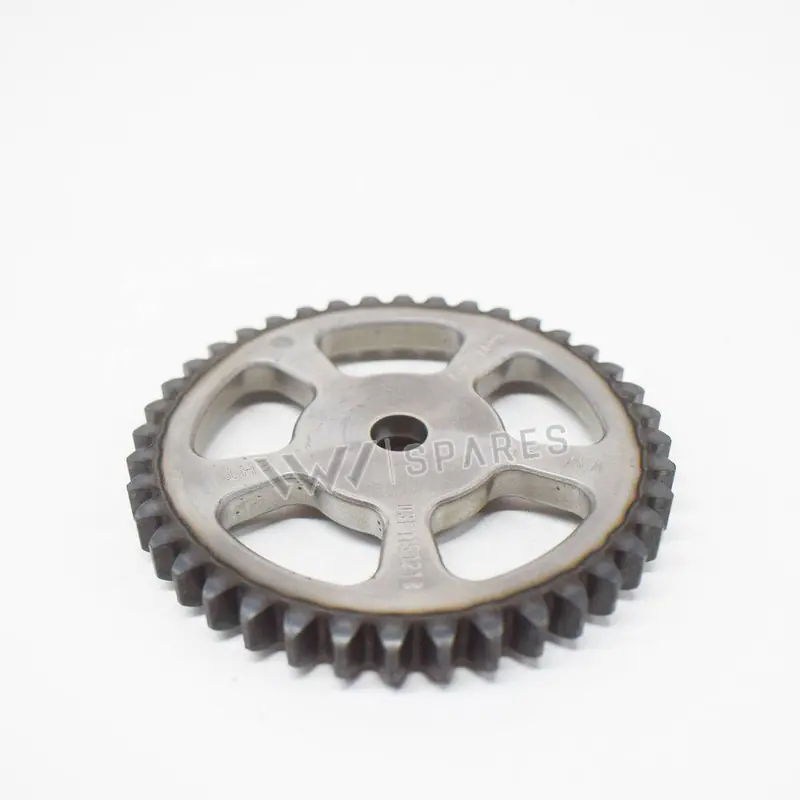

Genuine OEM Audi Oil Pump Chain Sprocket, part number 03F115121B. This sprocket drives the oil pump, which is crucial for circulating engine oil throughout the engine to ensure proper lubrication and cooling. It is located within the engine's oil pump assembly. Weighing approximately 0.159 kg with dimensions of 0.079m x 0.079m x 0.007m. Choosing a genuine OEM sprocket ensures precise tooth engagement and material durability, preventing premature wear and maintaining critical oil pressure for engine longevity.
Catalogue entry: CHN SPRCKT.
Fitted with: N90365901 BOLT.
Technical details
- Category
- Engine
- Country of origin
- Germany
- Customs (HS) code
- 84139100
- Manufacturer
- Audi
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 7.9 × 7.9 × 0.7 cm
- Shipping weight
- 0.16 kg
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
37 vehiclesChain Sprocket — locate 03F115121B Audi Oil Pump Chain Sprocket | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly17
- 1Oil Pump 03F115105D
- 2Sleeve 03D115143A
- 4Bolt N90365901
- 5Screw N90853902
- 6Chain 03F115225
- 8Cover 03F103669A
- 9Pipe 03F115251A
- 10Seal Ring N0282222
- 11Bolt N10124408
- 13Oil Cooler 03F117021A
- 14Seal 03F115111A
- 15Bolt N91096701
- 16Union 03C115721D
- 17Oil Filter 03C115561B
- 17Oil Filter 03C115561D
- 18Oil Dipsti 03F115611D
- 19Seal Ring 03F115331
Compatible / alternative parts(12)
Vehicle fitment table37
Europe (35)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| Beetle | 2016-2019 | 3 | 1 | |
| new beetle cabriolet | 2016-2019 | 3 | 1 | |
| jetta | 2014-2017 | 3 | 1 | |
| Yeti | 2013-2017 | 3 | 1 | |
| Altea XL Reference | 2013-2013 | 3 | 1 | DB0 |
| Rapid | 2012-2022 | 3 | 1 | |
| Toledo Reference | 2012-2015 | 3 | 1 | |
| Polo | 2012-2014 | 3 | 1 | DB0 |
| Ibiza Reference | 2012-2012 | 3 | 1 | |
| new beetle | 2011-2016 | 3 | 1 | |
| new beetle cabriolet | 2011-2016 | 3 | 1 | |
| Golf Cabriolet | 2011-2016 | 3 | 1 | DB0 |
| Golf Plus | 2011-2014 | 3 | 1 | DB0 |
| Golf | 2011-2013 | 3 | 1 | DB0 |
| Ibiza Reference | 2011-2012 | 3 | 1 | |
| Caddy Maxi Kombi | 2010-2015 | 3 | 1 | DB0 |
| Touran 2.0 | 2010-2015 | 3 | 1 | DB0 |
| Roomster | 2010-2015 | 3 | 1 | |
| Audi A1 Sportback | 2010-2015 | 3 | 1 | DB1 |
| jetta | 2010-2014 | 3 | 1 | |
| Fabia Scout | 2010-2014 | 3 | 1 | |
| Altea XL Reference | 2010-2013 | 3 | 1 | DB0 |
| Leon Stylance | 2010-2012 | 3 | 1 | DB0 |
| Polo | 2009-2014 | 3 | 1 | DB0 |
| golf estate | 2009-2013 | 3 | 1 | |
| Yeti | 2009-2013 | 3 | 1 | |
| Polo | 2009-2012 | 3 | 1 | |
| Golf Plus 1.6 | 2009-2011 | 3 | 1 | DB0 |
| octavia ambiente | 2008-2013 | 3 | 1 | |
| Audi A3 Sportback | 2008-2013 | 3 | 1 | DB0 |
| golf 2.0 | 2008-2011 | 3 | 1 | DB0 |
| Ibiza Reference | 2008-2011 | 3 | 1 | |
| Audi A3 Cab. 2.0 TDI | 2007-2013 | 3 | 1 | DB0 |
| ALTEA 07> | 2006- | 3 | 1 | DB0 |
| LEON 06> | 2005- | 3 | 1 | DB0 |
Other markets (2)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| Polo | 2014-2022 | 3 | 1 | |
| Polo 1.6 | 2013-2022 | 3 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
03F115121B Audi Oil Pump Chain Sprocket | Genuine OEM is fitted on: Beetle 2016-2019; new beetle cabriolet 2016-2019; jetta 2014-2017; Yeti 2013-2017; Altea XL Reference 2013-2013; Rapid 2012-2022; Toledo Reference 2012-2015; Polo 2012-2014; Ibiza Reference 2012-2012; new beetle 2011-2016; new beetle cabriolet 2011-2016; Golf Cabriolet 2011-2016; Golf Plus 2011-2014; Golf 2011-2013; Ibiza Reference 2011-2012; Caddy Maxi Kombi 2010-2015; Touran 2.0 2010-2015; Roomster 2010-2015; Audi A1 Sportback 2010-2015; jetta 2010-2014; Fabia Scout 2010-2014; Altea XL Reference 2010-2013; Leon Stylance 2010-2012; Polo 2009-2014; golf estate 2009-2013; Yeti 2009-2013; Polo 2009-2012; Golf Plus 1.6 2009-2011; octavia ambiente 2008-2013; Audi A3 Sportback 2008-2013; golf 2.0 2008-2011; Ibiza Reference 2008-2011; Audi A3 Cab. 2.0 TDI 2007-2013; ALTEA 07> 2006-; LEON 06> 2005-; Polo 2014-2022; Polo 1.6 2013-2022.
