03F121687 Seal
- 03F121687This pageNot stocked
Apr 2014 - 03F121687ACurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for SEAT is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

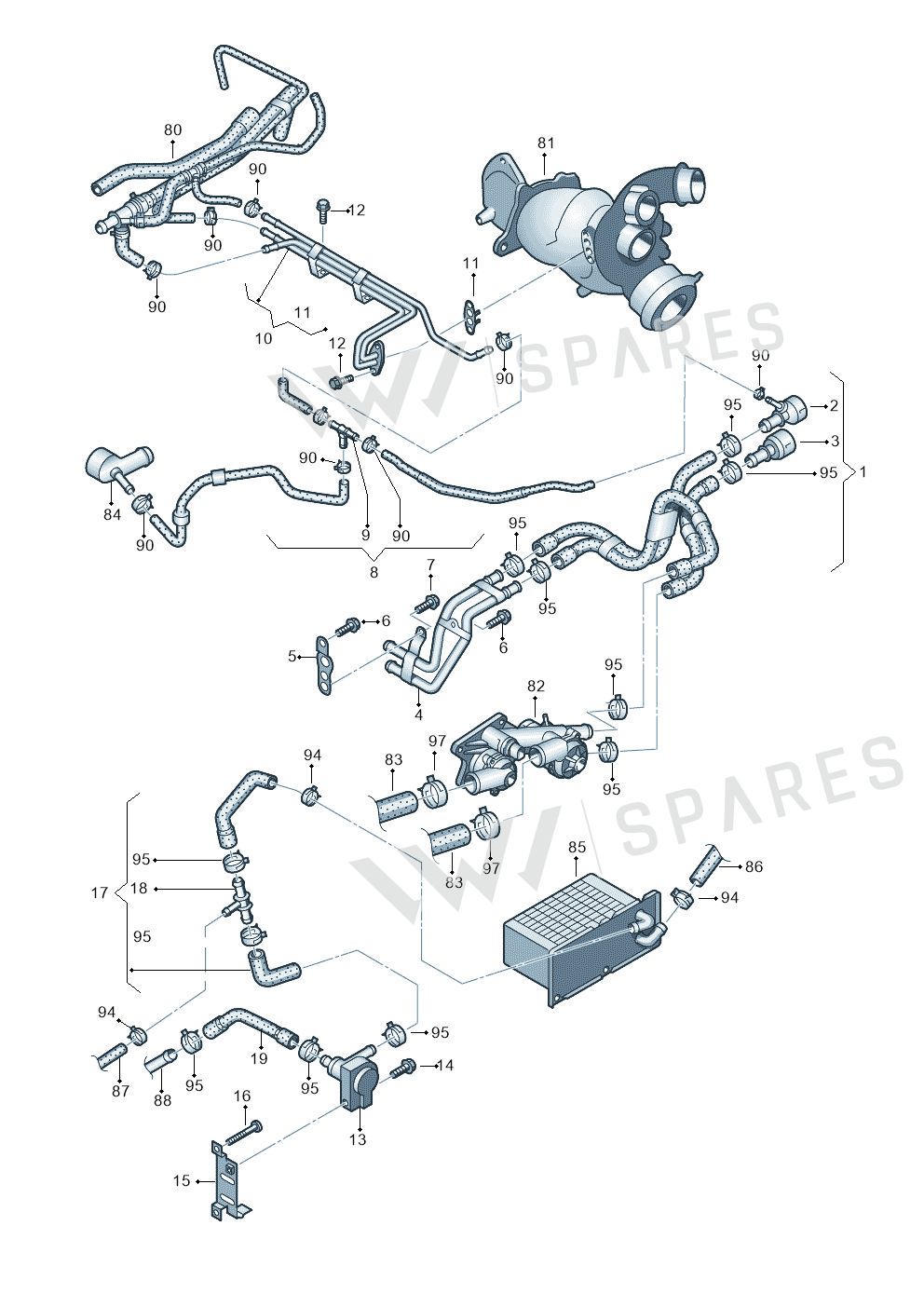

24 vehiclesSeal — locate Seal in the official exploded view and explore the surrounding assembly.
Parts in this assembly24
- 1Part 1K0121156DK
- 1Part 1K0121156EA
- 2Coupl Piece 1K0122291C
- 3Coupl Piece 3B0122291B
- 4Water Pipe 03C121151D
- 5Retaining 03C121079B
- 6Bolt N10216803
- 7Bolt N10009506
- 8Part 1K0122447HH
- 8Hose 1K0122447HK
- 9Tpiece N90693001
- 10Water Pipe 03F121497A
- 12Bolt N10405604
- 13Pump 1K0965561L
- 14Bolt N10124408
- 15Bracket 03F121093
- 16Screw N10470703
- 17Hose 1K0122063P
- 18Tpiece N90761001
- 19Hose 1K0121063S
- 90Clamp N90686701
- 94Clamp N90686902
- 95Clamp N90687001
- 97Clamp N90687201
Vehicle fitment table24
Europe (24)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| Yeti | 2013-2017 | 11 | 1 | |
| Rapid | 2012-2022 | 7 | 1 | TW0 |
| Polo | 2012-2014 | 7 | 1 | TW0 |
| Golf Plus | 2011-2014 | 11 | 1 | TW0 |
| Golf | 2011-2013 | 11 | 1 | TW0 |
| Ibiza Reference | 2011-2012 | 7 | 1 | TW0 |
| Roomster | 2010-2015 | 7 | 1 | TW0 |
| Audi A1 Sportback | 2010-2015 | 7 | 1 | TW0 |
| jetta | 2010-2014 | 11 | 1 | |
| Fabia Scout | 2010-2014 | 7 | 1 | TW0 |
| Altea XL Reference | 2010-2013 | 11 | 1 | TW0 |
| Leon Stylance | 2010-2012 | 11 | 1 | TW0 |
| Polo | 2009-2014 | 7 | 1 | TW0 |
| golf estate | 2009-2013 | 11 | 1 | |
| Yeti | 2009-2013 | 11 | 1 | |
| Polo | 2009-2012 | 7 | 1 | TW0 |
| Golf Plus 1.6 | 2009-2011 | 11 | 1 | TW0 |
| octavia ambiente | 2008-2013 | 11 | 1 | |
| Audi A3 Sportback | 2008-2013 | 11 | 1 | TW0 |
| golf 2.0 | 2008-2011 | 11 | 1 | TW0 |
| Ibiza Reference | 2008-2011 | 7 | 1 | TW0 |
| Audi A3 Cab. 2.0 TDI | 2007-2013 | 11 | 1 | TW0 |
| ALTEA 07> | 2006- | 11 | 1 | TW0 |
| LEON 06> | 2005- | 11 | 1 | TW0 |
Diagrams & fitment data powered by oemdiagrams.com
Seal is fitted on: Yeti 2013-2017; Rapid 2012-2022; Polo 2012-2014; Golf Plus 2011-2014; Golf 2011-2013; Ibiza Reference 2011-2012; Roomster 2010-2015; Audi A1 Sportback 2010-2015; jetta 2010-2014; Fabia Scout 2010-2014; Altea XL Reference 2010-2013; Leon Stylance 2010-2012; Polo 2009-2014; golf estate 2009-2013; Yeti 2009-2013; Polo 2009-2012; Golf Plus 1.6 2009-2011; octavia ambiente 2008-2013; Audi A3 Sportback 2008-2013; golf 2.0 2008-2011; Ibiza Reference 2008-2011; Audi A3 Cab. 2.0 TDI 2007-2013; ALTEA 07> 2006-; LEON 06> 2005-.
