03F133518C Connecting Hose
- 03F133518CThis pageNot stocked
Jun 2011 - 03F133518DNot stocked
Jun 2012 - 03F133518ECurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VOLKSWAGEN is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

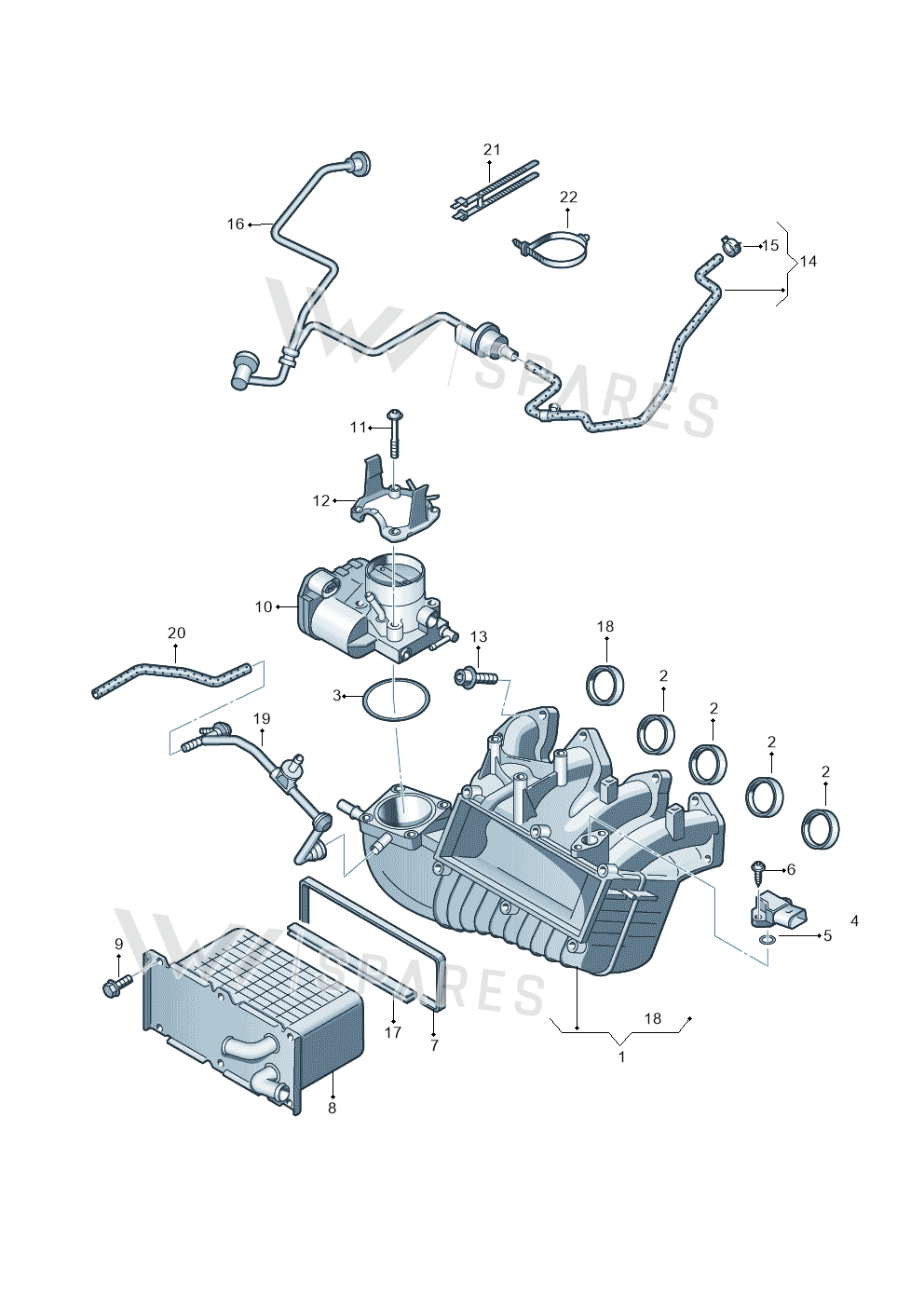

2 vehiclesConnecting Hose — locate Connecting Hose in the official exploded view and explore the surrounding assembly.
Parts in this assembly20
- 1Connection 03F129709F
- 2Seal 03F129717
- 3Seal 03C133073A
- 4Sensor 03G906051D
- 6Screw N90739704
- 7Seal 03C129717N
- 7Seal 03C129717H
- 8Cooler 03F145749B
- 9Bolt WHT002603
- 10Adapter 03F133062
- 11Bolt N10668001
- 13Screw N91097201
- 14Hose 03F133518D
- 15Clamp N90686701
- 16Hose 03F133366B
- 17Seal 03F129717C
- 18Seal 03F129717A
- 19Pump 03F133751B
- 21Binder 4A0820199
- 22Cable Tie 3D0971838N
Vehicle fitment table2
Europe (2)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| Golf Plus 1.6 | 2009-2011 | 14 | 1 |
| golf 2.0 | 2008-2011 | 14 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Connecting Hose is fitted on: Golf Plus 1.6 2009-2011; golf 2.0 2008-2011.
