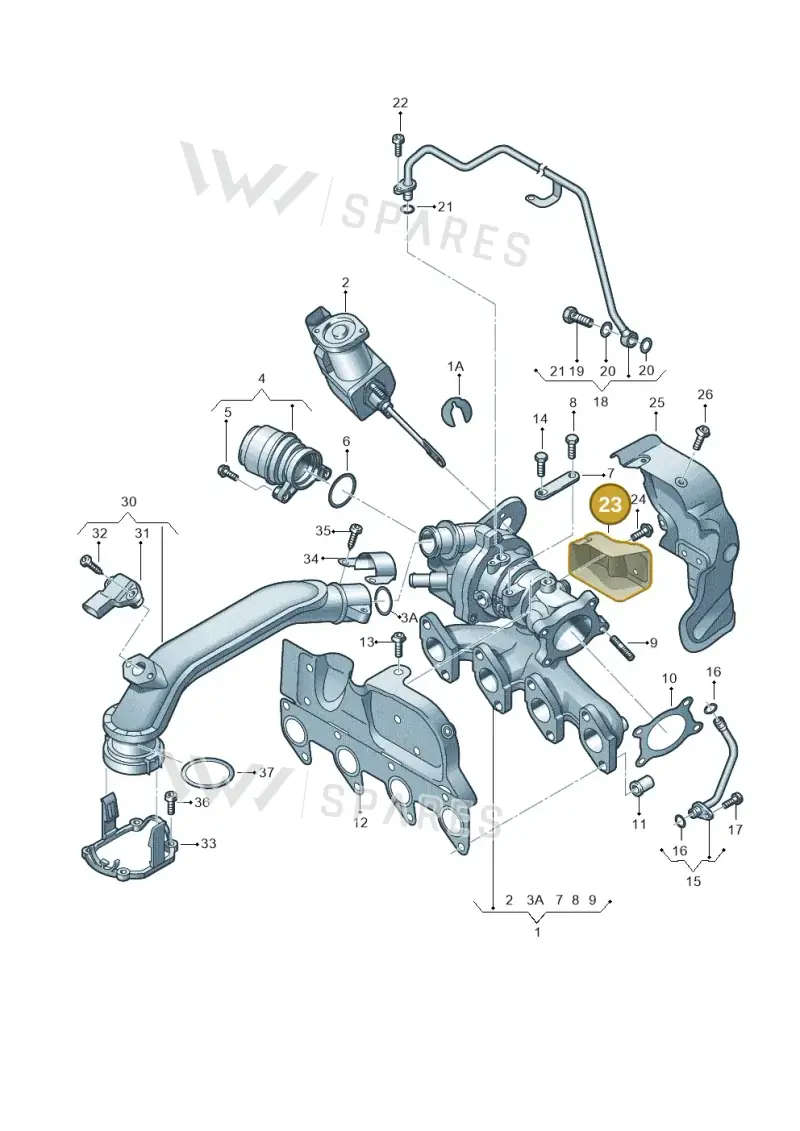

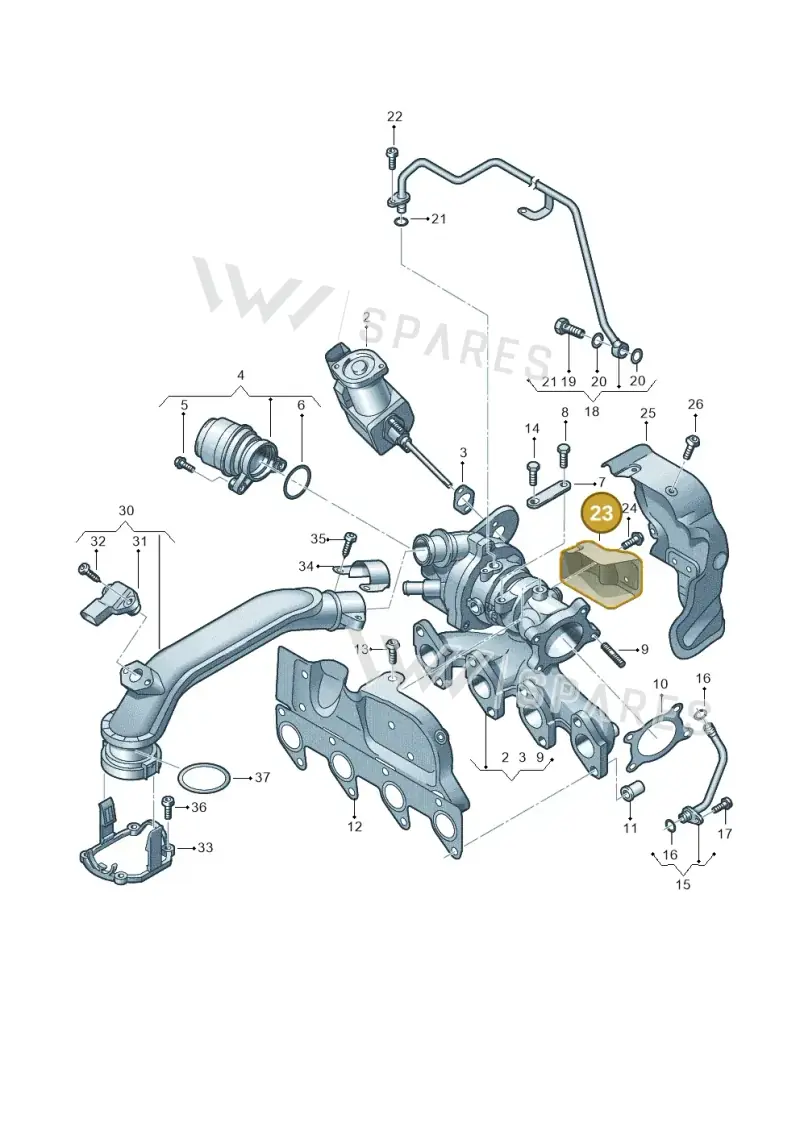

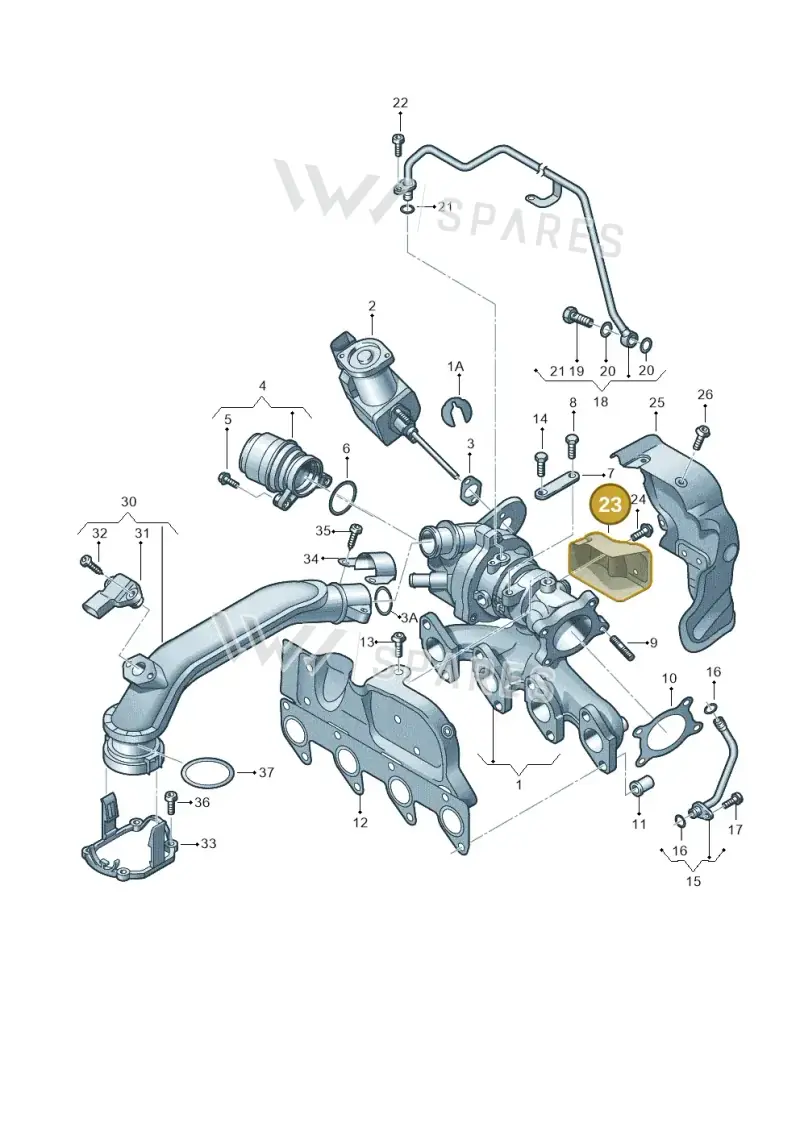

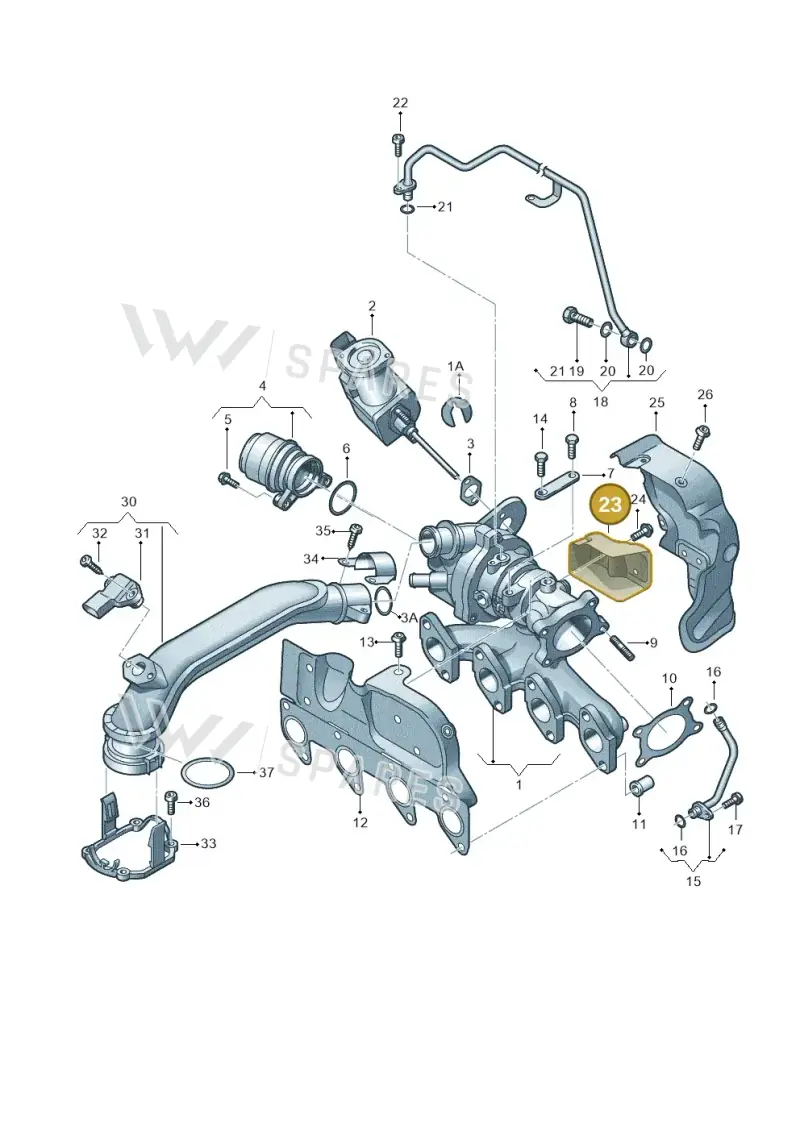

Number 23 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Exhaust Manifold Heat Shield, part number 03F253041G. This protective plate is positioned above the exhaust manifold and turbocharger, designed to shield adjacent engine components and wiring from the extreme heat generated during operation. It helps manage under-hood temperatures and prevent heat-related damage. Weighing 0.15 kg, this shield is made from heat-resistant materials. Choosing genuine OEM ensures the correct material properties, precise contours, and mounting points for effective thermal management and long-term durability.
Technical details
- Category
- Exhaust
- Country of origin
- Germany
- Customs (HS) code
- 87089997
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 9 × 9 × 13 cm
- Shipping weight
- 0.15 kg
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
21 vehiclesWarm Air Deflector Plate — locate 03F253041G Volkswagen Exhaust Manifold Heat Shield | OEM in the official exploded view and explore the surrounding assembly.
Superseded by 03F253041P — the current replacement part.
Parts in this assembly44
- 1Turbo 03F145701R
- 1Turbo 03F145701RX
- 1Turbo 03F145701S
- 1Turbo 03F145701T
- 1Turbo 03F145701TX
- 1Turbo 03F145701SX
- 1APart 03F145371
- 1APart 03F145371A
- 2Repair Kit 03F198725A
- 2Repair Kit 03F198725C
- 3ASeal Ring WHT003865
- 4Intake Man 03F129656F
- 5Bolt WHT003261
- 6Seal Ring WHT006135
- 7Support 03F145195
- 8Bolt N01029319
- 9Bolt WHT002622
- 10Seal 1K0253115AF
- 10Seal 1K0253115AH
- 11Part WHT004982
- 12Seal 03F253041AA
- 12Seal 03F253041P
- 13Bolt N91096603
- 15Oil Line 03F145735C
- 15Oil Line 03F145735E
- 16Seal Ring WHT005363
- 17Bolt N10451405
- 18Oil Pipe 03F145140D
- 18Oil Pipe 03F145140E
- 19Screw N0210717
- 20Seal Ring N0138133
- 21Seal Ring 8P0145117A
- 22Bolt N10405604
- 23Defl Plate 03F253041R
- 25Defl Plate 03F253041M
- 25Defl Plate 03F253041S
- 30Pipe 03F145673F
- 31Sensor 03G906051D
- 32Screw N90739704
- 33Part 03F145853A
- 34Adapter 03F145853
- 35Screw N10611201
- 36Bolt N10668001
- 37Seal Ring WHT005280
Compatible / alternative parts(12)
Vehicle fitment table21
Europe (21)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| Golf Cabriolet | 2011-2016 | 23 | 1 | |
| Golf Plus | 2011-2014 | 23 | 1 | |
| Touran 2.0 | 2010-2015 | 23 | 1 | |
| Caddy Maxi Kombi | 2010-2015 | 23 | 1 | |
| Roomster | 2010-2015 | 23 | 1 | |
| Audi A1 Sportback | 2010-2015 | 23 | 1 | TW0 |
| jetta | 2010-2014 | 23 | 1 | |
| Fabia Scout | 2010-2014 | 23 | 1 | |
| Altea XL Reference | 2010-2013 | 23 | 1 | TW0 |
| Leon Stylance | 2010-2012 | 23 | 1 | TW0 |
| golf estate | 2009-2013 | 23 | 1 | |
| Yeti | 2009-2013 | 23 | 1 | |
| Polo | 2009-2012 | 23 | 1 | |
| Golf Plus 1.6 | 2009-2011 | 23 | 1 | TW0 |
| octavia ambiente | 2008-2013 | 23 | 1 | |
| Audi A3 Sportback | 2008-2013 | 23 | 1 | TW0 |
| golf 2.0 | 2008-2011 | 23 | 1 | |
| Ibiza Reference | 2008-2011 | 23 | 1 | TW0 |
| Audi A3 Cab. 2.0 TDI | 2007-2013 | 23 | 1 | TW0 |
| ALTEA 07> | 2006- | 23 | 1 | TW0 |
| LEON 06> | 2005- | 23 | 1 | TW0 |
Diagrams & fitment data powered by oemdiagrams.com
03F253041G Volkswagen Exhaust Manifold Heat Shield | OEM is fitted on: Golf Cabriolet 2011-2016; Golf Plus 2011-2014; Touran 2.0 2010-2015; Caddy Maxi Kombi 2010-2015; Roomster 2010-2015; Audi A1 Sportback 2010-2015; jetta 2010-2014; Fabia Scout 2010-2014; Altea XL Reference 2010-2013; Leon Stylance 2010-2012; golf estate 2009-2013; Yeti 2009-2013; Polo 2009-2012; Golf Plus 1.6 2009-2011; octavia ambiente 2008-2013; Audi A3 Sportback 2008-2013; golf 2.0 2008-2011; Ibiza Reference 2008-2011; Audi A3 Cab. 2.0 TDI 2007-2013; ALTEA 07> 2006-; LEON 06> 2005-.
