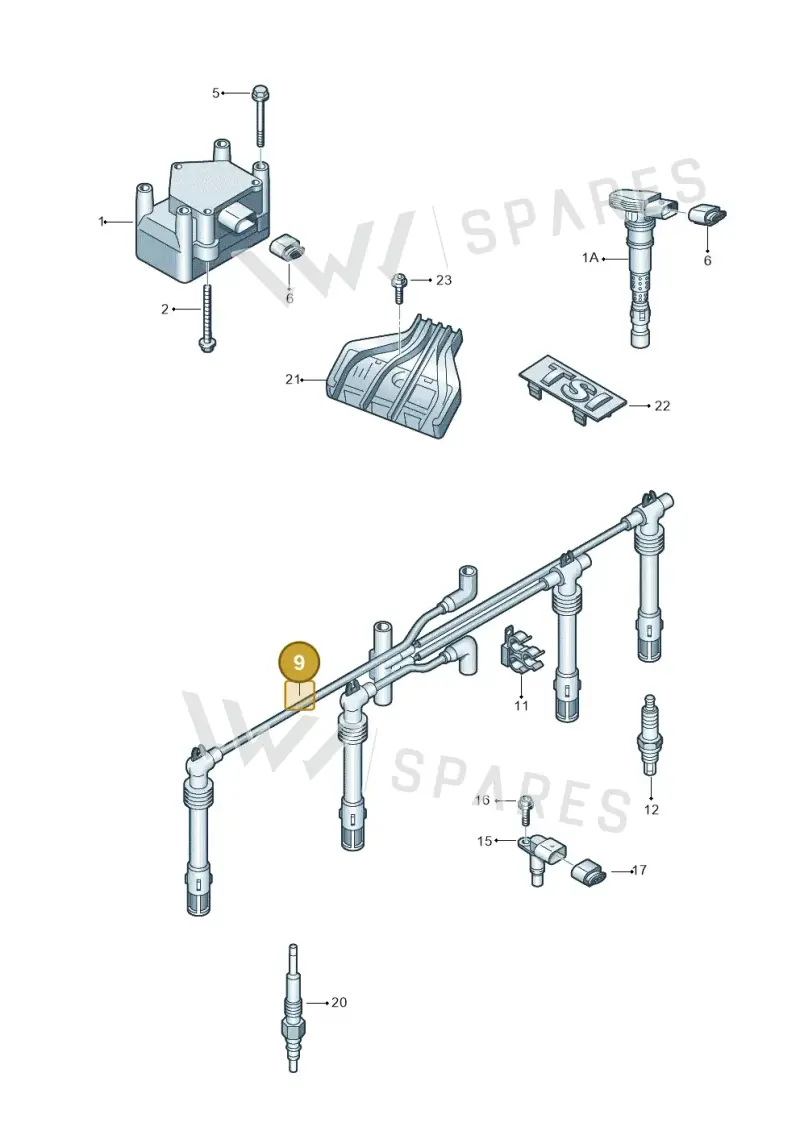

Number 9 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Ignition Lead, part number 03F905430D. This ignition lead transmits high voltage from the ignition coil to the spark plug. It is located in the ignition system assembly. Genuine OEM ignition leads ensure precise voltage delivery and durability for reliable engine operation.
Technical details
- Category
- Ignition
- Country of origin
- Germany
- Customs (HS) code
- 85443000
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 30.55 × 11.78 × 5.95 cm
- Shipping weight
- 0.09 kg
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
13 vehiclesIgnition Lead — locate 03F905430D Volkswagen Ignition Lead | Genuine OEM in the official exploded view and explore the surrounding assembly.
Superseded by 03F905430H — the later replacement part.
This part is marked discontinued by the manufacturer (since 2012-12-01); contact us to check current availability.
Parts in this assembly40
- 1Transform 032905106E
- 1Transform 032905106F
- 1AIgnit Coil 036905715G
- 1AIgnit Coil 04C905110J
- 1AIgnit Coil 04C905110L
- 1AConnector 04C905199E
- 1AIgnit Coil 04E905110K
- 1AConnector 04E905199H
- 2Bolt N10668001
- 6Housing 1J0973724
- 9Igni Leads 03F905409B
- 9Igni Leads 03F905409C
- 9Cable 03F905430E
- 9Cable 03F905430F
- 9Cable 03F905430G
- 9Cable 03F905430H
- 9Cable 03F905430J
- 9Cable 03F905430K
- 9Cable 03F905430L
- 11Bracket 03F905471
- 11Bracket 03F905471C
- 11Bracket 03F905471D
- 11Clip 03F905471B
- 12Spark Plug 03F905600A
- 12Spark Plug 04E905601B
- 12Spark Plug 101905601F
- 12Spark Plug 101905618A
- 12Spark Plug 101905626
- 15Part 030907601E
- 15Sender 03C906433A
- 15Sender 03C906433E
- 15Valve 03C906455A
- 15Sensor 03D906433B
- 15Sender 1K0906433
- 15Sensor 03D906433
- 16Bolt N10700201
- 16Bolt N91096701
- 16Bolt N10451405
- 21Tube 03F905487
- 22Cover 03F103935
Compatible / alternative parts(6)
Vehicle fitment table13
Europe (13)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Rapid | 2012-2022 | 9 | 1 | CBZA,CBZB | TW0 |
| new beetle | 2011-2016 | 9 | 1 | CBZB | TW0 |
| new beetle cabriolet | 2011-2016 | 9 | 1 | CBZB | TW0 |

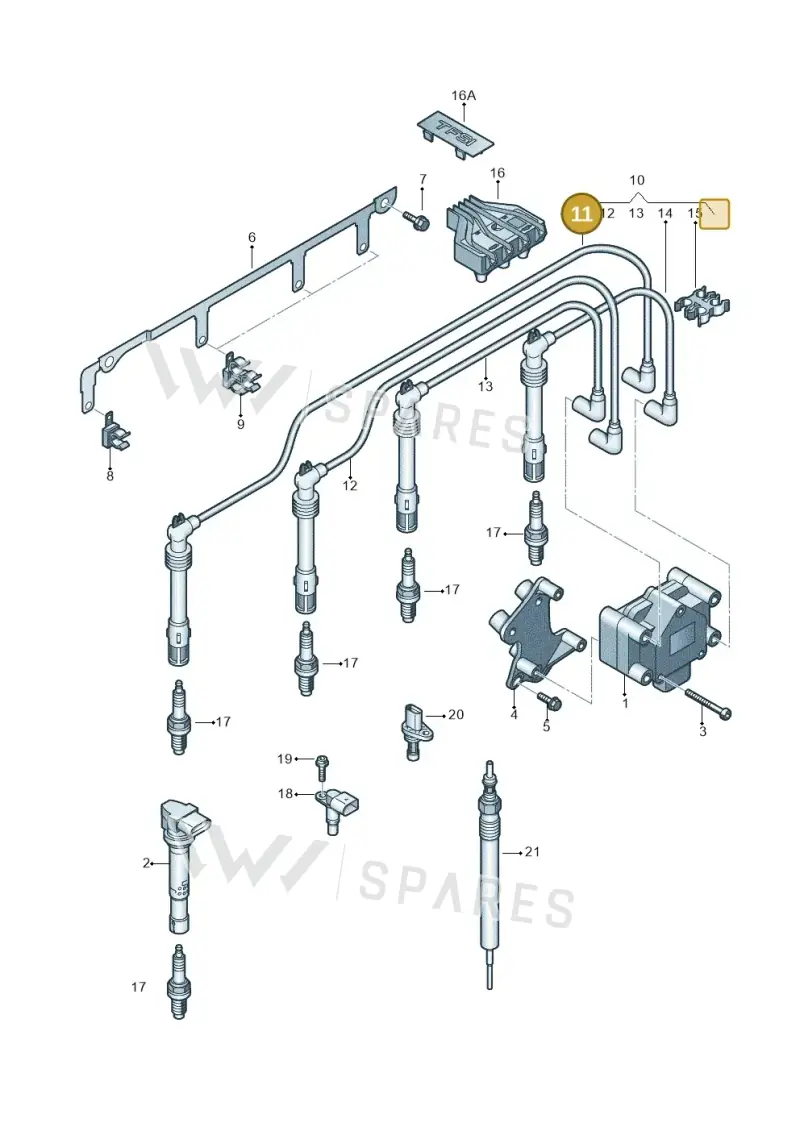

| Ibiza Reference | 2011-2012 | 11 | 1 | CBZB | |
| Roomster | 2010-2015 | 9 | 1 | CBZA,CBZB | TW0 |
| jetta | 2010-2014 | 9 | 1 | CBZB | TW0 |
| Fabia Scout | 2010-2014 | 9 | 1 | CBZA,CBZB | TW0 |
| golf estate | 2009-2013 | 9 | 1 | CBZA,CBZB | TW0 |
| Yeti | 2009-2013 | 9 | 1 | CBZB | TW0 |
| Golf Plus 1.6 | 2009-2011 | 6 | 1 | CBZB,CBZA | |
| octavia ambiente | 2008-2013 | 9 | 1 | CBZB | TW0 |
| Ibiza Reference | 2008-2011 | 11 | 1 | CBZB | |
| ALTEA 07> | 2006- | 9 | 1 | CBZB | TW0 |
Diagrams & fitment data powered by oemdiagrams.com
03F905430D Volkswagen Ignition Lead | Genuine OEM is fitted on: Rapid 2012-2022; new beetle 2011-2016; new beetle cabriolet 2011-2016; Ibiza Reference 2011-2012; Roomster 2010-2015; jetta 2010-2014; Fabia Scout 2010-2014; golf estate 2009-2013; Yeti 2009-2013; Golf Plus 1.6 2009-2011; octavia ambiente 2008-2013; Ibiza Reference 2008-2011; ALTEA 07> 2006-.
