03G131055F Heat Insulation
- 03G131055FThis pageNot stocked
Jun 2007 - 03G131531FCurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

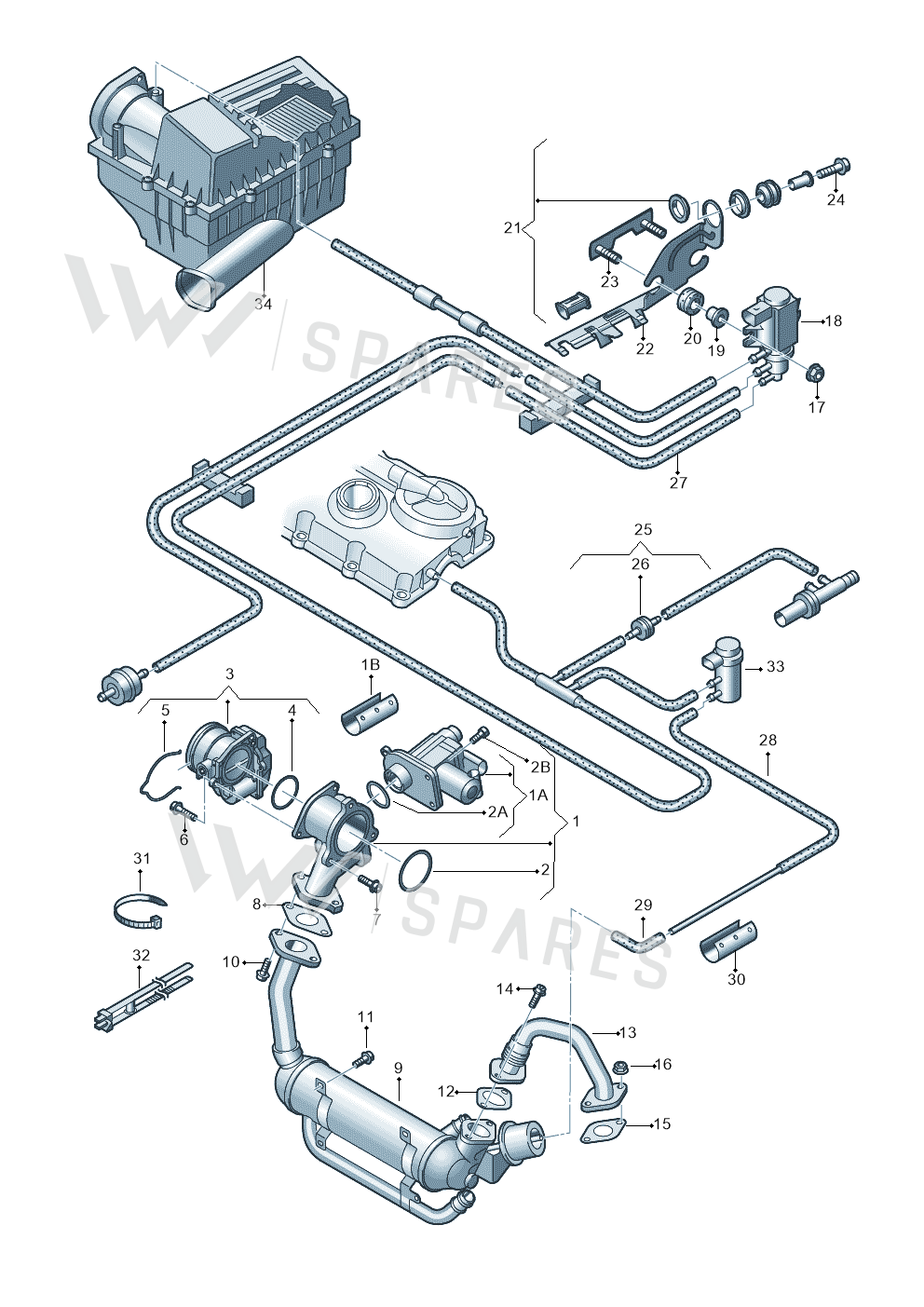

16 vehiclesHeat Insulation — locate Heat Insulation in the official exploded view and explore the surrounding assembly.
Parts in this assembly37
- 1Valve 03G131501N
- 1AValve 03G131502B
- 1BCover 03G131531B
- 2Seal Ring N90927302
- 2ASeal Ring N90062702
- 2BScrew N91084801
- 3Thr Flap 03G128063G
- 4Seal 03L131547B
- 4Seal Ring N90521604
- 5Clip 1K0145769C
- 6Sckt Bolt N10408602
- 7Bolt N10660801
- 8Seal 069131547D
- 9Part 03G131512AA
- 10Screw N91048802
- 11Part N01470213
- 13Pipe 03G131521R
- 15Seal 03G131550
- 16Collar Nut N90200201
- 17Collar Nut N01508210
- 18Converter 1K0906627A
- 19Spacer 052129734
- 20Grommet 046131887
- 21Fixing Set 8P0998801
- 22Bracket 3C0906269A
- 23Plate 046130405
- 25Hose 03G131055G
- 25Hose 03G131055BE
- 26Valve 046905291B
- 27Hose 03G131055AT
- 27Hose 03G131055AR
- 28Hose 03G131055Q
- 29Hose 03G131055J
- 30Heat Insul 03G131531F
- 31Cable Tie 3D0971838N
- 32Binder 4A0820199
- 33Valve 1K0906283A
Vehicle fitment table16
Europe (13)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| passat estate | 2008-2011 | 30, 32 | 1 | |
| GOLF PLUS 08> | 2007- | 33 | 1 | |
| Passat/4Motion 08 | 2007- | 30, 32 | 1 | |
| EOS-Cabriolet-Coupe | 2006- | 33 | 1 | |
| ALTEA 07> | 2006- | 33, 32 | 1 | |
| GOLF PLUS 05> | 2005- | 33 | 1 | |
| JETTA 06> | 2005- | 33, 32 | 1 | D3W,D7N,TG0,TM0 |
| LEON 06> | 2005- | 33, 32 | 1 | |
| Passat/4Motion | 2005-2007 | 30, 32 | 1 | |
| Audi A3/S3/quattro | 2005-2007 | 32 | 1 | TN0 |
| TOURAN | 2005-2006 | 33, 32 | 1 | |
| TOLEDO 05> | 2004- | 33, 32 | 1 | |
| GOLF | 2003-2005 | 33 | 1 |
Other markets (3)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| Golf/Rabbit 08> | 2007- | 32 | 1 | |
| Jetta "USA"05> | 2005- | 33 | TG0 | |
| Golf/Rabbit | 2005-2007 | 33, 32 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Heat Insulation is fitted on: passat estate 2008-2011; GOLF PLUS 08> 2007-; Passat/4Motion 08 2007-; EOS-Cabriolet-Coupe 2006-; ALTEA 07> 2006-; GOLF PLUS 05> 2005-; JETTA 06> 2005-; LEON 06> 2005-; Passat/4Motion 2005-2007; Audi A3/S3/quattro 2005-2007; TOURAN 2005-2006; TOLEDO 05> 2004-; GOLF 2003-2005; Golf/Rabbit 08> 2007-; Jetta "USA"05> 2005-; Golf/Rabbit 2005-2007.
