03G253010X Exhaust Manifold With Turbocharger
- 03G253010XThis pageNot stocked
Dec 2024 - 03G253010Current number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

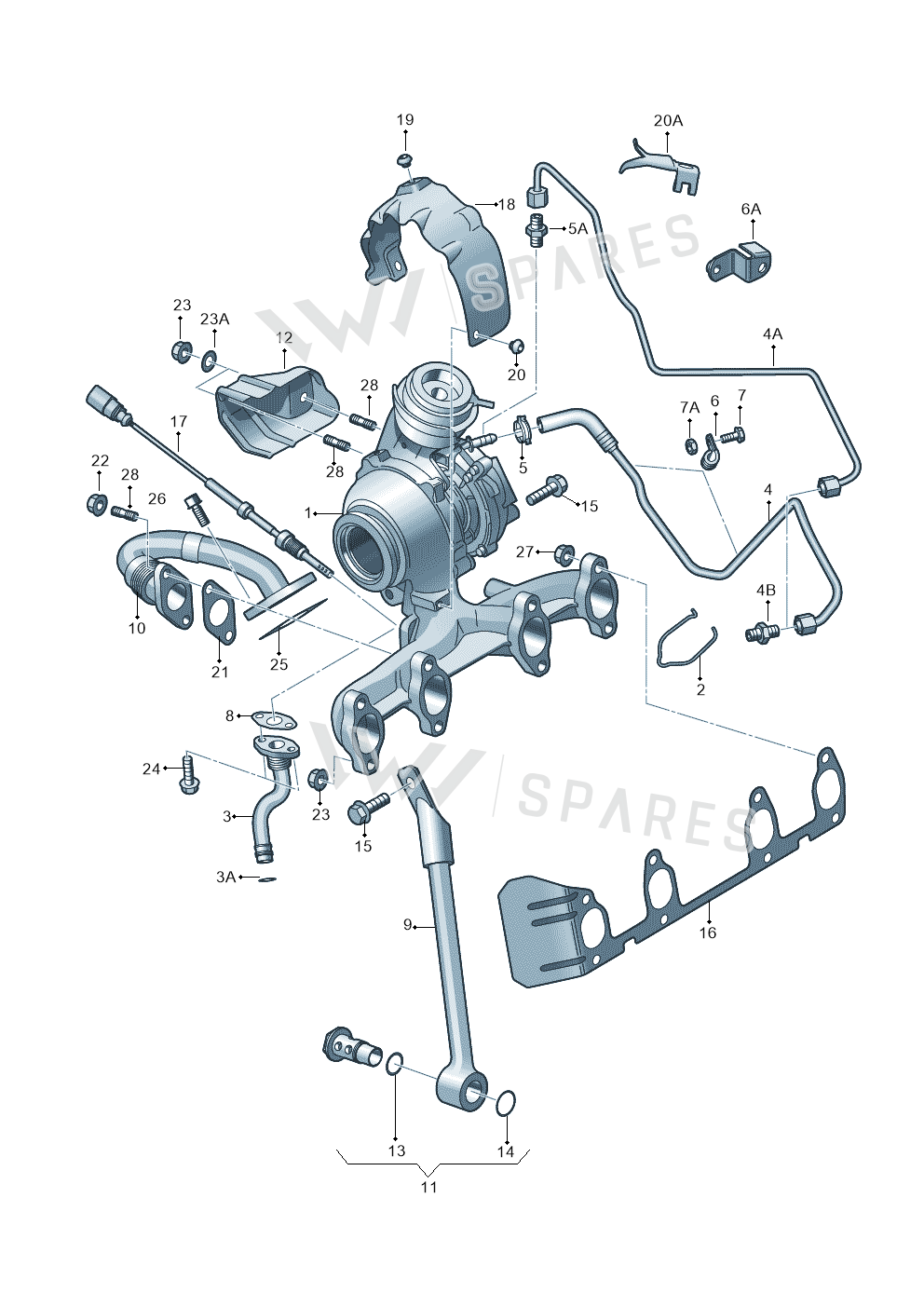

29 vehiclesExhaust Manifold With Turbocharger — locate Exhaust Manifold With Turbocharger in the official exploded view and explore the surrounding assembly.
Parts in this assembly26
- 1Turbo 03G253010
- 2Clip 1J0145769F
- 3Oil Line 03G145736F
- 4Oil Pipe 03G145771R
- 5Clamp N90986501
- 6Clamp N0206096
- 7Bolt N10082912
- 8Seal 03G145757A
- 9Support 03G145535F
- 10Pipe 03G131521R
- 11Screw WHT000494
- 12Heat Sh 03G129969A
- 13Seal Ring N90978801
- 14Seal Ring N90715601
- 15Bolt N90440003
- 16Seal 03G253039A
- 17Sensor 03L906088BS
- 18Heat Sh 03G129969C
- 19Bolt N10680301
- 20Bolt N10673301
- 21Seal 03G131550
- 22Ut Hexagon Nut Self-locking Hexagon Nut N90894601
- 24Bolt N90592703
- 25Seal 069131547D
- 26Screw N90415404
- 28Bolt N0445113
Vehicle fitment table29
Europe (26)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Altea XL Reference | 2010-2013 | 1 | 1 | BMM | D7N |
| Leon Stylance | 2010-2012 | 1 | 1 | D7N | |
| superb comfort | 2008-2013 | 1A | 1 | BMP | TP0 |
| octavia ambiente | 2008-2013 | 1 | 1 | BMM | TM0 |
| passat estate | 2008-2011 | 1A | 1 | BMP | TP0 |
| caddy panel van | 2008-2010 | 1 | 1 | 7GG | |
| Touran 1.9 | 2008-2010 | 1 | 1 | BMM | TM0 |
| GOLF VARIANT 07> | 2007- | 1 | 1 | BMM | D7N |
| GOLF PLUS 08> | 2007- | 1 | 1 | BMM | |
| Passat/4Motion 08 | 2007- | 1A | 1 | BMP | TP0 |
| Audi A3/S3/Sportb./qu. 08 | 2007- | 1 | 1 | BMM | TM0 |
| EOS-Cabriolet-Coupe | 2006- | 1 | 1 | D7N | |
| TOURAN | 2006- | 1 | 1 | BMM | D7N |
| ALTEA 07> | 2006- | 1 | 1 | BMM | TM0 |
| GOLF PLUS 05> | 2005- | 1 | 1 | BMM,BVB | |
| JETTA 06> | 2005- | 1 | 1 | BMM | D7N |
| LEON 06> | 2005- | 1 | 1 | BMM | TM0 |
| Passat/4Motion | 2005-2007 | 1A | 1 | BMP,BVD | TP0 |
| Audi A3/S3/quattro | 2005-2007 | 1 | 1 | BMM | TM0 |
| TOURAN | 2005-2006 | 1 | 1 | BMM | 7GG |
| CADDY | 2004- | 1 | 1 | D7N | |
| TOLEDO 05> | 2004- | 1 | 1 | BMM | TM0 |
| OCTAVIA/COMBI/4X4 04> | 2004- | 1 | 1 | BMM | TM0 |
| ALTEA | 2004-2006 | 1A | 1 | BMM | |
| GOLF | 2003-2005 | 1 | 1 | D7N | |
| DIES.-IND.-MOT.1,9>2,0 | 1990-2007 | 1 | 1 |
Other markets (3)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| DIES.-IND.-MOT.1,9>2,0 08> | 2007- | 1 | 1 | ||
| Golf/Rabbit 08> | 2007- | 1 | 1 | BMM | TM0 |
| Golf/Rabbit | 2005-2007 | 1 | 1 | BMM,BVB | TM0 |
Diagrams & fitment data powered by oemdiagrams.com
Exhaust Manifold With Turbocharger is fitted on: Altea XL Reference 2010-2013; Leon Stylance 2010-2012; superb comfort 2008-2013; octavia ambiente 2008-2013; passat estate 2008-2011; caddy panel van 2008-2010; Touran 1.9 2008-2010; GOLF VARIANT 07> 2007-; GOLF PLUS 08> 2007-; Passat/4Motion 08 2007-; Audi A3/S3/Sportb./qu. 08 2007-; EOS-Cabriolet-Coupe 2006-; TOURAN 2006-; ALTEA 07> 2006-; GOLF PLUS 05> 2005-; JETTA 06> 2005-; LEON 06> 2005-; Passat/4Motion 2005-2007; Audi A3/S3/quattro 2005-2007; TOURAN 2005-2006; CADDY 2004-; TOLEDO 05> 2004-; OCTAVIA/COMBI/4X4 04> 2004-; ALTEA 2004-2006; GOLF 2003-2005; DIES.-IND.-MOT.1,9>2,0 1990-2007; DIES.-IND.-MOT.1,9>2,0 08> 2007-; Golf/Rabbit 08> 2007-; Golf/Rabbit 2005-2007.
