03H109102K Camshaft
- 03H109102GNot stocked
Oct 2009 - 03H109102KThis pageDiscontinued
Nov 2022
Special order item. Delivery time may vary.
About This Part
Discontinued by the manufacturer
This part number has been discontinued and can no longer be ordered. Contact us and we will look for an alternative.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VOLKSWAGEN is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

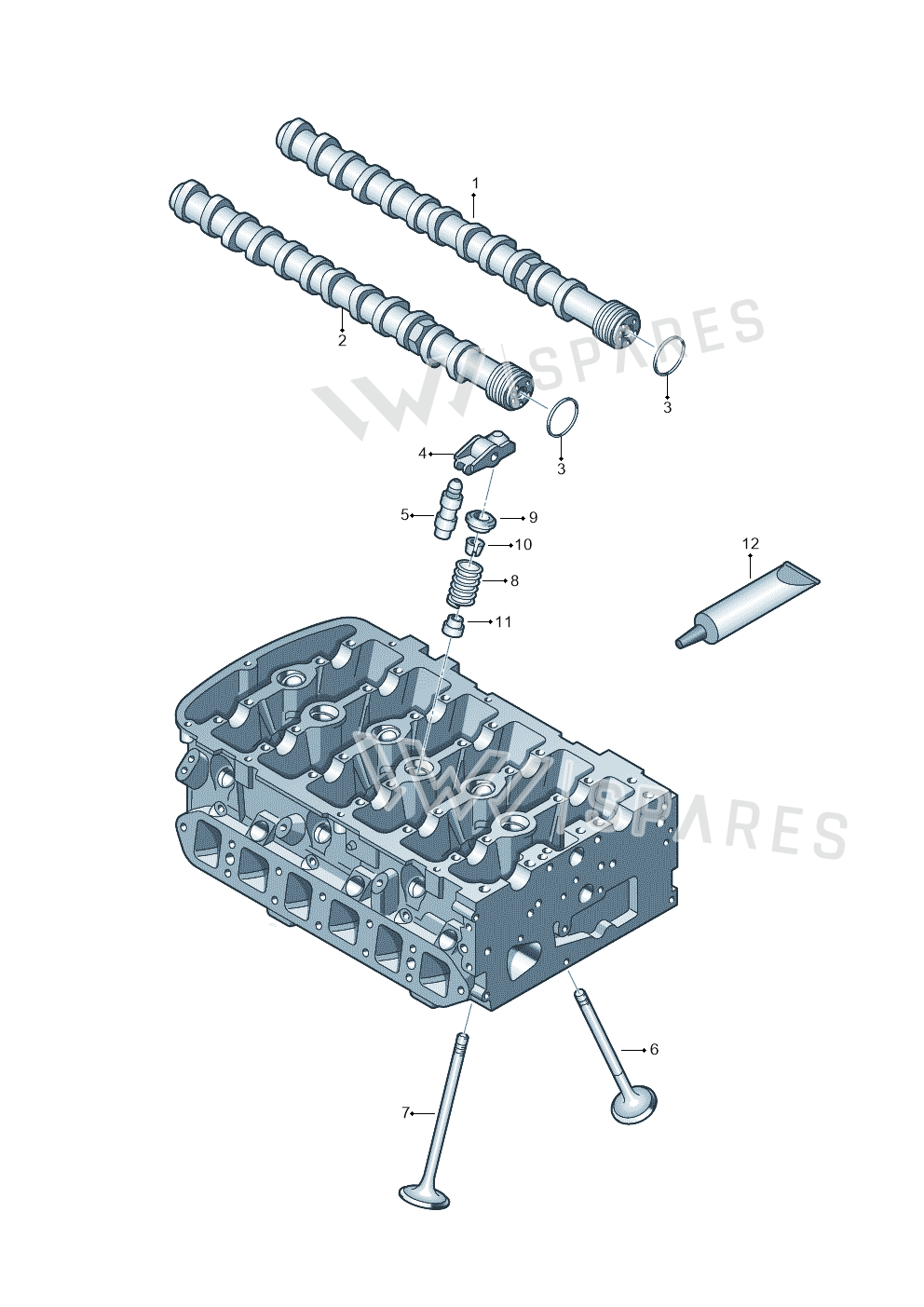

3 vehiclesCamshaft — locate Camshaft in the official exploded view and explore the surrounding assembly.
Parts in this assembly17
- 1Camshaft 03H109101F
- 1Camshaft 03H109101J
- 2Camshaft 03H109102F
- 2Camshaft 03H109102G
- 2Camshaft 03H109102J
- 3Seal Ring 066109345A
- 4Roller Roc 022109417E
- 5Equal Element 022109423C
- 6Valve 022109601H
- 6Valve 022109601G
- 7Valve 022109611P
- 7Valve 022109611N
- 8Spring 03H109623B
- 9Springseat 022109641B
- 10Cotter Pin 036109651A
- 11Seal 036109675A
- 12Paste G052723A2
Vehicle fitment table3
Europe (3)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| passat estate | 2008-2011 | 2 | 1 | AXZ | D6F |
| Passat/4Motion 08 | 2007- | 2 | 1 | AXZ | D6F |
| Passat/4Motion | 2005-2007 | 2 | 1 | AXZ | D6F |
Diagrams & fitment data powered by oemdiagrams.com
Camshaft is fitted on: passat estate 2008-2011; Passat/4Motion 08 2007-; Passat/4Motion 2005-2007.
