03H906036F Injection Valve
- 03H906036ANot stocked
Sep 2016 - 03H906036FThis pageNot stocked
Jan 2021 - 03H906036RNot stocked
May 2023 - 03H906036ABCurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for SKODA is typically 3–8 business days before dispatch.
Handling time for Skoda: 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

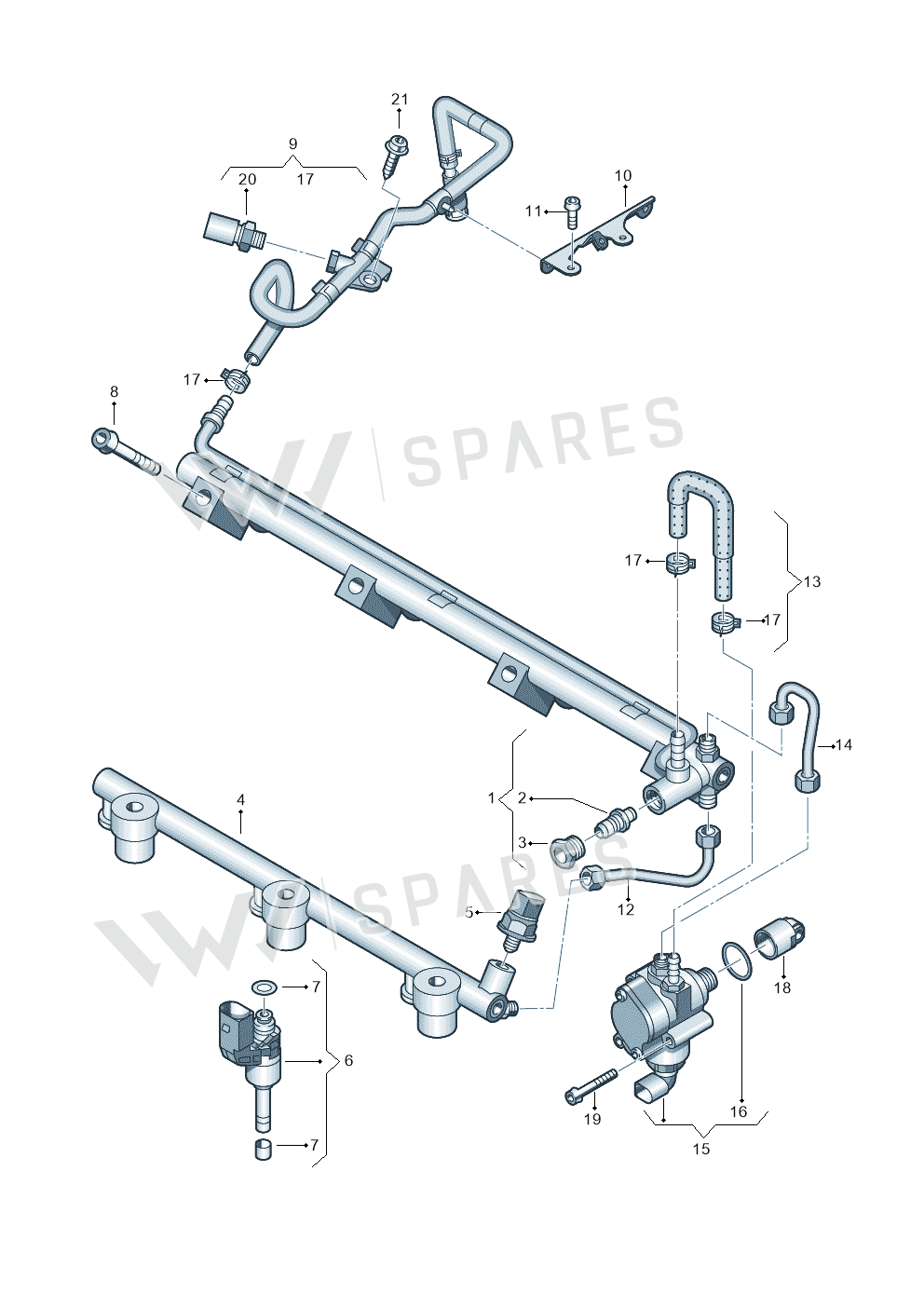

3 vehiclesInjection Valve — locate Injection Valve in the official exploded view and explore the surrounding assembly.
Parts in this assembly28
- 1Rail 03H133316AB
- 2Valve 03C103363H
- 3Screw WHT000435A
- 4Rail 03H133317S
- 5Sensor 06J906051C
- 5Sensor 06J906054L
- 6Valve 03H906036Q
- 6Valve 03H906036R
- 6Valve 03H906036E
- 7Gask Set 03H198149A
- 7Gask Set 03H198149
- 8Screw N10741801
- 9Fuel Line 3QF133987C
- 9Fuel Line 3Q0133986J
- 10Bracket 03H133340D
- 11Bolt N91084402
- 12Fuel Line 03H133321J
- 13Hose 03H133322H
- 14Fuel Line 03H133321L
- 14Fuel Line 03H133321G
- 15Pump 03H127025S
- 16Seal Ring WHT005184
- 17Clamp N90986501
- 17Clamp N91208604
- 18Tappets 03H127307A
- 19Bolt N10622101
- 20Sensor 06H906051K
- 21Bolt N10653201
Vehicle fitment table3
Other markets (3)
| Vehicle | Years | Pos. |
|---|---|---|
| Atlas Cross Sport | 2019-2023 | 6 |
| Atlas | 2016-2023 | 6 |
| New Passat | 2015-2022 | 6 |
Diagrams & fitment data powered by oemdiagrams.com
Injection Valve is fitted on: Atlas Cross Sport 2019-2023; Atlas 2016-2023; New Passat 2015-2022.
