03K131547B Seal
- 03K131547BThis pageNot stocked
Mar 2010 - 03K131547CNot stocked
Aug 2015 - 03L131547NCurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

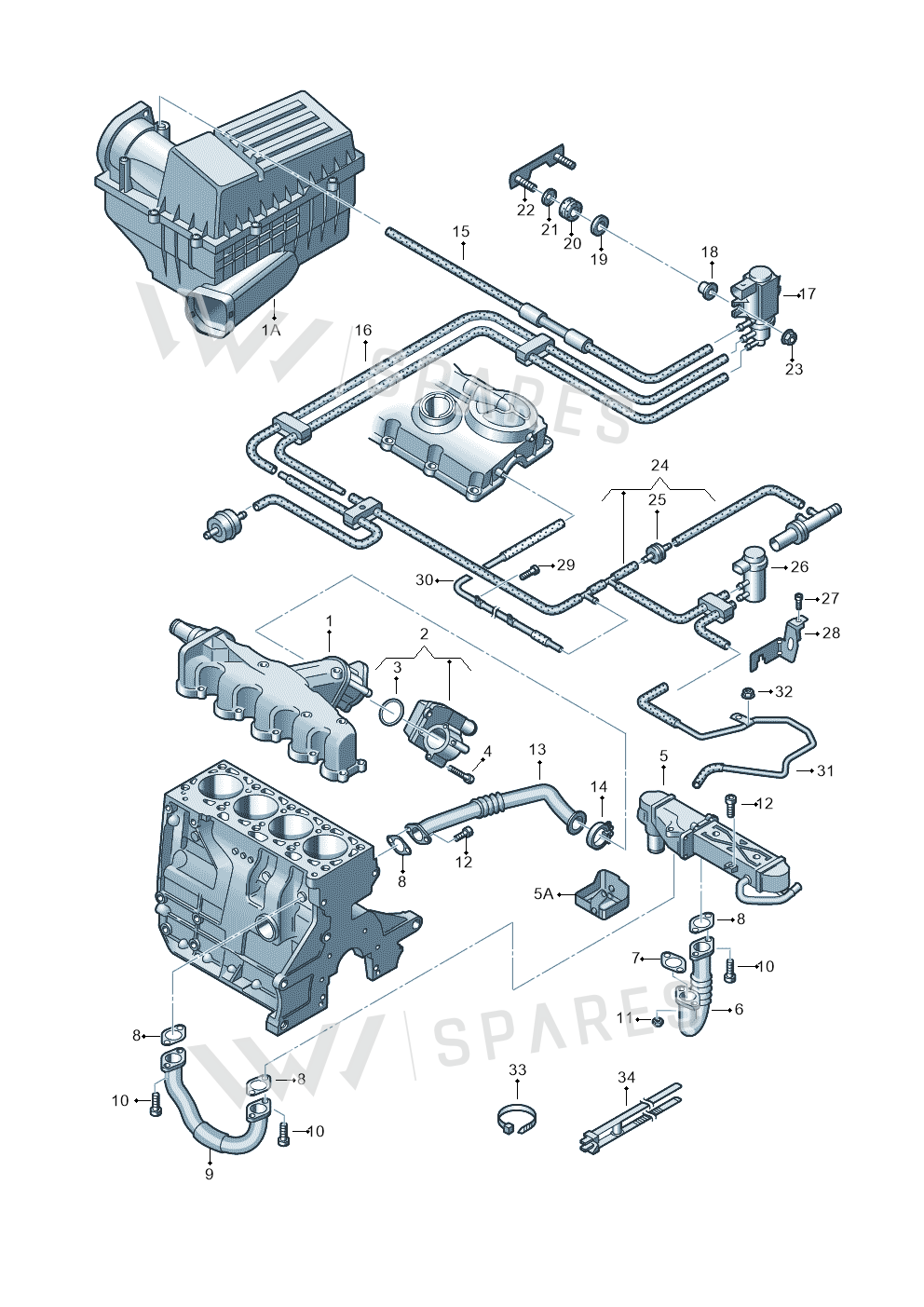

3 vehiclesSeal — locate Seal in the official exploded view and explore the surrounding assembly.
Parts in this assembly46
- 2Thr Flap 03L128063Q
- 2Thr Flap 03L128063R
- 3Seal 03L131547F
- 3Seal 03L131547B
- 4Bolt N10670301
- 5Part 03L131512CF
- 5AHeat Insul 03L131531A
- 6Pipe 03P131521B
- 7Seal 04L131547S
- 8Seal 03K131547C
- 9Pipe 03L131521Q
- 9Pipe 03P131521A
- 10Screw N91032702
- 11Ut Hexagon Nut Self-locking Hexagon Nut N90894601
- 12Part N10196103
- 12Bolt N10405604
- 13Pipe 03L131521R
- 14Clamp 070131548C
- 15Hose 03L131055AC
- 15Hose 03L131055DA
- 16Hose 03L131055AM
- 16Hose 03L131055DB
- 17Converter 1K0906627B
- 18Spacer 1K0906435
- 19Thrustring 1K0906139
- 20Grommet 046131887
- 21Thrustring 1K0906139A
- 22Plate 046130405
- 23Collar Nut N01508210
- 24Hose 03L131055AN
- 24Hose 03L131055DC
- 25Valve 046905291B
- 26Valve 1K0906283A
- 27Bolt N10406504
- 28Retaining 03L131529A
- 28Retaining 03L131529F
- 29Screw N10544703
- 30Pipe 03L131605AD
- 30Pipe 03L131605AE
- 30Pipe 03L131605E
- 30Pipe 03L131605N
- 31Pipe 03L131605J
- 31Hose 03L131605M
- 32Screw N10170303
- 33Cable Tie 3D0971838N
- 34Binder 4A0820199
Vehicle fitment table3
Europe (3)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| Audi A3 Sportback | 2008-2013 | 8 | X | TF3 |
| jetta | 2008-2011 | 8 | 4 | |
| Audi A3 Cab. 2.0 TDI | 2007-2013 | 7 | 2 | TF3 |
Diagrams & fitment data powered by oemdiagrams.com
Seal is fitted on: Audi A3 Sportback 2008-2013; jetta 2008-2011; Audi A3 Cab. 2.0 TDI 2007-2013.
