03L103493AA Breather Line
- 03L103493AAThis pageNot stocked
Aug 2014 - 03L103493ALCurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

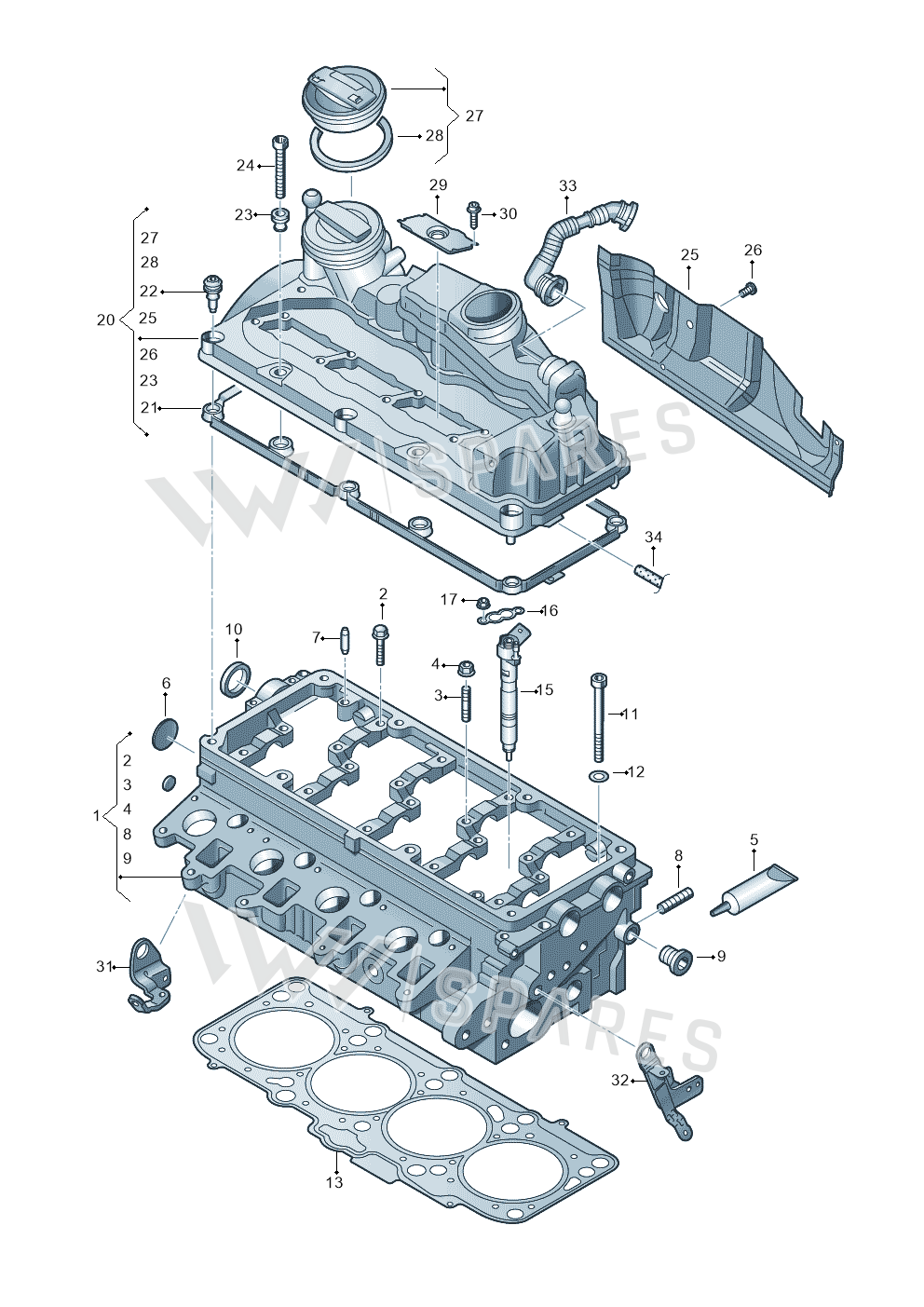

3 vehiclesBreather Line — locate Breather Line in the official exploded view and explore the surrounding assembly.
Parts in this assembly34
- 1Cylinder Head 03L103265X
- 1Cylinder Head 03L103351J
- 2Bolt N10205604
- 3Bolt N91164201
- 4Collar Nut N90446502
- 5Seal D176501A1
- 6Cover 03L103113A
- 7Part 06D103251
- 8Bolt N90188902
- 9Bolt N90281802
- 10Radial Sea 03L103085
- 10Radial Sea 038103085C
- 11Screw WHT002131
- 12Washer N90115701
- 13Seal 03L103383AQ
- 13Seal 03L103383AR
- 13Seal 03L103383AS
- 13Seal 03L103383B
- 13Seal 03L103383
- 15Injector 03L130277A
- 16Plate 059130216C
- 20Cover 03L103469
- 21Seal 03L103483
- 22Bolt 06B103831J
- 23Decoup Ele 057103831B
- 24Screw N91131601
- 25Heat Sh 03L129969D
- 26Bolt N10555702
- 27Cover 06C103485P
- 28Seal 036115111B
- 29Cover 03L103113
- 30Screw N90427502
- 31R Bracket 03L103369S
- 32Eyelet 03L103390N
Vehicle fitment table3
Europe (2)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Golf | 2011-2013 | 33 | 1 | TR4 | |
| golf 2.0 | 2008-2011 | 33 | 1 | CJAA | TR4 |
Other markets (1)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Jetta "USA"05> | 2005- | 26, 33 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Breather Line is fitted on: Golf 2011-2013; golf 2.0 2008-2011; Jetta "USA"05> 2005-.
