Oil Sump exploded parts diagram — Amarok twin cab · 2009-2012, position 19
Exploded view
Amarok twin cab · 2009-2012 · position 19Full diagram ↓
03L103603E

03L103603E Oil Sump

£175.07
£144.69 excl. VAT
Supersession roadforks into 2
  1. 03L103603EThis pageNot stocked
    Sep 2013
  1. 03L103603MCurrent number
  2. N10672701Current number
Availability: No longer supplied under this number

Special order item. Delivery time may vary.

About This Part

Superseded part number

This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.

Order Processing & Delivery

This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VOLKSWAGEN is typically 3–8 business days before dispatch.

Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.

* Delivery times are estimates and may vary based on manufacturer availability and your location.

Verify Vehicle Fitment

To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.

Contact us with your VIN
Genuine OEM Parts
Direct from manufacturer
Secure Ordering
Safe and protected checkout

Parts diagram & fitment

1 vehicle

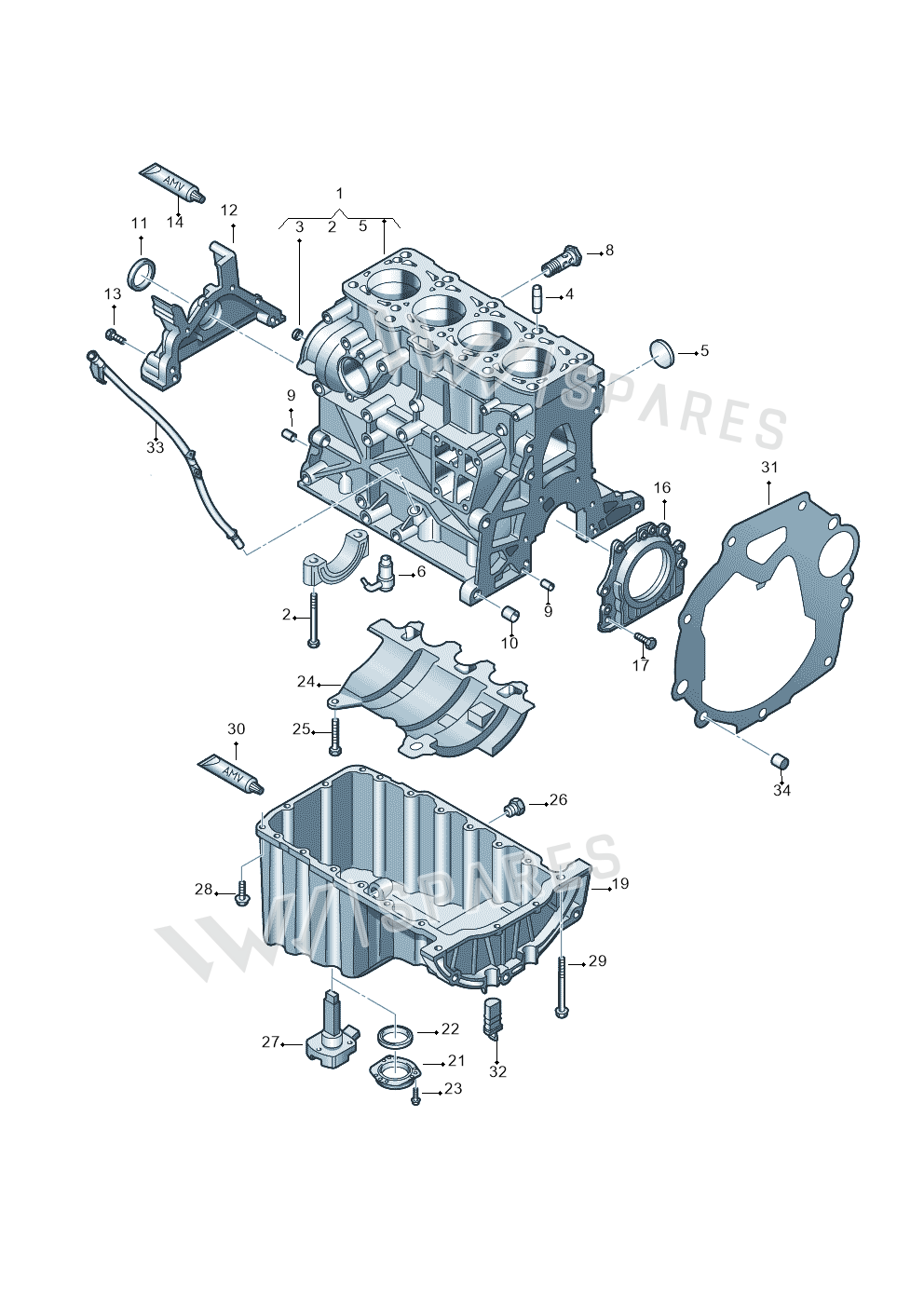

Oil Sump — locate Oil Sump in the official exploded view and explore the surrounding assembly.

Parts in this assembly29
Vehicle fitment table1

Europe (1)

VehicleYearsPos.QtyPR
Amarok twin cab2009-2012191TG9,TN3,TP3,TU4,TV4

Diagrams & fitment data powered by oemdiagrams.com

Oil Sump is fitted on: Amarok twin cab 2009-2012.
