03L109147B Toothed Belt Guard
- 03L109147BThis pageNot stocked
Jan 2012 - 03L109147DCurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for SKODA is typically 3–8 business days before dispatch.
Handling time for Skoda: 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

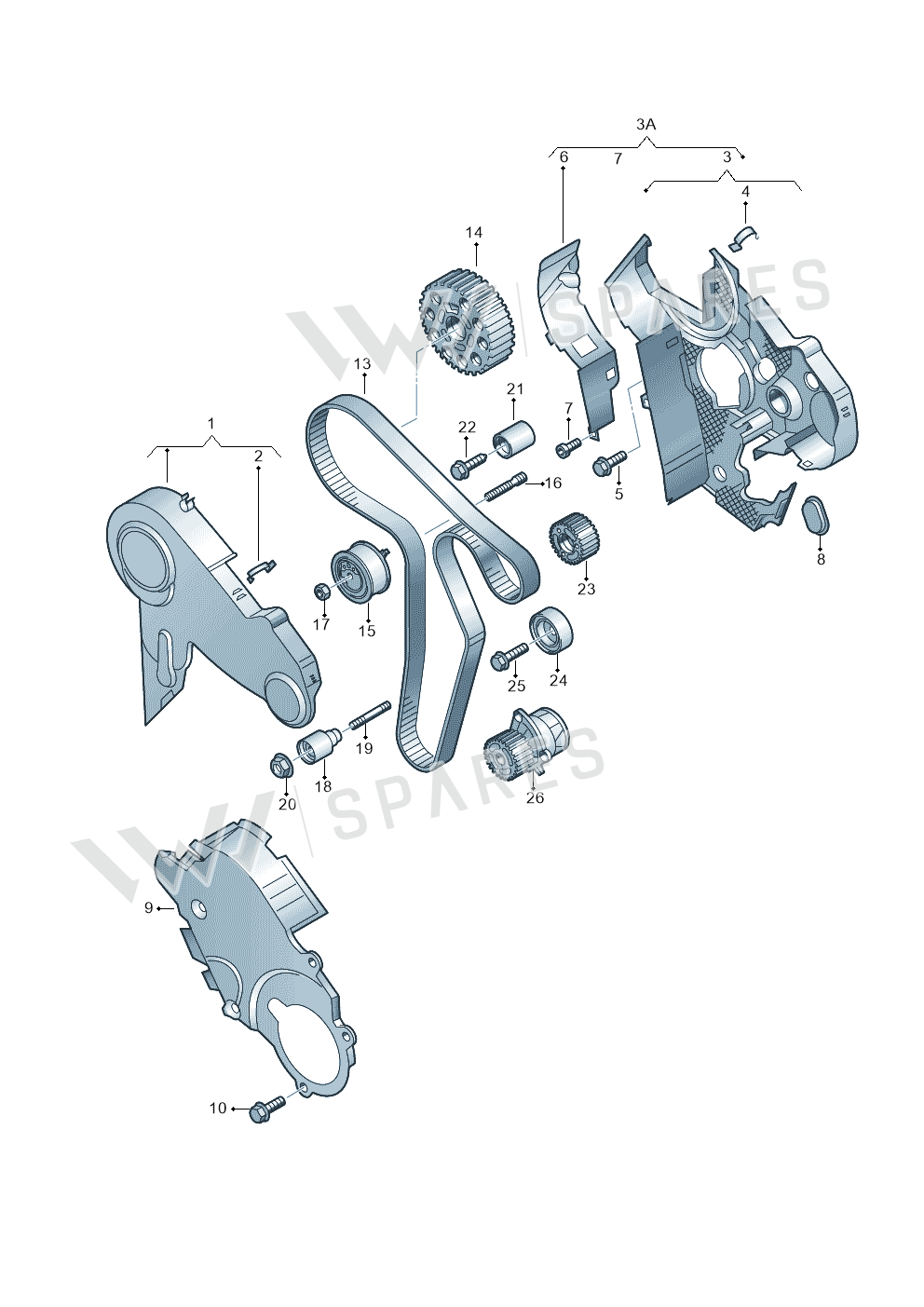

16 vehiclesToothed Belt Guard — locate Toothed Belt Guard in the official exploded view and explore the surrounding assembly.
Parts in this assembly23
- 1Protection 03L109107D
- 2Clip 026109150A
- 3Part 03L109145B
- 5Bolt N10082912
- 6Heat Sh 03L129969K
- 7Bolt N10555702
- 8Bungs 038971904
- 10Bolt N10451405
- 13Tooth Belt 03L109119G
- 14Pulley 03L109111
- 15Tens Roll 03L109243F
- 16Bolt N90905502
- 17Collar Nut 038109454A
- 18Roller 038109244J
- 19Bolt N10444702
- 20Collar Nut N10609206
- 20Collar Nut N10609203
- 21Roller 03L109244D
- 22Bolt N10128110
- 23Pulley 03L130111E
- 24Roller 03L109244J
- 25Bolt N10699901
- 26Pump 03L121011H
Vehicle fitment table16
Europe (16)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| audi a4 av. 2.0 tdi | 2011-2015 | 9 | 1 | TM4 | |
| Ibiza Reference | 2011-2012 | 9 | 1 | CFWA | D28 |
| Leon Stylance | 2010-2012 | 9 | 1 | CAYC,CAYB | D36 |
| golf estate | 2009-2013 | 9 | 1 | ||
| Yeti | 2009-2013 | 9 | 1 | ||
| Golf Plus 1.6 | 2009-2011 | 9 | 1 | D36 | |
| superb comfort | 2008-2013 | 9 | 1 | ||
| octavia ambiente | 2008-2013 | 9 | 1 | ||
| Audi A3 Sportback | 2008-2013 | 9 | 1 | CFFB,CFFA, | CF |
| Passat CC | 2008-2012 | 9 | 1 | TL4 | |
| Audi Q5 qu. 2.0 TDI | 2008-2012 | 9 | 1 | ||
| golf 2.0 | 2008-2011 | 9 | 1 | D36 | |
| passat estate | 2008-2011 | 9 | 1 | D38 | |
| jetta | 2008-2011 | 9 | 1 | ||
| JETTA 06> | 2006- | 9 | 1 | ||
| ALTEA 07> | 2006- | 9 | 1 | CAYC | D38 |
Diagrams & fitment data powered by oemdiagrams.com
Toothed Belt Guard is fitted on: audi a4 av. 2.0 tdi 2011-2015; Ibiza Reference 2011-2012; Leon Stylance 2010-2012; golf estate 2009-2013; Yeti 2009-2013; Golf Plus 1.6 2009-2011; superb comfort 2008-2013; octavia ambiente 2008-2013; Audi A3 Sportback 2008-2013; Passat CC 2008-2012; Audi Q5 qu. 2.0 TDI 2008-2012; golf 2.0 2008-2011; passat estate 2008-2011; jetta 2008-2011; JETTA 06> 2006-; ALTEA 07> 2006-.
