03L115629D Tube For Oil Dipstick
- 03L115629DThis pageNot stocked
Feb 2014 - 03L115629GCurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VOLKSWAGEN is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

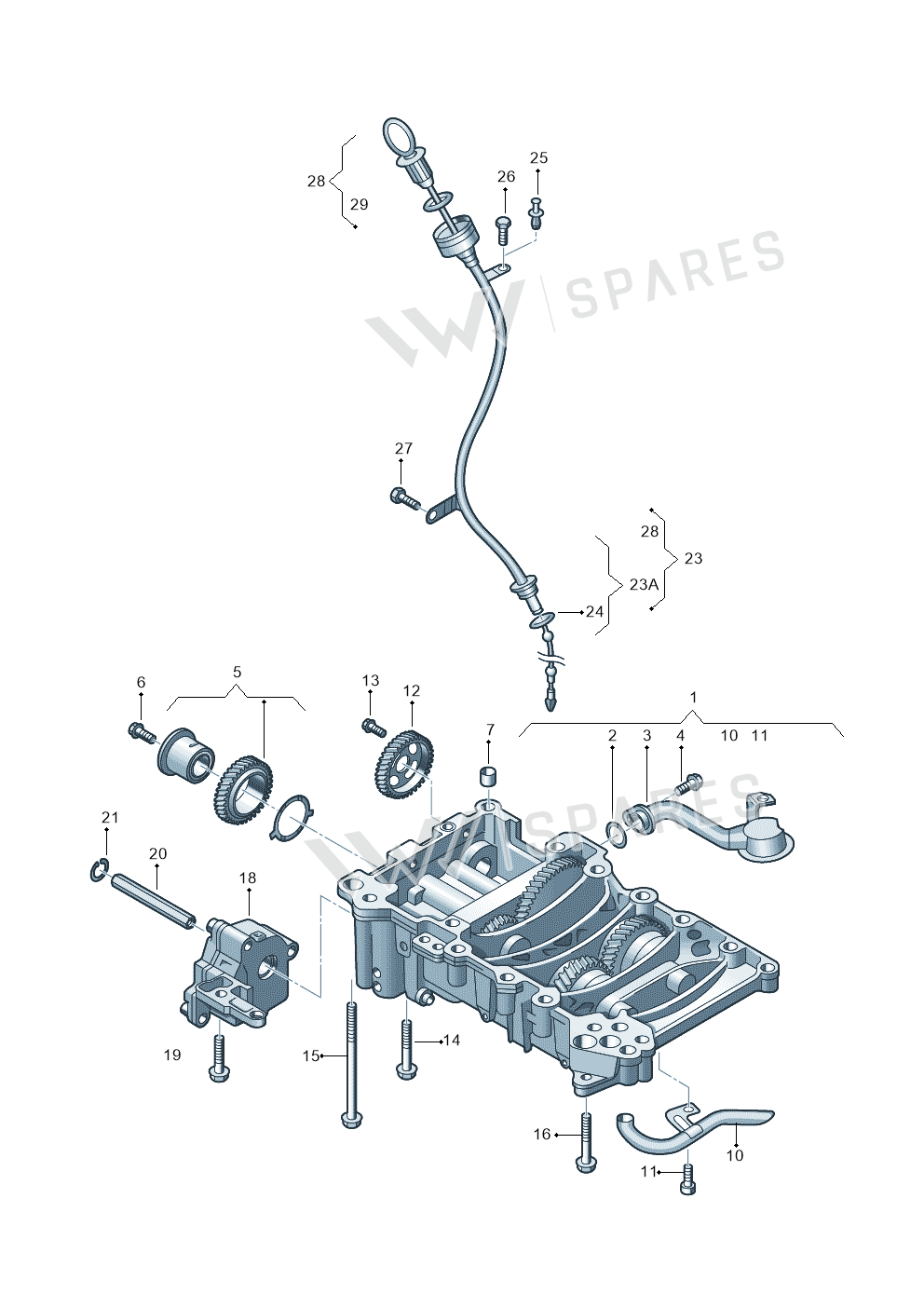

1 vehicleTube For Oil Dipstick — locate Tube For Oil Dipstick in the official exploded view and explore the surrounding assembly.
Parts in this assembly22
- 1Module 03L103295E
- 2Seal Ring WHT005442
- 3Pipe 03L115251A
- 4Screw N10613101
- 5Wheel 03L198488
- 6Bolt N91154101
- 7Sleeve N90820801
- 12Drivewheel 03G103305C
- 13Bolt N91121301
- 14Screw N10601402
- 15Bolt N90977502
- 15Bolt N91123401
- 16Screw N91104601
- 18Oil Pump 03L115105D
- 19Screw N91051101
- 20Follower 03G115281E
- 21Ring N0122942
- 24Seal Ring N90043201
- 25Spring Rivet WHT006106
- 27Bolt N91125101
- 28Oil Dipsti 03L115611AD
- 29Seal Ring WHT001969
Vehicle fitment table1
Europe (1)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| Amarok twin cab | 2009-2012 | 23A | 1 | TG9 |
Diagrams & fitment data powered by oemdiagrams.com
Tube For Oil Dipstick is fitted on: Amarok twin cab 2009-2012.
