03L121121 Pipe Union
Special order item. Delivery time may vary.
About This Part
Discontinued by the manufacturer
This part number has been discontinued and can no longer be ordered. Contact us and we will look for an alternative.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

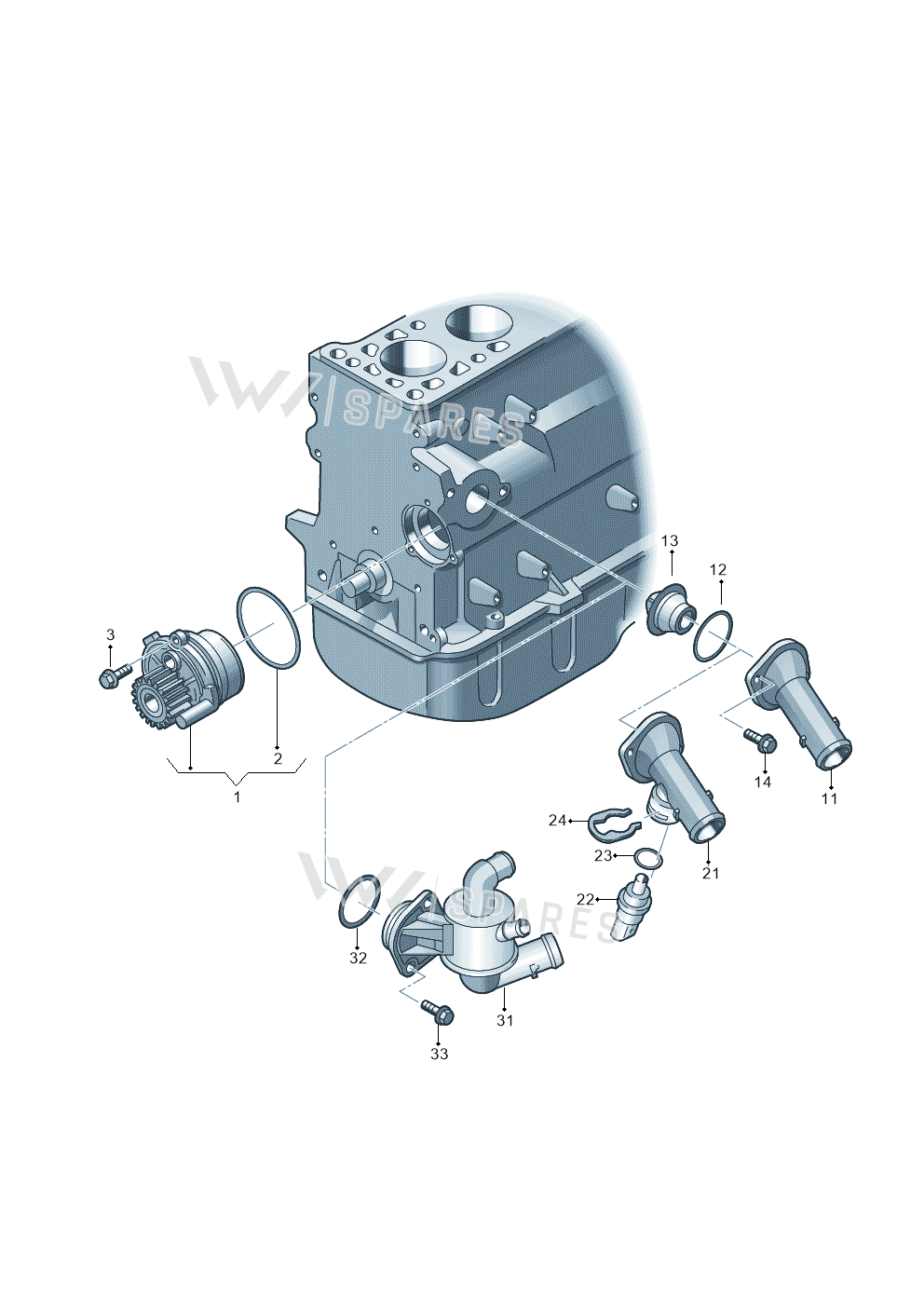

18 vehiclesPipe Union — locate Pipe Union in the official exploded view and explore the surrounding assembly.
Parts in this assembly39
- 1Pump 038121011J
- 1Pump 038121011JX
- 1Pump 038121011K
- 1Pump 038121011KX
- 1Pump 03G121011
- 1Pump 03G121011X
- 1Pump 03L121011X
- 1Pump 03L121011B
- 1Pump 03L121011BX
- 1Pump 03L121011G
- 1Pump 03L121011GX
- 1Pump 045121011H
- 1Pump 045121011HX
- 1Pump 06B121011LX
- 1Pump 06B121011MX
- 1Pump 06B121011Q
- 1Pump 06F121011
- 1Pump 06F121011X
- 1Pump 03L121011
- 1Pump 06B121011M
- 2Seal Ring 038121119
- 2Seal Ring 06A121119
- 2Seal Ring 045121119A
- 2Seal Ring 06B121119D
- 3Bolt N90945002
- 11Connection 038121121D
- 11Part 03L121114B
- 11Connection 06A121121C
- 12Seal Ring 038121119B
- 13Coolant Rg 03G121113
- 13Coolant Rg 03G121113A
- 13Coolant Rg 044121113
- 13Coolant Rg 050121113C
- 21Connection 03L121121A
- 22Sender 06A919501A
- 23Seal Ring N90316801
- 24Spring 032121142
- 31Housing 03L121111AC
- 32Seal Ring 06B121119B
Vehicle fitment table18
Europe (18)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Yeti | 2009-2013 | 11, 81 | 1 | ||
| Golf Plus 1.6 | 2009-2011 | 11 | 1 | TU3 | |
| Scirocco 2.0 | 2008-2014 | 11 | 1 | TG3 | |
| superb comfort | 2008-2013 | 21 | 1 | CBBB | TG3 |
| octavia ambiente | 2008-2013 | 21, 81 | 1 | CEGA | D93 |
| Audi A3 Sportback | 2008-2013 | 8 | 1 | CBAA,CBAB, | TG3 |
| Passat CC | 2008-2012 | 11 | 1 | TG3 | |
| golf 2.0 | 2008-2011 | 11 | 1 | TG3 | |
| passat estate | 2008-2011 | 11 | 1 | CB | AA, |
| EOS 2.0 | 2008-2010 | 11 | 1 | TG3 | |
| GOLF VARIANT 07> | 2007- | 8 | 1 | ||
| Passat/4Motion 08 | 2007- | 8 | 1 | CBAA,CBAB | |
| TIGUAN 08> | 2007- | 11 | 1 | TG3 | |
| Audi TT Coupe/Roadster 08> | 2007- | 8 | 1 | TG3 | |
| Audi A3 Cab. 2.0 TDI | 2007-2013 | 11 | 1 | TG3 | |
| ALTEA 07> | 2006- | 81 | 1 | ||
| LEON 06> | 2005- | 81 | 1 | ||
| OCTAVIA/COMBI/4X4 04> | 2004- | 8, 81 | 1 | CEGA | D93 |
Diagrams & fitment data powered by oemdiagrams.com
Pipe Union is fitted on: Yeti 2009-2013; Golf Plus 1.6 2009-2011; Scirocco 2.0 2008-2014; superb comfort 2008-2013; octavia ambiente 2008-2013; Audi A3 Sportback 2008-2013; Passat CC 2008-2012; golf 2.0 2008-2011; passat estate 2008-2011; EOS 2.0 2008-2010; GOLF VARIANT 07> 2007-; Passat/4Motion 08 2007-; TIGUAN 08> 2007-; Audi TT Coupe/Roadster 08> 2007-; Audi A3 Cab. 2.0 TDI 2007-2013; ALTEA 07> 2006-; LEON 06> 2005-; OCTAVIA/COMBI/4X4 04> 2004-.
