03L121151D Coolant Pipe
- 03L121151Not stocked
Jun 2011 - 03L121151DThis pageNot stocked
Mar 2012 - 03L121151JCurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

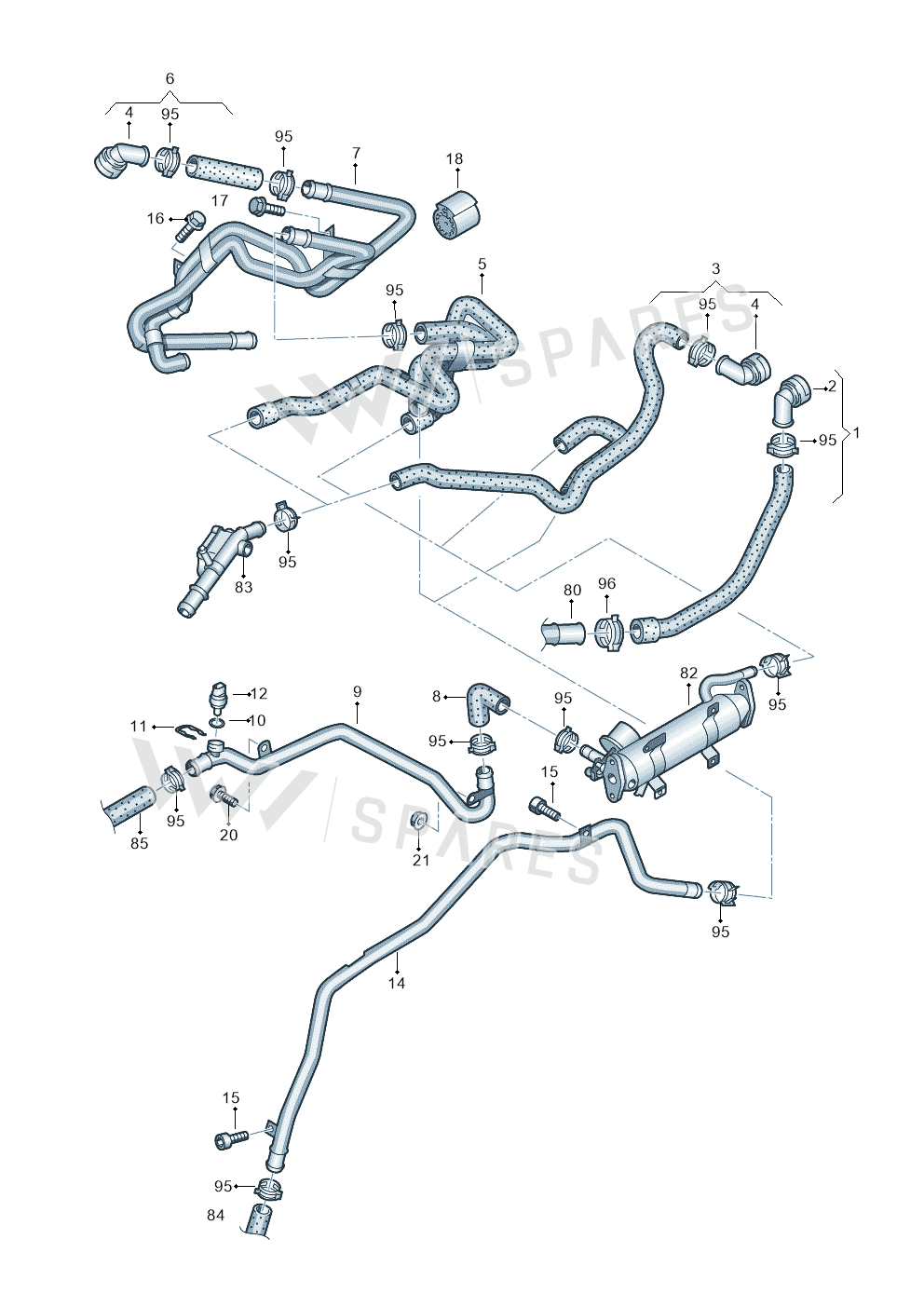

4 vehiclesCoolant Pipe — locate Coolant Pipe in the official exploded view and explore the surrounding assembly.
Parts in this assembly23
- 1Hose 1K0122073GE
- 2Coupl Piece 1K0122291J
- 3Hose 1K0121156DL
- 4Coupl Piece 1K0122291H
- 5Hose 3C0121156BF
- 5Hose 3C0121156BE
- 6Part 3C0122157FD
- 6Part 3C0122157FA
- 7Water Pipe 03L121151C
- 8Hose 5N0121101H
- 9Water Pipe 5N0121065
- 10Seal Ring N90316801
- 11Spring 032121142
- 12Sender 06A919501A
- 14Water Pipe 5N0121070F
- 15Bolt N90898102
- 16Bolt N10009110
- 17Part N90761102
- 17Bolt N10403203
- 18Ring 03L121722
- 21Collar Nut N01508210
- 95Clamp N90687001
- 96Clamp N90687101
Vehicle fitment table4
Europe (4)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| Golf Plus 1.6 | 2009-2011 | 7 | ||
| Passat CC | 2008-2012 | 7 | 1 | G0K,G1A,G1C,TG3,9M5,9M9 |
| golf 2.0 | 2008-2011 | 7 | ||
| passat estate | 2008-2011 | 7 |
Diagrams & fitment data powered by oemdiagrams.com
Coolant Pipe is fitted on: Golf Plus 1.6 2009-2011; Passat CC 2008-2012; golf 2.0 2008-2011; passat estate 2008-2011.
