03L128063K Throttle Valve Control Element
- 03L128063KThis pageNot stocked
Jun 2011 - 03L128063RNot stocked
Dec 2012 - 03L128063ACNot stocked
Feb 2014 - 03L128063TCurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for SKODA is typically 3–8 business days before dispatch.
Handling time for Skoda: 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

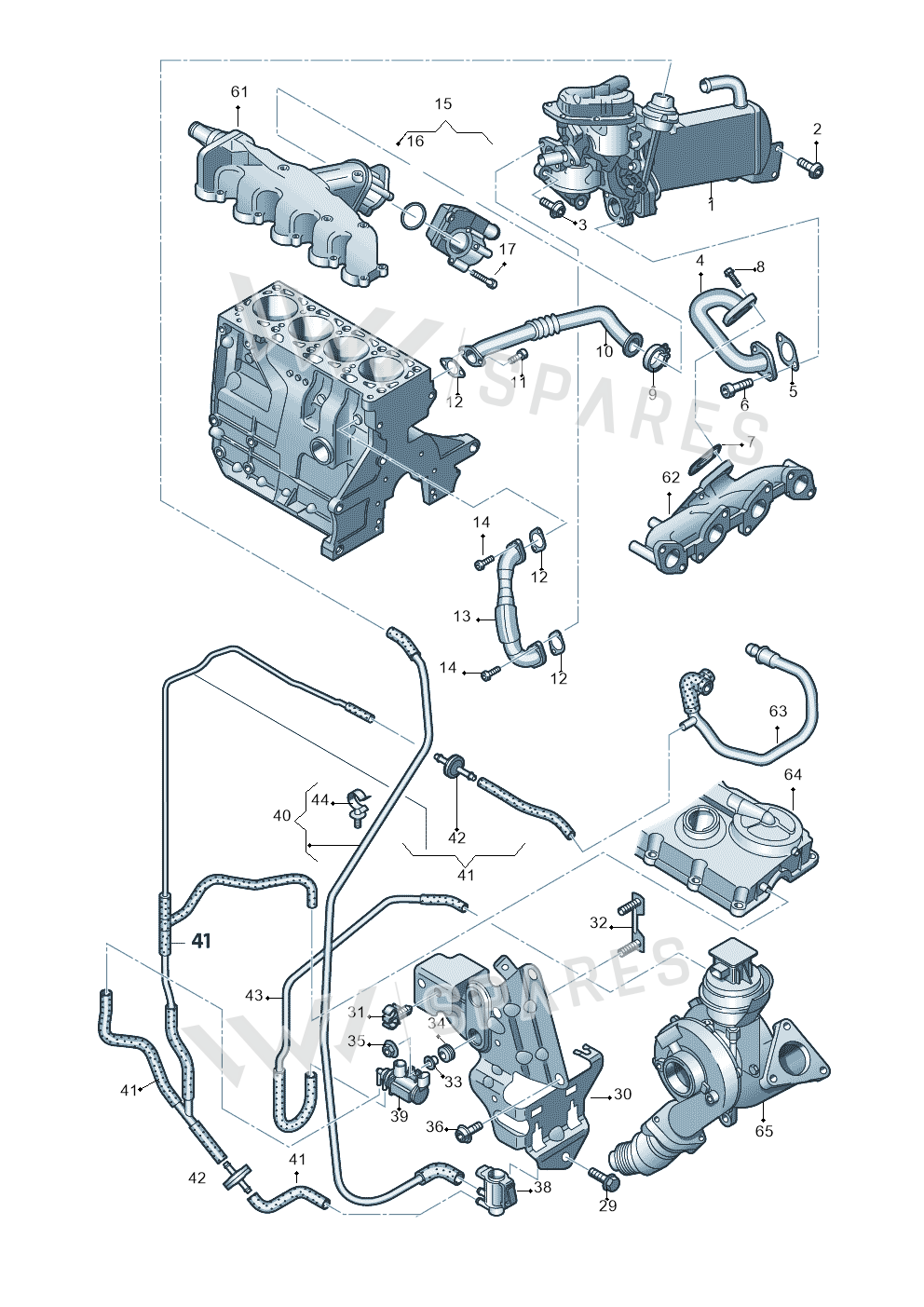

16 vehiclesThrottle Valve Control Element — locate Throttle Valve Control Element in the official exploded view and explore the surrounding assembly.
Parts in this assembly32
- 1Part 03L131512DN
- 2Bolt N10451405
- 3Screw N10734001
- 4Pipe 03L131521J
- 5Seal 04L131547S
- 6Screw N91084201
- 7Seal 03L131547D
- 8Screw N91046101
- 9Clamp 070131548C
- 10Pipe 03L131521R
- 11Bolt N10196103
- 12Seal 03K131547C
- 13Pipe 03L131521D
- 15Thr Flap 03L128063R
- 16Seal 03L131547B
- 17Bolt N10670301
- 29Bolt N10413904
- 30Retainer 03G131133E
- 31Bracket 06B971845
- 32Plate 046130405
- 33Spacer 052129734
- 34Grommet 046131887
- 35Collar Nut N90106304
- 36Screw N90315003
- 38Valve 1K0906283A
- 39Converter 8K0906627
- 40Hose 03L131552AP
- 41Hose 03L131552AS
- 41Hose 03L131552AM
- 42Valve 046905291B
- 43Hose 03L131552AN
- 44Clip 06E133742A
Vehicle fitment table16
Europe (16)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| audi a6 2.0 tdi | 2010-2015 | 15 | 1 | TM4 | |
| Roomster | 2010-2015 | 2 | 1 | ||
| Audi TTS Coupe 2.0 | 2010-2014 | 27 | 1 | TL4 | |
| Fabia Scout | 2010-2014 | 2 | 1 | ||
| Yeti | 2009-2013 | 2 | 1 | ||
| Golf Plus 1.6 | 2009-2011 | 2 | 1 | CFHB,CFHC, | |
| Audi A3 Sportback | 2008-2013 | 27, 2 | 1 | TL4 | |
| superb comfort | 2008-2013 | 2 | 1 | ||
| octavia ambiente | 2008-2013 | 2 | 1 | ||
| Audi Q5 qu. 2.0 TDI | 2008-2012 | 15 | 1 | TM4 | |
| Passat CC | 2008-2012 | 2 | 1 | ||
| golf 2.0 | 2008-2011 | 2 | 1 | CFFA,CFFB, | |
| Ibiza Reference | 2008-2011 | 2 | 1 | ||
| AUDI A4 08> | 2007- | 15 | 1 | TM4 | |
| TIGUAN 08> | 2007- | 2 | 1 | ||
| Audi A3 Cab. 2.0 TDI | 2007-2013 | 27, 2 | 1 | TL4 |
Diagrams & fitment data powered by oemdiagrams.com
Throttle Valve Control Element is fitted on: audi a6 2.0 tdi 2010-2015; Roomster 2010-2015; Audi TTS Coupe 2.0 2010-2014; Fabia Scout 2010-2014; Yeti 2009-2013; Golf Plus 1.6 2009-2011; Audi A3 Sportback 2008-2013; superb comfort 2008-2013; octavia ambiente 2008-2013; Audi Q5 qu. 2.0 TDI 2008-2012; Passat CC 2008-2012; golf 2.0 2008-2011; Ibiza Reference 2008-2011; AUDI A4 08> 2007-; TIGUAN 08> 2007-; Audi A3 Cab. 2.0 TDI 2007-2013.
