03L130755B High Pressure Pump
- 03L130755BThis pageNot stocked
Mar 2009 - 03L130755ENot stocked
Oct 2012 - 03L130755AHNot stocked
Apr 2013 - 03L130755ALCurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

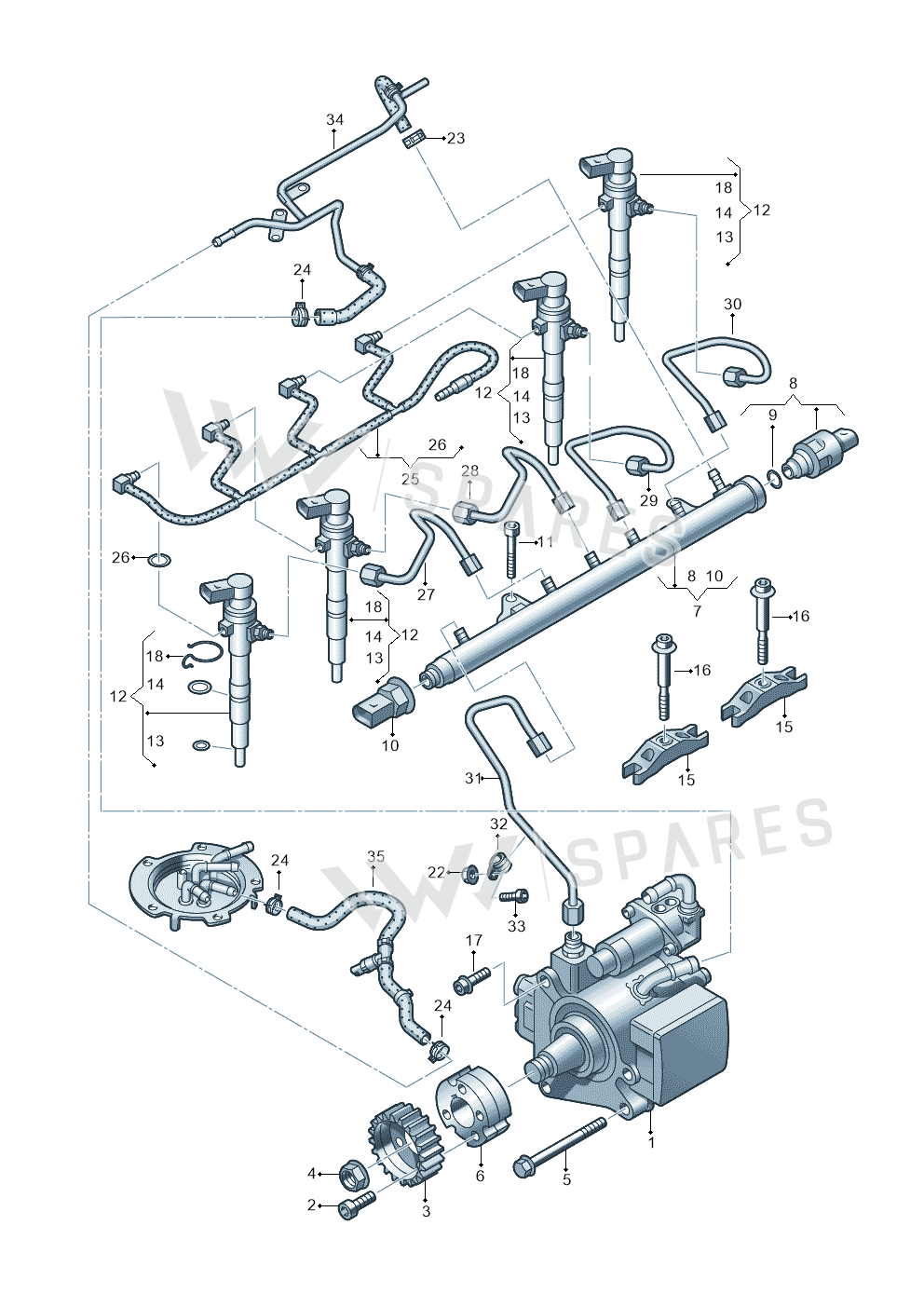

1 vehicleHigh Pressure Pump — locate High Pressure Pump in the official exploded view and explore the surrounding assembly.
Parts in this assembly33
- 1Pump 03L130755AL
- 1Pump 03L130851MX
- 2Screw N91180301
- 3Pulley 03L130111E
- 4Collar Nut WHT002244
- 5Screw N10714501
- 6Part 03L130238A
- 7Rail 03L130089B
- 8Valve 03L130764A
- 9Seal Ring WHT004740
- 10Sensor 03L906051
- 11Screw N91131601
- 12Injector 03L130277S
- 12Injector 03L130277SX
- 13Seal Ring 03L130519
- 14Seal Ring WHT000884
- 15Clamp Piec 03L130216
- 16Screw WHT003187
- 17Screw WHT002494
- 18Clip 03L130447
- 22Collar Nut N01508213
- 23Clamp N90986501
- 24Clamp 4B0422379
- 25Part 03L130235P
- 26Part WHT006492
- 26Part WHT005301
- 27Pipe 03L130301AM
- 29Pipe 03L130301F
- 31Pipe 03L130321F
- 32Clamp N91171101
- 33Screw N10170302
- 34Fuel Line 03L201360R
- 35Pipe 1K0130307BA
Vehicle fitment table1
Europe (1)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| Golf Plus 1.6 | 2009-2011 | 1 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
High Pressure Pump is fitted on: Golf Plus 1.6 2009-2011.
