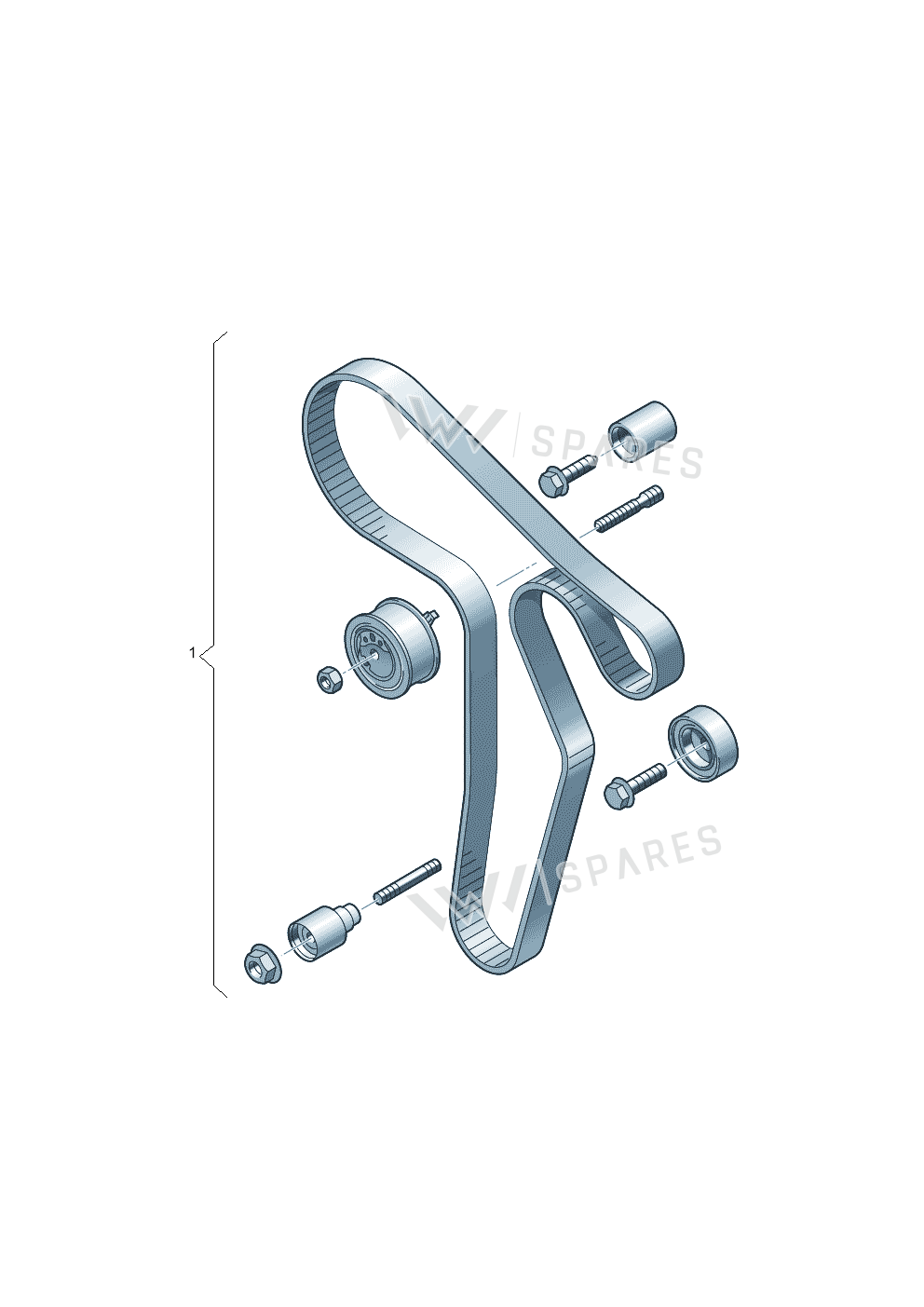

Repair Kit exploded parts diagram — Audi Q5 qu. 2.0 TDI · 2012-2017, position 1
Exploded view
Audi Q5 qu. 2.0 TDI · 2012-2017 · position 1Full diagram ↓
03L198119B

03L198119B Repair Kit

£192.70
£159.26 excl. VAT

This is a catalog item (special order). Delivery time may vary.

Availability: Available to order

Special order item. Delivery time may vary.

About This Part

Available for Purchase

This part is available to order directly from the manufacturer. While it's not currently in our warehouse, we can source it for you and have it shipped to your location.

Order Processing & Delivery

This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for SKODA is typically 3–8 business days before dispatch.

Handling time for Skoda: 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.

* Delivery times are estimates and may vary based on manufacturer availability and your location.

Verify Vehicle Fitment

To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.

Contact us with your VIN
Genuine OEM Parts
Direct from manufacturer
Secure Ordering
Safe and protected checkout

Parts diagram & fitment

24 vehicles

Repair Kit — locate Repair Kit in the official exploded view and explore the surrounding assembly.

Vehicle fitment table24

Europe (24)

VehicleYearsPos.QtyRemarkPR
Audi Q5 qu. 2.0 TDI2012-201711
Audi A5 Sportback2011-201711TM4
Audi A5 Cabrio 2.02011-201711TM4
Crafter 35 panel2011-201621CKT
audi a4 av. 2.0 tdi2011-201511TM4
Caddy Maxi Kombi2010-201541CAYE,CAYD,
Audi A1 Sportback2010-201511CAYC,CAYBTF3
Roomster2010-201511D
Altea XL Reference2010-201321D
Polo2009-201441CFWA
Polo2009-201241CFWA
transp. caravelle2009-201111CAAA,CAAB,
transp. dropside2009-201141CAAA,CAAB,
California Camper2009-201111CAAB,CAAC,
Audi A4 Av. Allroad2008-201611TM4
Scirocco 2.02008-201411CFHB,CFHC,
Audi A3 Sportback2008-201311CFFB,
Passat CC2008-201211CFFA,CFFB,
Audi Q5 qu. 2.0 TDI2008-201211
passat estate2008-201141CAYCD38
jetta2008-201121
AUDI A4 08>2007-11
Audi A3 Cab. 2.0 TDI2007-201311D
JETTA 06>2006-21CAYC

Diagrams & fitment data powered by oemdiagrams.com

Repair Kit is fitted on: Audi Q5 qu. 2.0 TDI 2012-2017; Audi A5 Sportback 2011-2017; Audi A5 Cabrio 2.0 2011-2017; Crafter 35 panel 2011-2016; audi a4 av. 2.0 tdi 2011-2015; Caddy Maxi Kombi 2010-2015; Audi A1 Sportback 2010-2015; Roomster 2010-2015; Altea XL Reference 2010-2013; Polo 2009-2014; Polo 2009-2012; transp. caravelle 2009-2011; transp. dropside 2009-2011; California Camper 2009-2011; Audi A4 Av. Allroad 2008-2016; Scirocco 2.0 2008-2014; Audi A3 Sportback 2008-2013; Passat CC 2008-2012; Audi Q5 qu. 2.0 TDI 2008-2012; passat estate 2008-2011; jetta 2008-2011; AUDI A4 08> 2007-; Audi A3 Cab. 2.0 TDI 2007-2013; JETTA 06> 2006-.
