03L253010C Exhaust Manifold With Turbocharger
- 03L253019ANot stocked
Nov 2007 - 03L253019TNot stocked
Aug 2008 - 03L253019JNot stocked
Jan 2009 - 03L253016FNot stocked
May 2010 - 03L253010CThis pageNot stocked
Jul 2010 - 03L253056ACurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

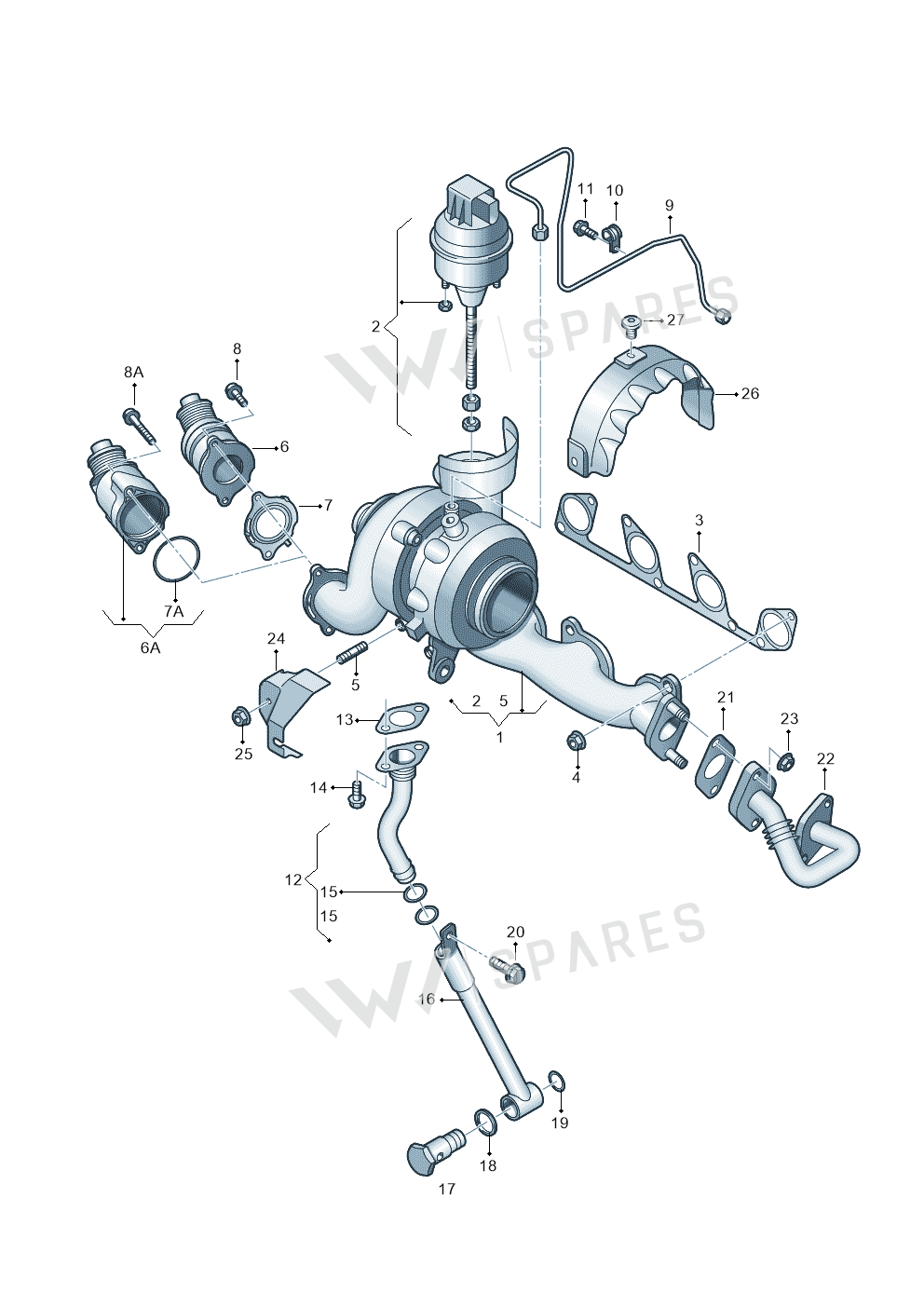

9 vehiclesExhaust Manifold With Turbocharger — locate Exhaust Manifold With Turbocharger in the official exploded view and explore the surrounding assembly.
Parts in this assembly29
- 1Part 03L253056AX
- 1Part JZA253056AX
- 1Part 03L253056A
- 2Repair Kit 03L198716L
- 3Seal 03G253039
- 4Ut Hexagon Nut Self-locking Hexagon Nut N90894601
- 5Bolt WHT002664
- 6Damper 03L131111E
- 6ADamper 03L131111G
- 7Seal 03L145757A
- 8Part N10660801
- 8APart N91117502
- 9Oil Pipe 03L145771B
- 10Clamp N0206096
- 11Bolt N10156307
- 12Oil Line 03G145736F
- 13Seal 03G145757A
- 14Bolt N90592705
- 15Seal Ring WHT001965
- 16Support 03G145535F
- 17Screw WHT000494
- 18Seal Ring N90978801
- 19Seal Ring N90715601
- 20Bolt N90440003
- 21Seal 03L131547D
- 23Bolt N0445145
- 24Heat Sh 03L129969H
- 26Heat Sh 03L129969A
- 27Bolt N10680301
Vehicle fitment table9
Europe (9)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Golf Plus 1.6 | 2009-2011 | 1 | 1 | ||
| Scirocco 2.0 | 2008-2014 | 1 | 1 | CBDB | TU3 |
| Passat CC | 2008-2012 | 1 | 1 | CBAA,CBAB, | D91,D94,D92 |
| golf 2.0 | 2008-2011 | 1 | 1 | CBAA,CBAB, | D91,D94,D96 |
| passat estate | 2008-2011 | 1 | 1 | CBAA,CBAB | D91,D94 |
| EOS 2.0 | 2008-2010 | 1 | 1 | TG3 | |
| Passat/4Motion 08 | 2007- | 1 | 1 | ||
| TIGUAN 08> | 2007- | 1 | 1 | D91,D94 | |
| Audi A3 Cab. 2.0 TDI | 2007-2013 | 1 | 1 | TG3 |
Diagrams & fitment data powered by oemdiagrams.com
Exhaust Manifold With Turbocharger is fitted on: Golf Plus 1.6 2009-2011; Scirocco 2.0 2008-2014; Passat CC 2008-2012; golf 2.0 2008-2011; passat estate 2008-2011; EOS 2.0 2008-2010; Passat/4Motion 08 2007-; TIGUAN 08> 2007-; Audi A3 Cab. 2.0 TDI 2007-2013.
