03L253016H Exhaust Manifold With Turbocharger
- 03L253016ANot stocked
May 2009 - 03L253016HThis pageNot stocked
Mar 2012 - 03L253056DNot stocked
Nov 2014 - 03L253056RCurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for SEAT is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

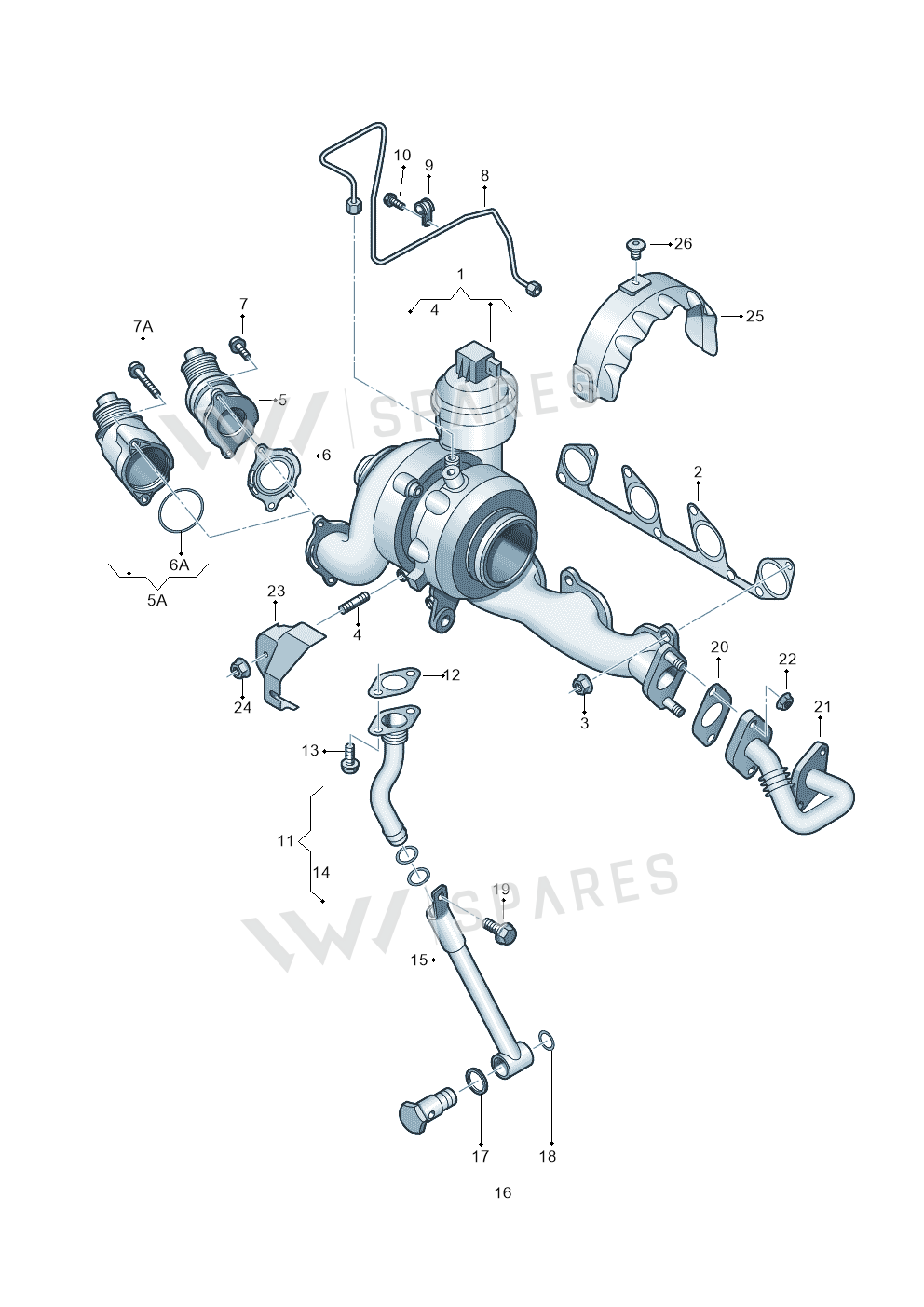

3 vehiclesExhaust Manifold With Turbocharger — locate Exhaust Manifold With Turbocharger in the official exploded view and explore the surrounding assembly.
Parts in this assembly20
- 1Turbo 03L253016HX
- 1Turbo 03L253056D
- 2Seal 03L253039E
- 3Ut Hexagon Nut Self-locking Hexagon Nut N90894601
- 5ADamper 03L131111G
- 6ASeal Ring 03L145117
- 7AScrew N91117502
- 8Oil Pipe 03L145771C
- 9Clamp N91156901
- 10Bolt N91096603
- 11Oil Line 03L145736D
- 12Seal 03L145757M
- 13Bolt N90592705
- 15Support 03L145535D
- 16Screw WHT005635A
- 16Screw WHT003496
- 19Bolt N90440003
- 23Heat Sh 03L129969AC
- 24Bolt N10680303
- 25Heat Sh 03L129969A
Vehicle fitment table3
Europe (3)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| Audi A1 Sportback | 2010-2015 | 1 | 1 |
| Polo | 2009-2014 | 1 | 1 |
| Polo | 2009-2012 | 1 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Exhaust Manifold With Turbocharger is fitted on: Audi A1 Sportback 2010-2015; Polo 2009-2014; Polo 2009-2012.
