03L253019K Exhaust Manifold With Turbocharger
- 03L253019MNot stocked
Sep 2008 - 03L253019KThis pageNot stocked
Mar 2009 - 03L253016GNot stocked
May 2010 - 03L253010DNot stocked
Jul 2010 - 03L253056CDiscontinued
Mar 2026
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

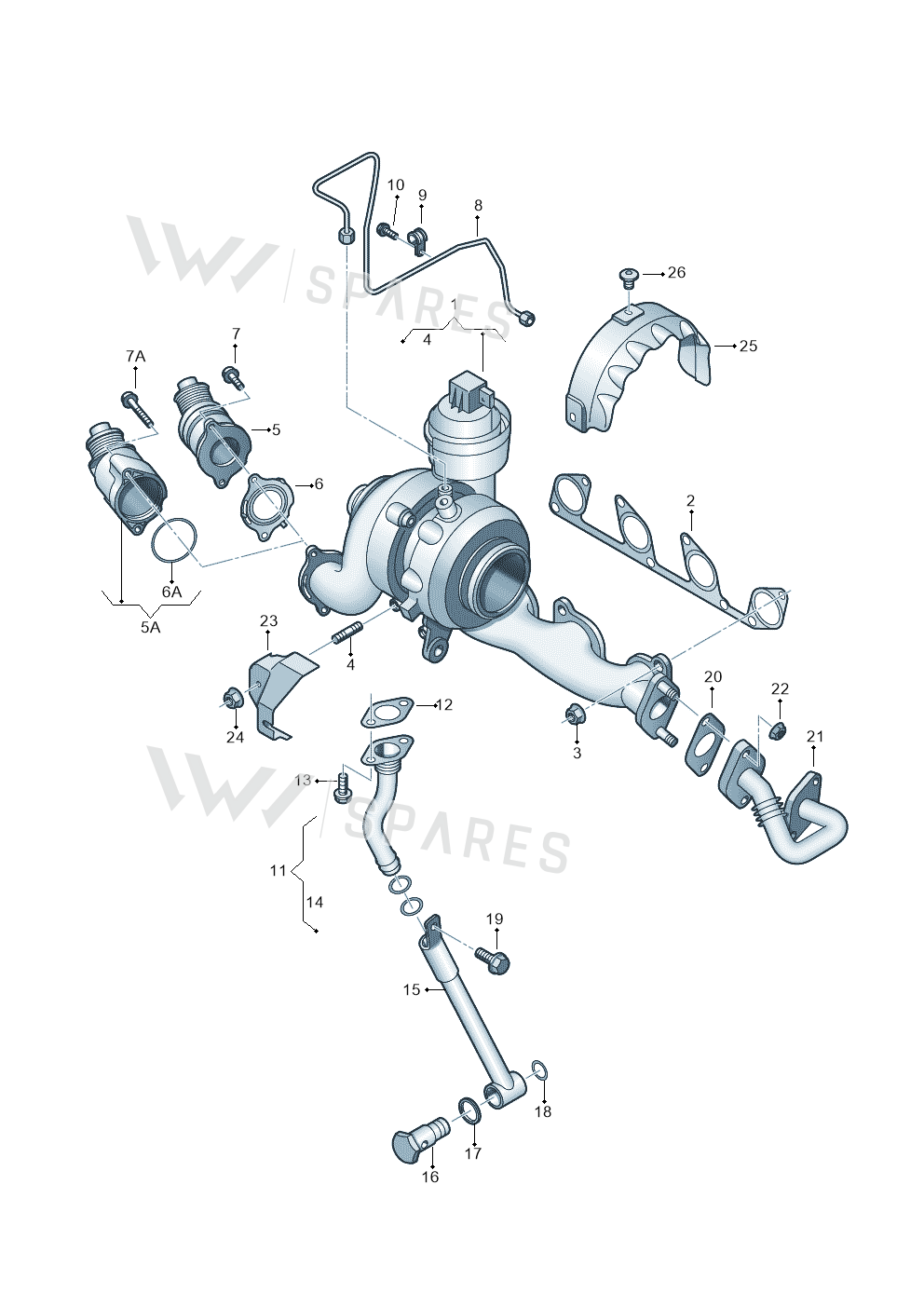

3 vehiclesExhaust Manifold With Turbocharger — locate Exhaust Manifold With Turbocharger in the official exploded view and explore the surrounding assembly.
Parts in this assembly29
- 1Part 03L253056AX
- 1Part 03L253056C
- 1Part 03L253056CX
- 1Part 03L253056A
- 2Seal 03L253039B
- 3Ut Hexagon Nut Self-locking Hexagon Nut N90894601
- 4Bolt WHT002664
- 5Part 03L131111E
- 5APart 03L131111G
- 6Seal 03L145757A
- 6APart 03L145117
- 7Bolt N10660801
- 7AScrew N91117502
- 8Oil Pipe 03L145771B
- 9Clamp N0206096
- 10Bolt N10156307
- 11Oil Line 03G145736F
- 12Seal 03L145757M
- 13Bolt N90592705
- 14Seal Ring WHT001965
- 15Support 03G145535F
- 16Screw WHT000494
- 17Seal Ring N90978801
- 18Seal Ring N90715601
- 19Bolt N90440003
- 20Seal 038131547A
- 23Heat Sh 03L129969H
- 25Heat Sh 03L129969A
- 26Bolt N10680303
Vehicle fitment table3
Europe (3)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Audi A3 Sportback | 2008-2013 | 1 | 1 | CBBB | TG3 |
| jetta | 2008-2011 | 1 | 1 | ||
| Audi TT Coupe/Roadster 08> | 2007- | 1 | 1 | TG3 |
Diagrams & fitment data powered by oemdiagrams.com
Exhaust Manifold With Turbocharger is fitted on: Audi A3 Sportback 2008-2013; jetta 2008-2011; Audi TT Coupe/Roadster 08> 2007-.
