03N131547 Seal
- 03N131547This pageNot stocked
May 2017 - 059145865CCurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for SKODA is typically 3–8 business days before dispatch.
Handling time for Skoda: 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

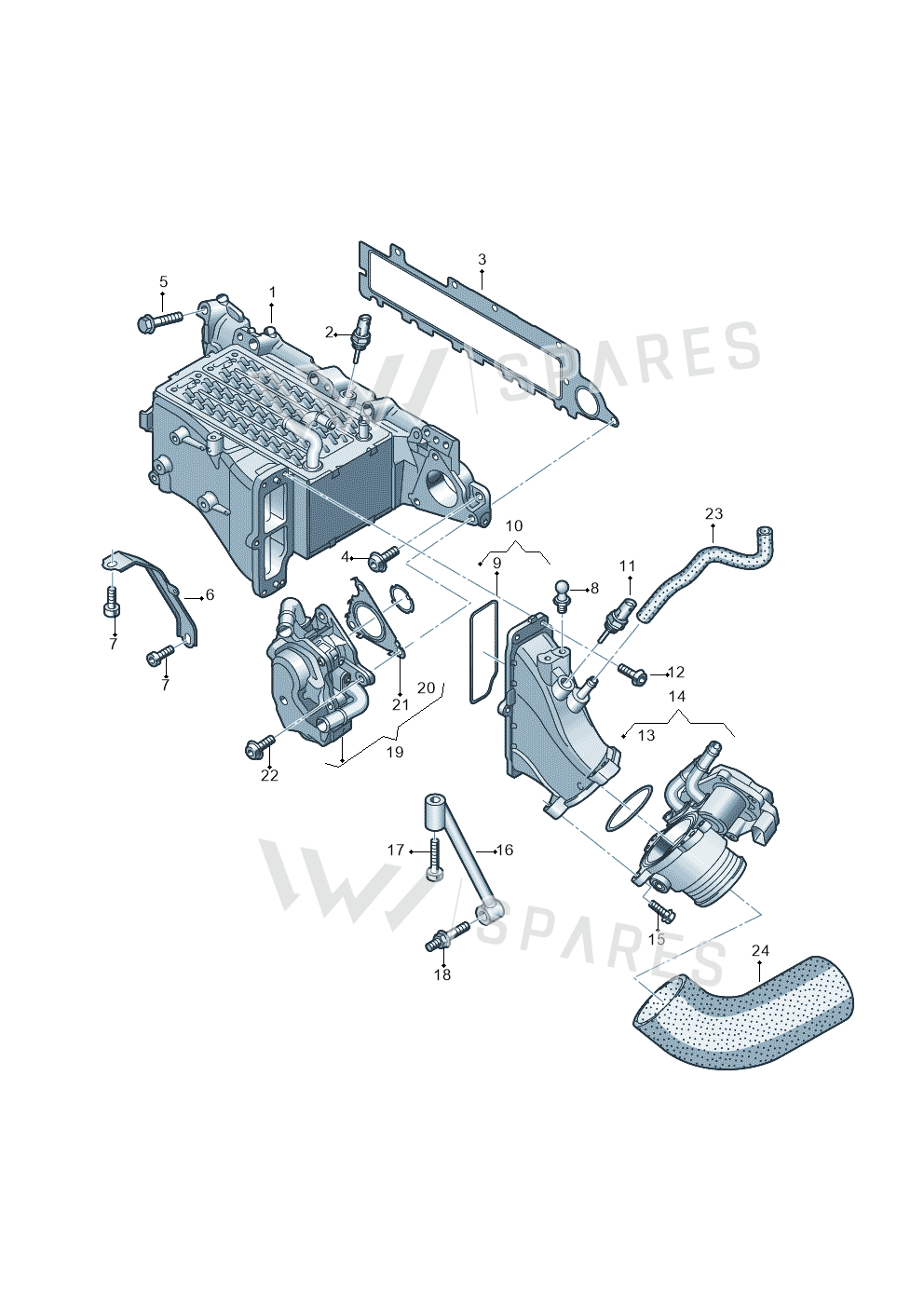

4 vehiclesSeal — locate Seal in the official exploded view and explore the surrounding assembly.
Parts in this assembly22
- 1Intake Man 03N129711C
- 2Sensor 03N906081A
- 3Seal 03N129717B
- 4Screw N91157202
- 5Screw N10673001
- 5Screw N10746301
- 6Support 03N129728
- 7Screw N10717001
- 8Ball Joint 04L103164
- 9Seal 03N131547A
- 10Union 03N128637A
- 12Bolt N10700201
- 13Seal Ring 059145865C
- 14Thr Flap 03N128063B
- 15Bolt N91097101
- 16Support 03N129723
- 17Screw N10672001
- 18Bolt N91206201
- 19Valve 04L131501S
- 20Seal 04L131547M
- 21Seal 04L131547L
- 22Bolt N10644403
Vehicle fitment table4
Europe (4)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| Arteon | 2017-2023 | 13 | 1 |
| Tiguan 2.0 4Motion | 2016-2024 | 13 | 1 |
| Kodiaq | 2016-2024 | 13 | 1 |
| Passat saloon | 2014-2024 | 13 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Seal is fitted on: Arteon 2017-2023; Tiguan 2.0 4Motion 2016-2024; Kodiaq 2016-2024; Passat saloon 2014-2024.
