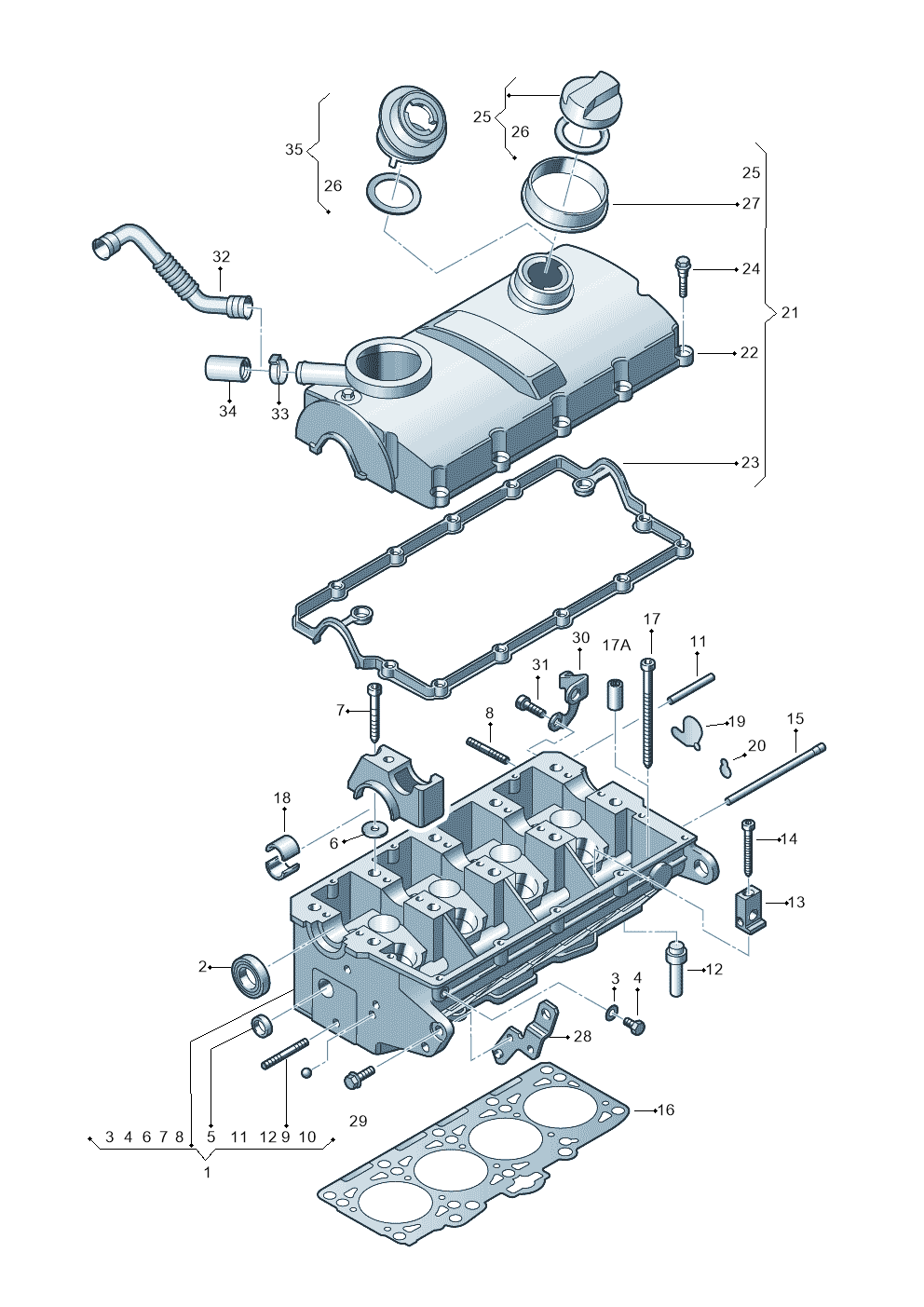

Cylinder Head Gasket exploded parts diagram — LUPO/3L TDI · 2003-2005, position 16
Exploded view
LUPO/3L TDI · 2003-2005 · position 16Full diagram ↓
045103383D

045103383D Cylinder Head Gasket

£50.37
£41.63 excl. VAT
Availability: Discontinued — no longer orderable

Special order item. Delivery time may vary.

About This Part

Discontinued by the manufacturer

This part number has been discontinued and can no longer be ordered. Contact us and we will look for an alternative.

Order Processing & Delivery

This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.

Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.

* Delivery times are estimates and may vary based on manufacturer availability and your location.

Verify Vehicle Fitment

To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.

Contact us with your VIN
Genuine OEM Parts
Direct from manufacturer
Secure Ordering
Safe and protected checkout

Parts diagram & fitment

3 vehicles

Cylinder Head Gasket — locate Cylinder Head Gasket in the official exploded view and explore the surrounding assembly.

Parts in this assembly32
Vehicle fitment table3

Europe (3)

VehicleYearsPos.QtyRemarkPR
LUPO/3L TDI2003-200516XAYZMA7
AUDI A22000-200516XANY
LUPO/3L TDI1998-200316XANY,AYZMA7

Diagrams & fitment data powered by oemdiagrams.com

Cylinder Head Gasket is fitted on: LUPO/3L TDI 2003-2005; AUDI A2 2000-2005; LUPO/3L TDI 1998-2003.
