049103601 Engine Oil Sump
- Discontinued Apr 2024
- 051103609ECurrent · not stocked
- Discontinued Nov 2022
- Current number
- 049103601This pageNot stocked
Aug 1993
- Discontinued Apr 2024051103601Discontinued
Apr 2024 - 051103609ECurrent · not stocked051103609ECurrent · not stocked
- Discontinued Nov 2022044103609DDiscontinued
Nov 2022 - Current numberN90592703Current number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

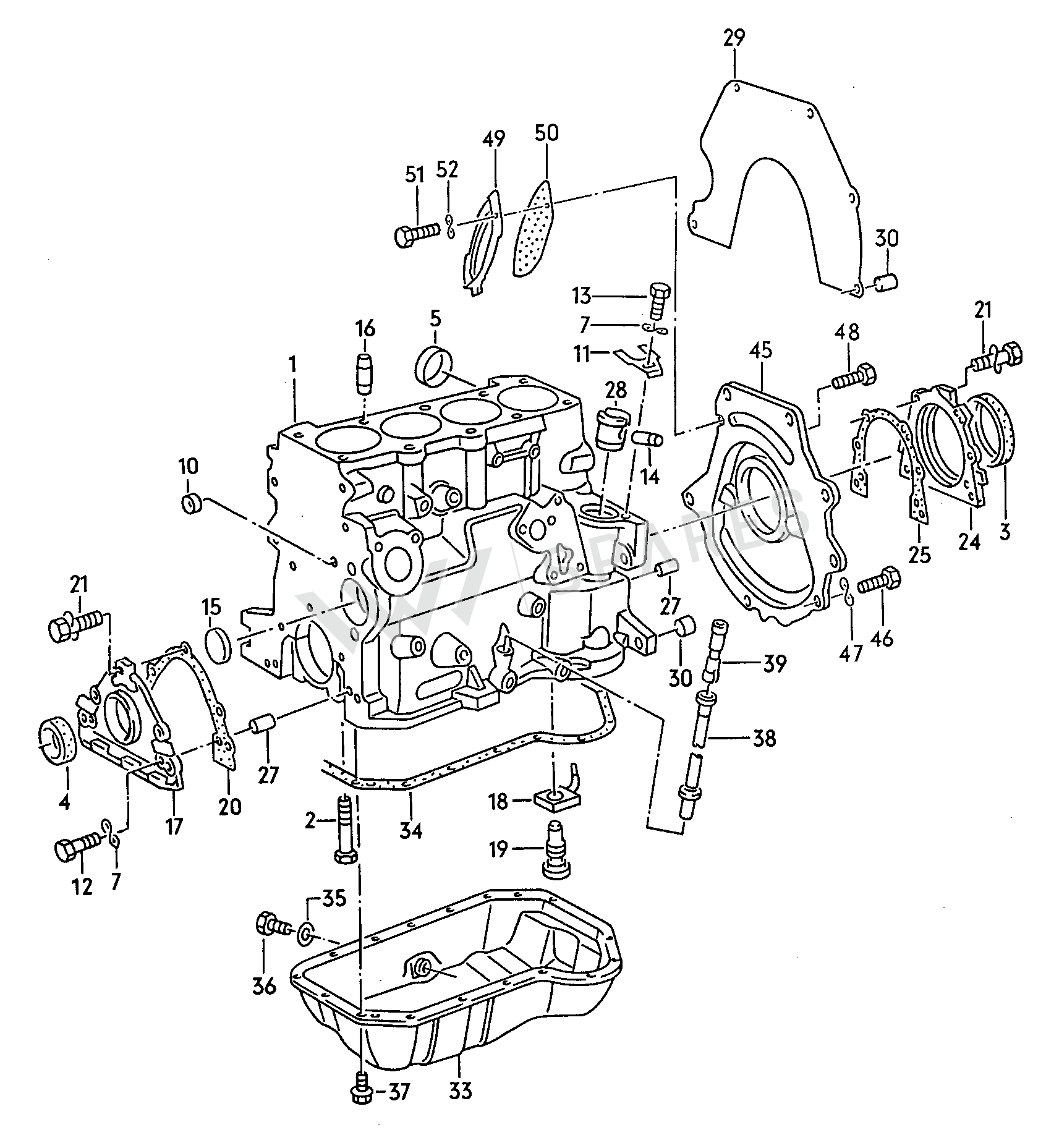

7 vehiclesEngine Oil Sump — locate Engine Oil Sump in the official exploded view and explore the surrounding assembly.
Parts in this assembly35
- 1Cylinder Block 027103101C
- 1Cylinder Block 051103101
- 1Part 026103101L
- 2Bolt N10263801
- 4Seal 068103085E
- 5Cover 036103113A
- 7Washer N01224110
- 10Cover N01190710
- 12Bolt N01024016
- 14Rivet N0162011
- 14Bungs 056103117
- 16Part 026103139
- 20Seal 026103161B
- 21Bolt N01021612
- 24Flange 068103171F
- 25Seal 026103181B
- 27Part N0432072
- 28Bush 056103541
- 30Sleeve 014301153
- 33Oil Sump 051103601
- 34Seal 044103609D
- 35Seal Ring N0138492
- 36Plug N90288901
- 37Bolt N90008401
- 38Tube 049103634
- 39Funnel 050103663
- 45Cover 068103621E
- 45Cover 068103621C
- 46Bolt N0102279
- 47Washer N0122345
- 49Coverplate 038103648H
- 49Coverplate 055103648E
- 50Seal 055103649A
- 51Bolt N0102085
- 52Washer N0122265
Vehicle fitment table7
Europe (7)
| Vehicle | Years | Pos. | Qty | Remark |
|---|---|---|---|---|
| Jetta 89 | 1988-1989 | 33 | 1 | |
| Golf/Jetta syn, Rallye | 1985-1991 | 33 | 1 | |
| Jetta 86 | 1985-1986 | 33 | 1 | GX,RD,EZ,HM, |
| Jetta 85 | 1984-1985 | 33 | 1 | GX,HT |
| Scirocco | 1983-1989 | 33 | 1 | |
| Jetta | 1981-1984 | 33 | 1 | EN |
| Jetta 81 | 1980-1981 | 30 | 1 | EN |
Diagrams & fitment data powered by oemdiagrams.com
Engine Oil Sump is fitted on: Jetta 89 1988-1989; Golf/Jetta syn, Rallye 1985-1991; Jetta 86 1985-1986; Jetta 85 1984-1985; Scirocco 1983-1989; Jetta 1981-1984; Jetta 81 1980-1981.
