049103635 Tube For Oil Dipstick
Special order item. Delivery time may vary.
About This Part
Discontinued by the manufacturer
This part number has been discontinued and can no longer be ordered. Contact us and we will look for an alternative.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

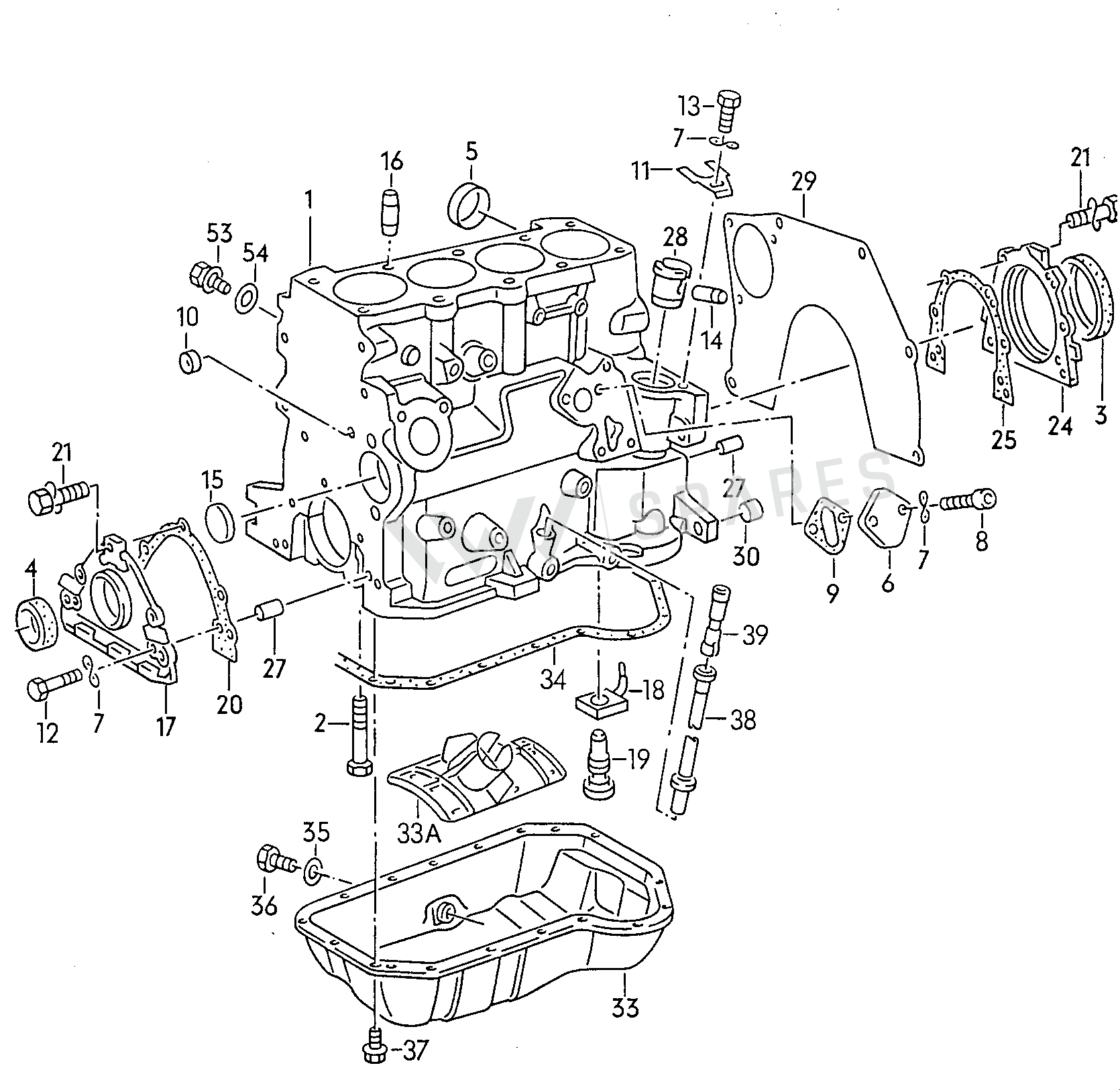

28 vehiclesTube For Oil Dipstick — locate Tube For Oil Dipstick in the official exploded view and explore the surrounding assembly.
Parts in this assembly29
- 1Cylinder Block 026103101L
- 1Cylinder Block 051103101
- 2Bolt N10263801
- 4Seal 068103085E
- 5Cover 059103113
- 10Cover N0119074
- 11Bracket 028905256
- 12Bolt N01024016
- 13Bolt N01024222
- 14Bungs 056103117
- 17Flange 051103152
- 20Seal 026103161B
- 21Bolt N01021612
- 24Flange 068103171F
- 25Seal 026103181B
- 27Part N0432072
- 28Bush 056103541
- 29Spacer Pl 056103551B
- 30Sleeve 014301153
- 33Oil Sump 048103601
- 33ALock 053103623
- 34Seal 044103609D
- 35Seal Ring N0138492
- 36Plug N90288901
- 37Bolt N90008401
- 38Tube 049103634
- 39Funnel 053103663
- 53Screw N0297022
- 54Seal Ring N0138115
Vehicle fitment table28
Europe (22)
| Vehicle | Years | Pos. | Qty | Remark |
|---|---|---|---|---|
| Audi 5000 S/Wagon | 1984-1986 | 38 | 1 | DR |
| Audi 5000 S/Wagon 84 | 1983-1984 | 38 | 1 | DR |
| CADDY | 1982-1992 | 38 | 1 | JB,EM |
| Audi Coupe | 1981-1987 | 38 | 1 | |
| Jetta | 1981-1984 | 38 | 1 | |
| Audi 4000 | 1981-1984 | 38 | 1 | YP |
| Scirocco | 1981-1983 | 38 | 1 | |
| Audi 5000 | 1981-1982 | 23 | 1 | |
| Scirocco | 1981-1981 | 35 | 1 | |
| PASSAT,-VARIANT/2 81 | 1980-1981 | 22 | 1 | |
| Jetta 81 | 1980-1981 | 35 | 1 | |
| Scirocco | 1980-1981 | 35 | 1 | |
| Audi 4000 | 1979-1981 | 20 | 1 | |
| Audi 5000/Wagon | 1979-1981 | 23 | 1 | |
| Scirocco | 1978-1980 | 33 | 1 | EG |
| OTTO-IND.-MOT. 77> | 1977- | 10 | 1 | 049:6 |
| DIES.-IND.-MOT.1,5>1,6 | 1977-1996 | 24A | 1 | 068:5 |
| Dasher | 1977-1980 | 22 | 1 | |
| Audi 5000 | 1977-1979 | 22A | 1 | |
| Scirocco | 1976-1978 | 34 | 1 | |
| Audi Fox | 1976-1978 | 50C | P | |
| Dasher | 1973-1977 | 40A | 1 |
Other markets (6)
| Vehicle | Years | Pos. | Qty | Remark |
|---|---|---|---|---|
| Quantum | 1981-1984 | 38 | 1 | WV,WP,WY,YP, |
| Rabbit Conv. | 1981-1983 | 38 | 1 | |
| Rabbit Conv. 81 | 1980-1981 | 35 | 1 | |
| Rabbit/Jetta | 1978-1980 | 33 | 1 | EG |
| Rabbit Conv. | 1978-1980 | 33 | 1 | EG |
| Rabbit | 1976-1978 | 34 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Tube For Oil Dipstick is fitted on: Audi 5000 S/Wagon 1984-1986; Audi 5000 S/Wagon 84 1983-1984; CADDY 1982-1992; Audi Coupe 1981-1987; Jetta 1981-1984; Audi 4000 1981-1984; Scirocco 1981-1983; Audi 5000 1981-1982; Scirocco 1981-1981; PASSAT,-VARIANT/2 81 1980-1981; Jetta 81 1980-1981; Scirocco 1980-1981; Audi 4000 1979-1981; Audi 5000/Wagon 1979-1981; Scirocco 1978-1980; OTTO-IND.-MOT. 77> 1977-; DIES.-IND.-MOT.1,5>1,6 1977-1996; Dasher 1977-1980; Audi 5000 1977-1979; Scirocco 1976-1978; Audi Fox 1976-1978; Dasher 1973-1977; Quantum 1981-1984; Rabbit Conv. 1981-1983; Rabbit Conv. 81 1980-1981; Rabbit/Jetta 1978-1980; Rabbit Conv. 1978-1980; Rabbit 1976-1978.
