049109271 Underlay
Special order item. Delivery time may vary.
About This Part
Discontinued by the manufacturer
This part number has been discontinued and can no longer be ordered. Contact us and we will look for an alternative.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

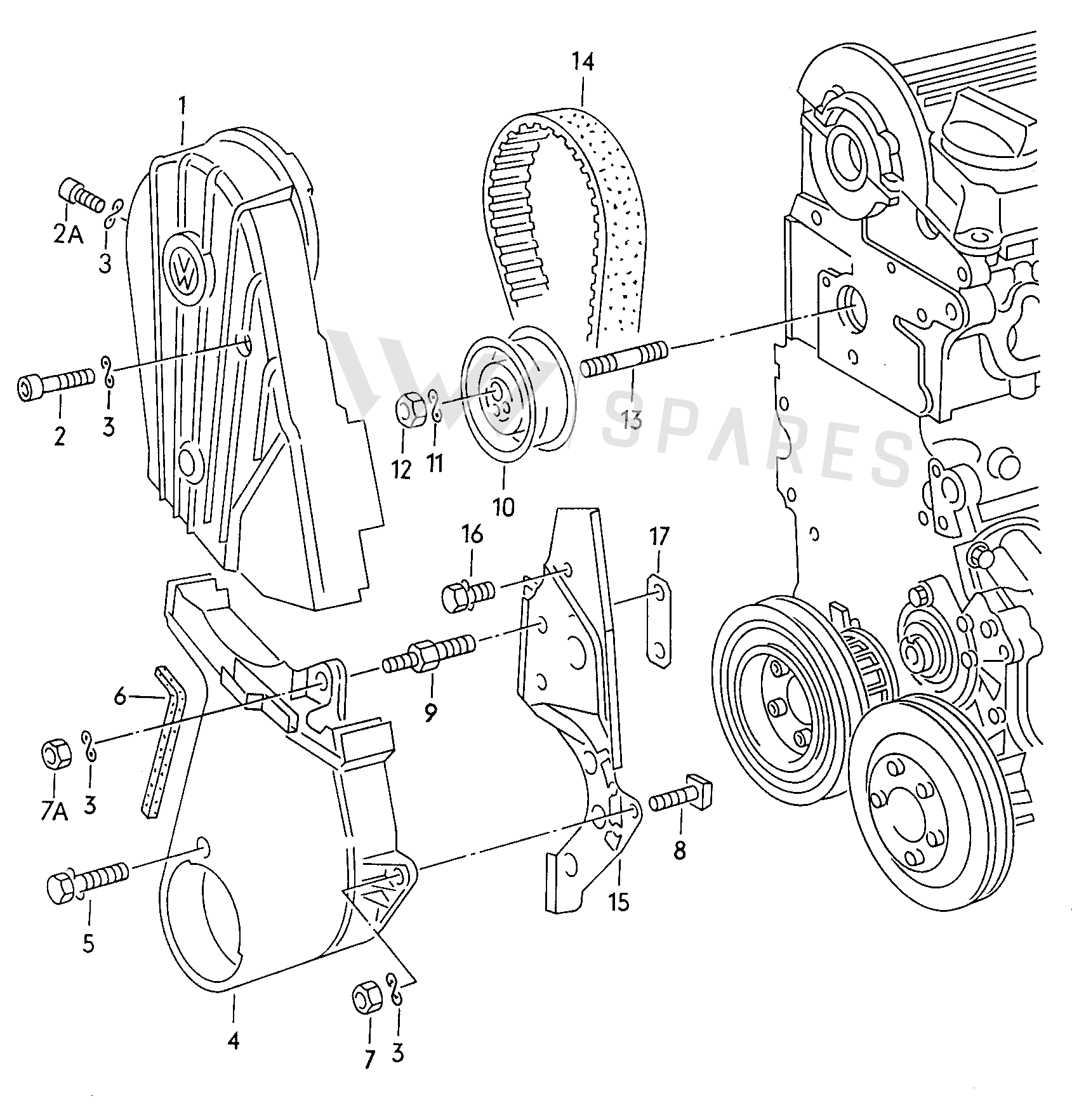

78 vehiclesUnderlay — locate Underlay in the official exploded view and explore the surrounding assembly.
Parts in this assembly17
Vehicle fitment table96
Europe (59)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| TOLEDO SEAT MOD.97>99 | 1996-1999 | 17 | 1 | ||
| IBIZA/CORDOBA/VARIO | 1996-1999 | 17 | 1 | ||
| Audi A6/S6/Wg.qu.F>4A | 1996-1997 | 17 | 1 | ||
| Audi A6/Wagon F >4A-W | 1996-1997 | 17 | 1 | ||
| Audi A6/Wagon 96 | 1995-1996 | 17 | 1 | ||
| Audi A6/S6/Wagon qu. 96 | 1995-1996 | 17 | 1 | ||
| Audi A6/Wagon 95 | 1994-1995 | 17 | 1 | ||
| Audi A6/S6/Wagon.qu. 95 | 1994-1995 | 17 | 1 | ||
| Audi 90 qu. 95 | 1994-1995 | 17 | 1 | ||
| Audi Coupe/3 | 1994-1995 | 17 | 1 | ||
| Audi Cabrio. | 1993-1998 | 17 | 1 | ||
| Audi 90 | 1993-1995 | 17 | 1 | ||
| Audi 100/Wagon 94 | 1993-1994 | 17 | 1 | ||
| Ibiza/Cordoba (SEAT) | 1992-1996 | 17 | 1 | ||
| Audi 90 qu. | 1992-1994 | 17 | 1 | ||
| Audi 100/Wagon qu. | 1992-1994 | 17 | 1 | ||
| Audi 90 93 | 1992-1993 | 17 | 1 | ||
| Audi 100/Wagon 93 | 1992-1993 | 17 | 1 | ||
| TOLEDO SEAT | 1991-1996 | 17 | 1 | ||
| Passat | 1991-1993 | 17 | 1 | ||
| Audi 100/Wagon 92 | 1991-1992 | 17 | 1 | ||
| Corrado | 1989-1995 | 17 | 1 | ||
| Passat | 1989-1991 | 17 | 1 | ||
| Jetta | 1989-1991 | 17 | 1 | ||
| Audi 80/90 | 1989-1991 | 17 | 1 | ||
| AUDI COUPE/3 | 1988-1994 | 17 | 1 | ||
| Jetta 89 | 1988-1989 | 17 | 1 | ||
| GOLF,JETTA (MEX) | 1987-1992 | 15 | 1 | ||
| Audi 80/90 qu. | 1987-1991 | 25, 17 | 1 | ||
| Audi 80/90 | 1987-1989 | 27 | 1 | ||
| Jetta 88 | 1987-1988 | 23, 17 | 1 | ||
| Audi 5000 S/Wagon qu. | 1987-1988 | 25 | 1 | ||
| Audi 5000 S/Wagon | 1986-1988 | 27 | 1 | ||
| Jetta 87 | 1986-1987 | 23, 17 | 1 | ||
| Golf/Jetta syn, Rallye | 1985-1991 | 23 | 1 | ||
| Jetta 86 | 1985-1986 | 23, 17 | 1 | ||
| Audi 4000 S | 1984-1987 | 27 | 1 | ||
| Audi 4000 S/CS qu. | 1984-1987 | 25 | 1 | ||
| Audi 5000 S/Wagon | 1984-1986 | 27 | 1 | ||
| Jetta 85 | 1984-1985 | 23 | 1 | ||
| Scirocco | 1983-1989 | 23, 17 | 1 | ||
| Audi 5000 S/Wagon 84 | 1983-1984 | 9A | 1 | ||
| Audi Coupe | 1981-1987 | 27 | 1 | ||
| Jetta | 1981-1984 | 23 | 1 | ||
| Audi 4000 | 1981-1984 | 27 | 1 | ||
| Scirocco | 1981-1983 | 23 | 1 | ||
| Audi 5000 | 1981-1982 | 9A | 1 | ||
| Scirocco | 1981-1981 | 23 | 1 | ||
| PASSAT,-VARIANT/2 81 | 1980-1981 | 27 | 1 | ||
| Jetta 81 | 1980-1981 | 23 | 1 | ||
| Scirocco | 1980-1981 | 23 | 1 | ||
| Audi 4000 | 1979-1981 | 41 | 1 | ||
| Audi 5000/Wagon | 1979-1981 | 9A | 1 | ||
| Scirocco | 1978-1980 | 35 | |||
| OTTO-IND.-MOT. 77> | 1977- | 25 | 1 | ||
| Dasher | 1977-1980 | 41 | 1 | ||
| Audi 5000 | 1977-1979 | 12A | 1 | YV | |
| TIPO 2 (MEX) | 1971-2001 | 27 | 1 | ||
| ILTIS | 22 | 1 |
Other markets (18)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| CITI GOLF "ZA"M.96> | 1996- | 23 | 1 | ||
| CADDY-PICKUP "ZA" 96> | 1995- | 23 | 1 | ||
| TYPE 2 "ZA" | 1995-2003 | 27 | 1 | ||
| NOVA PARATI | 1995-2002 | 14A | |||
| NOVO GOL/SAVEIRO | 1994-2002 | 14A | |||
| JETTA (FAW) 91> | 1991- | 23 | 1 | ||
| Golf/Jetta "USA","MEX"89>92 | 1988-1992 | 17 | 1 | ||
| Quantum | 1986-1988 | 27 | 1 | ||
| SANTANA/VARIANT "CN"86> | 1985- | 27 | |||
| Quantum syncro | 1985-1988 | 27 | 1 | ||
| Quantum 86 | 1985-1986 | 27 | 1 | ||
| Quantum 85 | 1984-1985 | 27 | 1 | ||
| Rabbit Conv./Cabrio | 1983-1993 | 23 | 1 | ||
| Quantum | 1981-1984 | 27 | 1 | ||
| Rabbit Conv. | 1981-1983 | 23 | 1 | ||
| Rabbit Conv. 81 | 1980-1981 | 23 | 1 | ||
| Rabbit/Jetta | 1978-1980 | 35 | |||
| Rabbit Conv. | 1978-1980 | 35 |
Platform / generic diagrams (1)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| 325 platform | 14A |
Listed without a diagram position (18)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| GOLF CABRIO | 2002-2002 | 1 | M60 | ||
| POLO CLASSIC/VARIANT | 1999-2001 | 1 | ADC | ||
| GOLF CABRIO | 1998-2001 | 1 | AGG,AKR,ATU, | ||
| GOLF VAR./VENTO | 1996-1999 | 1 | AGG,AKR,AEP | ||
| POLO CLASSIC/VARIANT | 1996-1999 | 1 | ADC | ||
| Golf Var./Vento 96 | 1995-1996 | 1 | ADY,AEP,AGG | ||
| Passat | 1994-1997 | 1 | 2E,ACX,ADY, | ||
| Golf Cabrio | 1994-1996 | 1 | 2E,ADY,AGG, | ||
| Passat Var.syncro | 1994-1996 | 1 | |||
| Golf/Ecomatic 95 | 1994-1995 | 1 | 2E | ||
| Golf Var./Vento 95 | 1994-1995 | 1 | 2E,ADY,AEP | ||
| Jetta GLX 94 | 1993-1994 | 1 | 2E | ||
| GOLF/Ecomatic | 1991-1994 | 1 | 2E | ||
| POLO CLASS./PL. "ZA" | 1996-2003 | 1 | |||
| Golf/Jetta "USA","Mex"97>99 | 1996-1998 | 1 | ADC | ||
| Golf Cabrio "USA","MEX"96>99 | 1995-1998 | 1 | |||
| Golf/Jetta "USA","MEX"93>96 | 1992-1996 | 1 | ABA,ADC | ||
| 6K0 platform | 1 | ADC |
