049127311 Seal
Special order item. Delivery time may vary.
About This Part
Discontinued by the manufacturer
This part number has been discontinued and can no longer be ordered. Contact us and we will look for an alternative.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

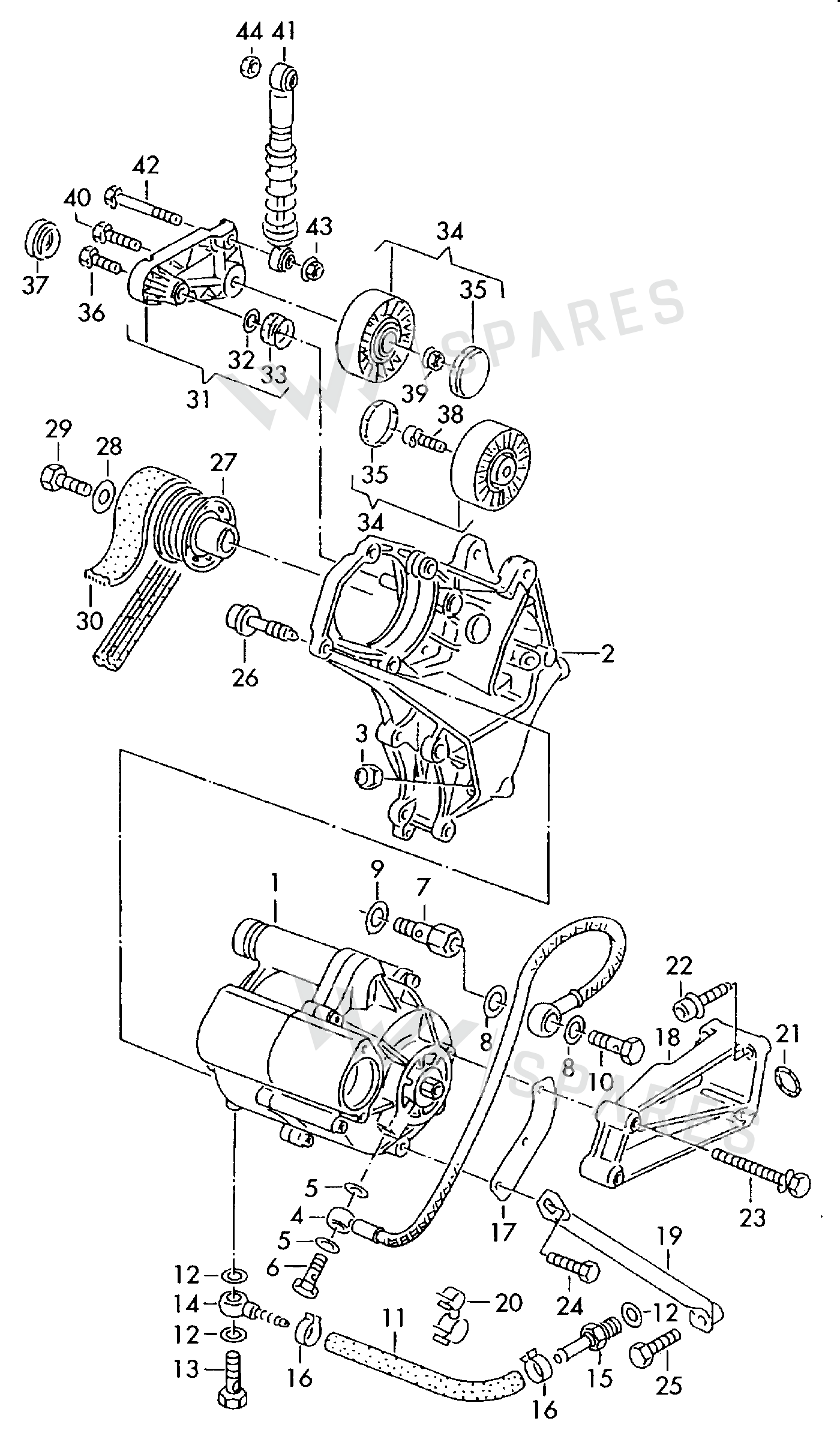

45 vehiclesSeal — locate Seal in the official exploded view and explore the surrounding assembly.
Parts in this assembly35
- 1G Lader 037145401C
- 3Collar Nut N90183802
- 4Line 052145443
- 5Seal Ring N0138302
- 6Screw N90183603
- 7Screw 035103715
- 8Seal Ring N0138085
- 9Seal Ring N0138182
- 10Screw N0210756
- 12Seal Ring N0138115
- 14Connection N90437701
- 15Union 037145786
- 16Clamp N10139301
- 17Plate 037145539B
- 18Bracket 037145493A
- 19Support 037145535B
- 20Bracket 037145801B
- 22Screw N90401901
- 23Screw N90144201
- 24Bolt N0102336
- 25Bolt N10234204
- 26Screw N90402001
- 27Pulley 037145929B
- 28Washer N90476901
- 30Ply-v-belt 038903137J
- 31Clamp 037145277A
- 33Seal Ring 037145290A
- 34Roller 074145278E
- 35Prot Cap 037145291
- 36Bolt N90531701
- 38Screw N0147107
- 40Bolt N01953310
- 42Bolt N0195042
- 43Collar Nut N90908301
- 44Part N0110088
Vehicle fitment table45
Europe (34)
| Vehicle | Years | Pos. | Qty | Remark |
|---|---|---|---|---|
| Passat syncro | 1991-1993 | 21 | 1 | |
| Corrado | 1989-1995 | 21 | 1 | |
| Jetta | 1989-1991 | 21 | 1 | |
| Audi 80/90 | 1989-1991 | 19 | 1 | DZ,ABB |
| AUDI COUPE/3 | 1988-1994 | 19 | 1 | DZ |
| Audi 100/Wagon qu. | 1988-1990 | 26 | 1 | |
| Audi 80/90 qu. | 1987-1991 | 19 | 1 | |
| Audi 80/90 | 1987-1989 | 19 | 1 | DZ,JN |
| Jetta 88 | 1987-1988 | 35 | 1 | |
| Audi 5000 S/Wagon qu. | 1987-1988 | 26 | 1 | |
| Audi 5000 S/Wagon | 1986-1988 | 26 | 1 | |
| Jetta 87 | 1986-1987 | 35 | 1 | |
| Golf/Jetta syn, Rallye | 1985-1991 | 35, 21 | 1 | |
| Jetta 86 | 1985-1986 | 35 | 1 | |
| Audi 4000 S | 1984-1987 | 26 | 1 | |
| Audi 4000 S/CS qu. | 1984-1987 | 26 | 1 | JN,DZ,MU |
| Audi 5000 S/Wagon | 1984-1986 | 26 | 1 | |
| Jetta 85 | 1984-1985 | 35 | 1 | |
| Scirocco | 1983-1989 | 30 | 1 | |
| CADDY | 1982-1992 | 30 | 1 | |
| Jetta | 1981-1984 | 30 | 1 | |
| Audi 4000 | 1981-1984 | 26 | 1 | |
| Scirocco | 1981-1983 | 30 | 1 | |
| Scirocco | 1981-1981 | 30 | 1 | |
| Jetta 81 | 1980-1981 | 30 | 1 | |
| Scirocco | 1980-1981 | 30 | 1 | |
| Audi 4000 | 1979-1981 | 28 | 1 | |
| Scirocco | 1978-1980 | 30 | 1 | |
| Dasher | 1977-1980 | 28 | 1 | |
| Scirocco | 1976-1978 | 30 | 1 | |
| Audi Fox | 1976-1978 | 31 | 1 | |
| Scirocco | 1974-1976 | 25 | 1 | |
| Dasher | 1973-1977 | 21A | 1 | |
| Audi Fox | 1972-1976 | 21A | 1 |
Other markets (10)
| Vehicle | Years | Pos. | Qty | Remark |
|---|---|---|---|---|
| Quantum | 1986-1988 | 26 | 1 | |
| Quantum 86 | 1985-1986 | 26 | 1 | |
| Rabbit Conv./Cabrio | 1983-1993 | 30 | 1 | |
| Quantum | 1981-1984 | 26 | 1 | |
| Rabbit Conv. | 1981-1983 | 30 | 1 | |
| Rabbit Conv. 81 | 1980-1981 | 30 | 1 | |
| Rabbit/Jetta | 1978-1980 | 30 | 1 | |
| Rabbit Conv. | 1978-1980 | 30 | 1 | |
| Rabbit | 1976-1978 | 30 | 1 | |
| Rabbit | 1974-1976 | 25 | 1 |
Platform / generic diagrams (1)
| Vehicle | Years | Pos. | Qty | Remark |
|---|---|---|---|---|
| 325 platform | 9 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Seal is fitted on: Passat syncro 1991-1993; Corrado 1989-1995; Jetta 1989-1991; Audi 80/90 1989-1991; AUDI COUPE/3 1988-1994; Audi 100/Wagon qu. 1988-1990; Audi 80/90 qu. 1987-1991; Audi 80/90 1987-1989; Jetta 88 1987-1988; Audi 5000 S/Wagon qu. 1987-1988; Audi 5000 S/Wagon 1986-1988; Jetta 87 1986-1987; Golf/Jetta syn, Rallye 1985-1991; Jetta 86 1985-1986; Audi 4000 S 1984-1987; Audi 4000 S/CS qu. 1984-1987; Audi 5000 S/Wagon 1984-1986; Jetta 85 1984-1985; Scirocco 1983-1989; CADDY 1982-1992; Jetta 1981-1984; Audi 4000 1981-1984; Scirocco 1981-1983; Scirocco 1981-1981; Jetta 81 1980-1981; Scirocco 1980-1981; Audi 4000 1979-1981; Scirocco 1978-1980; Dasher 1977-1980; Scirocco 1976-1978; Audi Fox 1976-1978; Scirocco 1974-1976; Dasher 1973-1977; Audi Fox 1972-1976; Quantum 1986-1988; Quantum 86 1985-1986; Rabbit Conv./Cabrio 1983-1993; Quantum 1981-1984; Rabbit Conv. 1981-1983; Rabbit Conv. 81 1980-1981; Rabbit/Jetta 1978-1980; Rabbit Conv. 1978-1980; Rabbit 1976-1978; Rabbit 1974-1976; 325 platform.
