04B103011R Crankcase Housing
- 04B103011MNot stocked
Mar 2014 - 04B103011RThis pageNot stocked
Apr 2015 - 04B103011SNot stocked
Jul 2016 - 04B103011TCurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VOLKSWAGEN is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

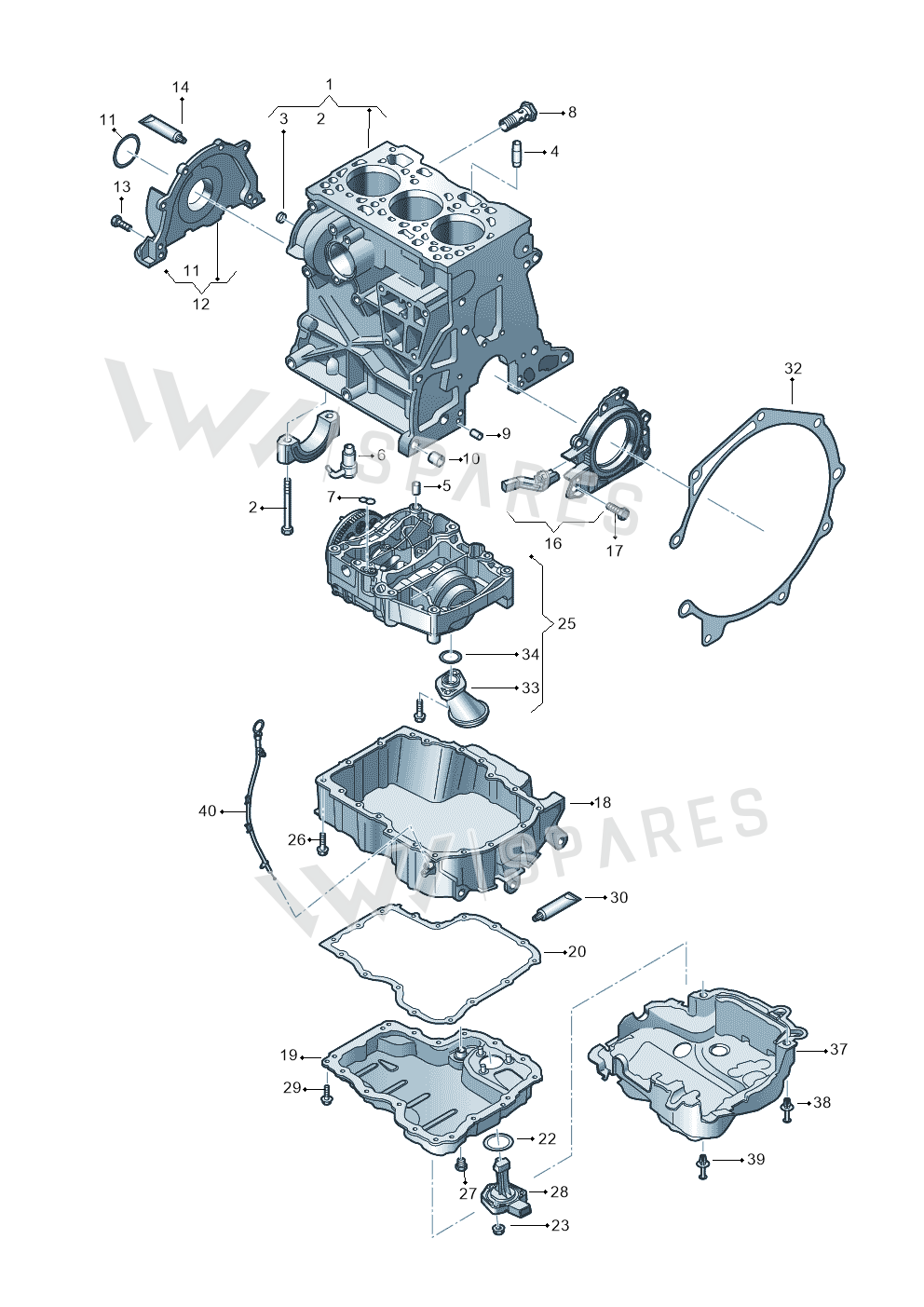

1 vehicleCrankcase Housing — locate Crankcase Housing in the official exploded view and explore the surrounding assembly.
Parts in this assembly33
- 2Screw WHT006459A
- 3Cover N01190710
- 4Sleeve N90956103
- 5Sleeve N90820801
- 6Vent 04B103157
- 8Screw N0210717
- 9Part N0432072
- 10Sleeve 022103139B
- 11Radial Sea 03L103085B
- 12Flange 04B103151B
- 12Flange 04B103151C
- 13Bolt N90945002
- 14Seal D176501A1
- 16Flange 04B103170C
- 18Oil Sump 04B103603E
- 19Oil Sump 04B103602E
- 20Gasket 04B103609
- 22Seal Ring 038103196B
- 23Collar Nut N01508210
- 25Oil Pump 04B145208G
- 26Bolt N90735604
- 27Bolt N91180601
- 28Oel Sensor 04E907660D
- 28Oel Sensor 03C907660M
- 29Bolt N91096701
- 32Cover 04B103647B
- 32Spacer Pl 0CW103551
- 33Pipe 04B115251
- 34Seal Ring N0282222
- 37Cover 04B103660A
- 37Cover 04B103660C
- 38Part 03L103728
- 39Spring Rivet 03L863788A
Vehicle fitment table1
Europe (1)
| Vehicle | Years | Pos. |
|---|---|---|
| Audi A1 Sportback | 2014-2018 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Crankcase Housing is fitted on: Audi A1 Sportback 2014-2018.
