04B130277J Injector Unit
- 04B130277JThis pageNot stocked
Dec 2017 - 04B130277NCurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

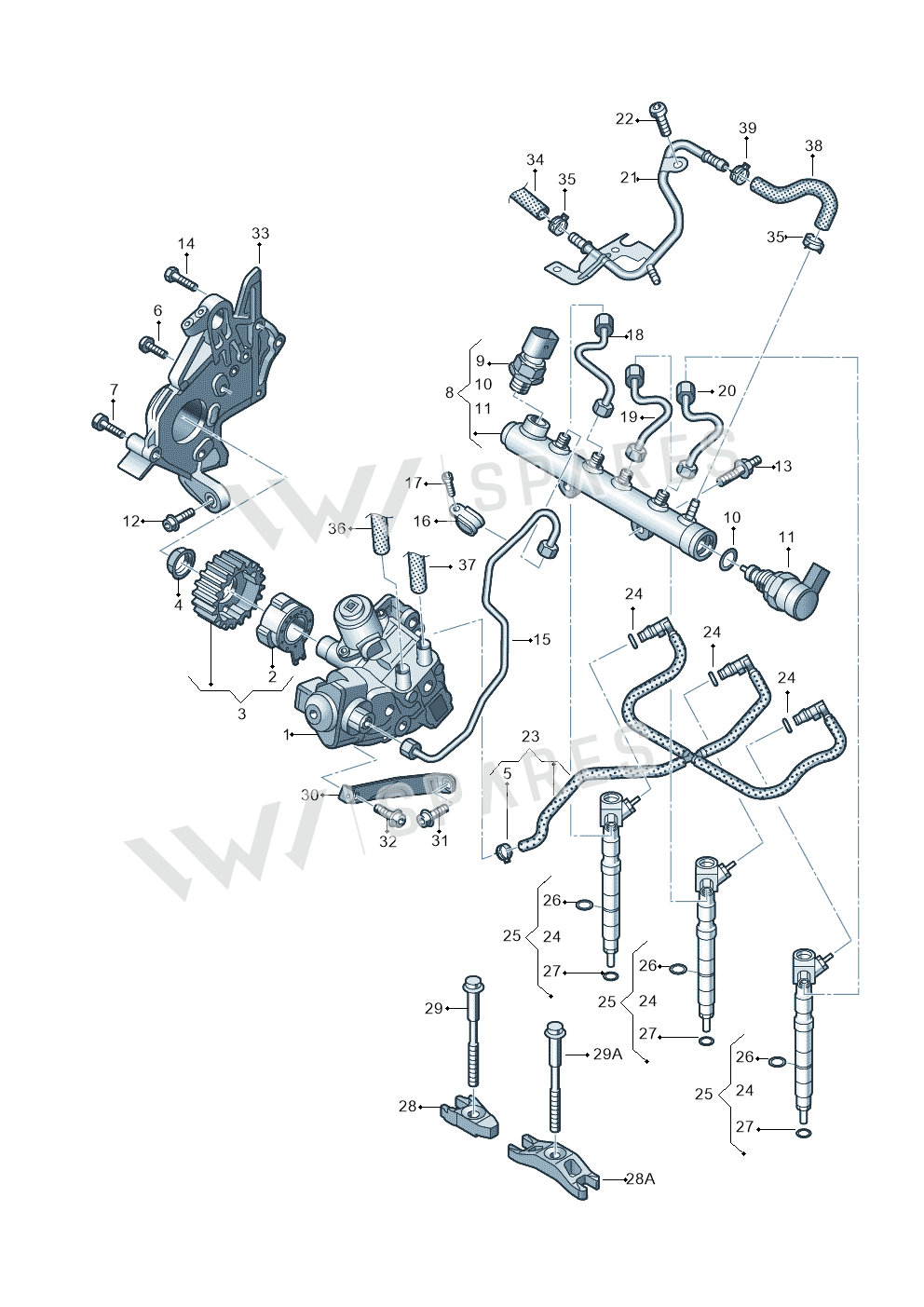

7 vehiclesInjector Unit — locate Injector Unit in the official exploded view and explore the surrounding assembly.
Parts in this assembly32
- 1Pump 04B130755F
- 3Pulley 04L130101
- 4Collar Nut WHT002244
- 5Clamp N10757201
- 6Screw N10672001
- 7Bolt N10665001
- 8Rail 04B130093
- 9Sensor 04L906054
- 10Seal Ring N90451902
- 11Valve 057130764AB
- 12Bolt N10675602
- 13Bolt N91089001
- 14Bolt N10640801
- 15Pipe 04B130321G
- 16Clamp N91171101
- 17Bolt N10335206
- 18Pipe 04B130303B
- 19Pipe 04B130301L
- 21Pipe 04B201360
- 22Bolt N91096701
- 23Pipe 04B130235B
- 24Seal Ring WHT005299
- 26Seal Ring WHT000884
- 27Seal Ring 03P130519
- 28Clamp Piec 04B130216A
- 28AClamp Piec 03L130216
- 29Screw WHT006449
- 29AScrew WHT005490
- 30Bracket 04B130389A
- 31Screw N91026802
- 33Bracket 04B130379A
- 35Clamp N90986501
Vehicle fitment table7
Europe (7)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| Ibiza Stylance | 2015- | 25 | 3 |
| Toledo Reference | 2015-2019 | 25 | 3 |
| fabia | 2014-2022 | 25 | 3 |
| Audi A1 Sportback | 2014-2018 | 25 | 3 |
| Polo 1.4 BlueMotion | 2014-2017 | 25 | 3 |
| Rapid | 2012-2022 | 25 | 3 |
| Toledo Reference | 2012-2015 | 25 | 3 |
Diagrams & fitment data powered by oemdiagrams.com
Injector Unit is fitted on: Ibiza Stylance 2015-; Toledo Reference 2015-2019; fabia 2014-2022; Audi A1 Sportback 2014-2018; Polo 1.4 BlueMotion 2014-2017; Rapid 2012-2022; Toledo Reference 2012-2015.
