04B145771H Supply Pipe
- 04B145771CNot stocked
Feb 2014 - 04B145771ENot stocked
Nov 2014 - 04B145771HThis pageNot stocked
Oct 2015 - 04B145771LCurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for SKODA is typically 3–8 business days before dispatch.
Handling time for Skoda: 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

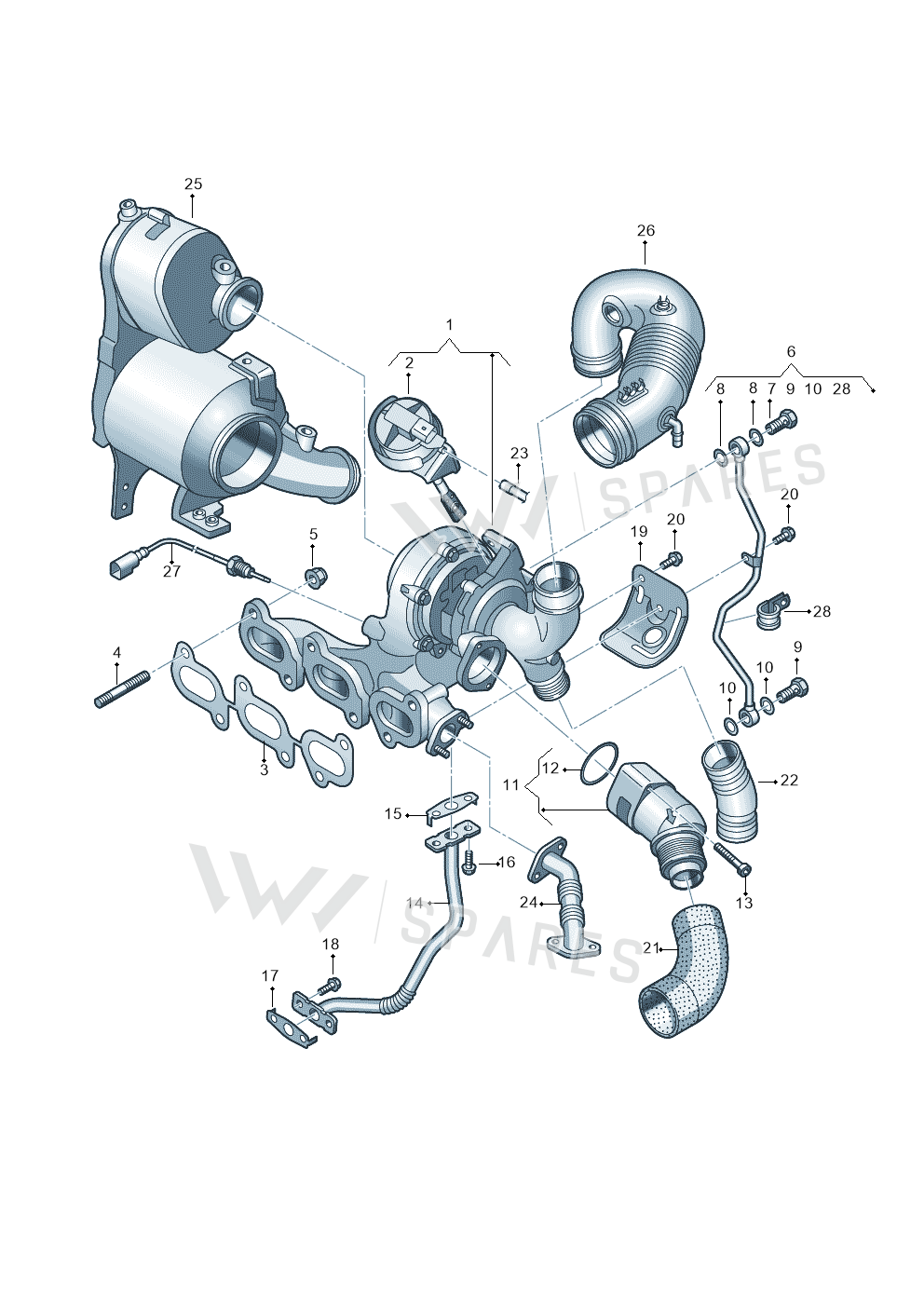

4 vehiclesSupply Pipe — locate Supply Pipe in the official exploded view and explore the surrounding assembly.
Parts in this assembly22
- 1Part 04B253020
- 1Part 04B253019G
- 3Seal 04B253039F
- 3Seal 04B253039C
- 4Bolt N90188902
- 5Ut Hexagon Nut Self-locking Hexagon Nut N90894601
- 6Pipe 04B145771L
- 7Screw N10313503
- 8Seal Ring N90707001
- 8Seal Ring N0138085
- 9Screw N0210717
- 10Seal Ring N0138133
- 11Damper 04B131111
- 12Seal Ring 04B145117
- 13Screw N91117502
- 14Pipe 04B145735C
- 15Seal 03L145757G
- 16Bolt N90592705
- 18Bolt N91096801
- 19Cover 04B145811A
- 20Bolt N10688402
- 28Clamp N0206096
Vehicle fitment table4
Europe (4)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| fabia | 2014-2022 | 6 | 1 |
| Polo 1.4 BlueMotion | 2014-2017 | 6 | 1 |
| Rapid | 2012-2022 | 6 | 1 |
| Toledo Reference | 2012-2015 | 6 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Supply Pipe is fitted on: fabia 2014-2022; Polo 1.4 BlueMotion 2014-2017; Rapid 2012-2022; Toledo Reference 2012-2015.
