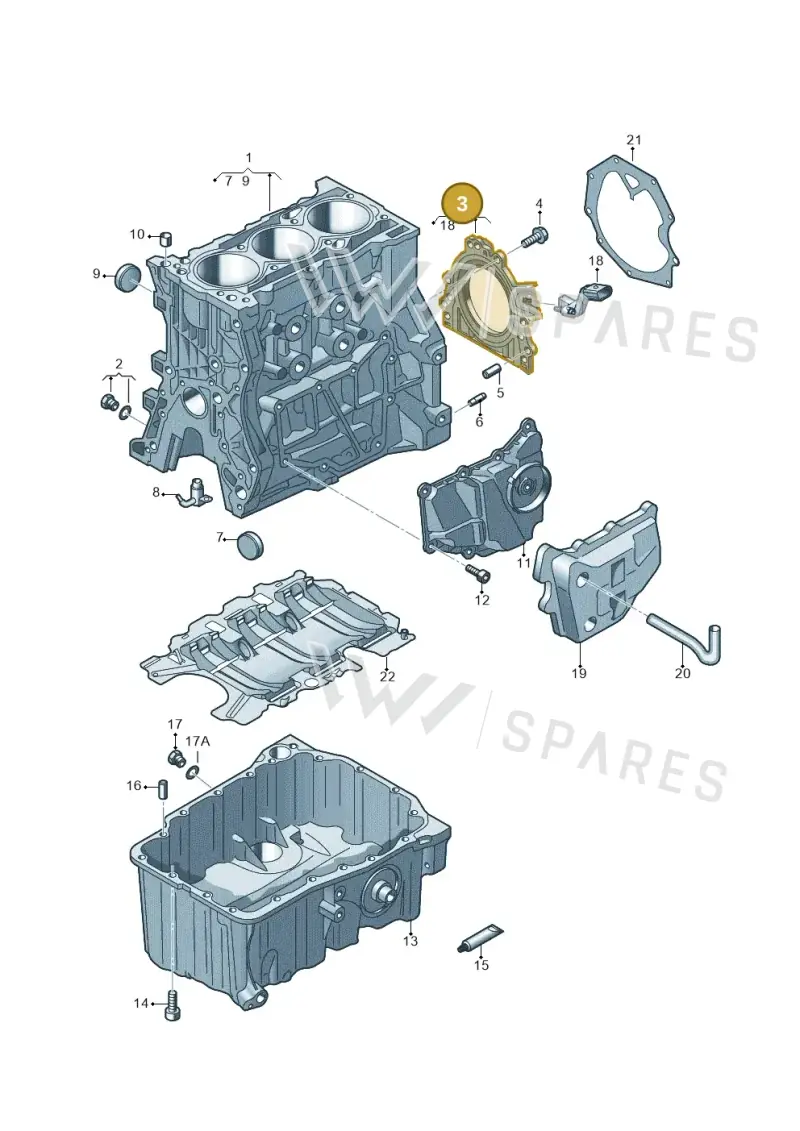

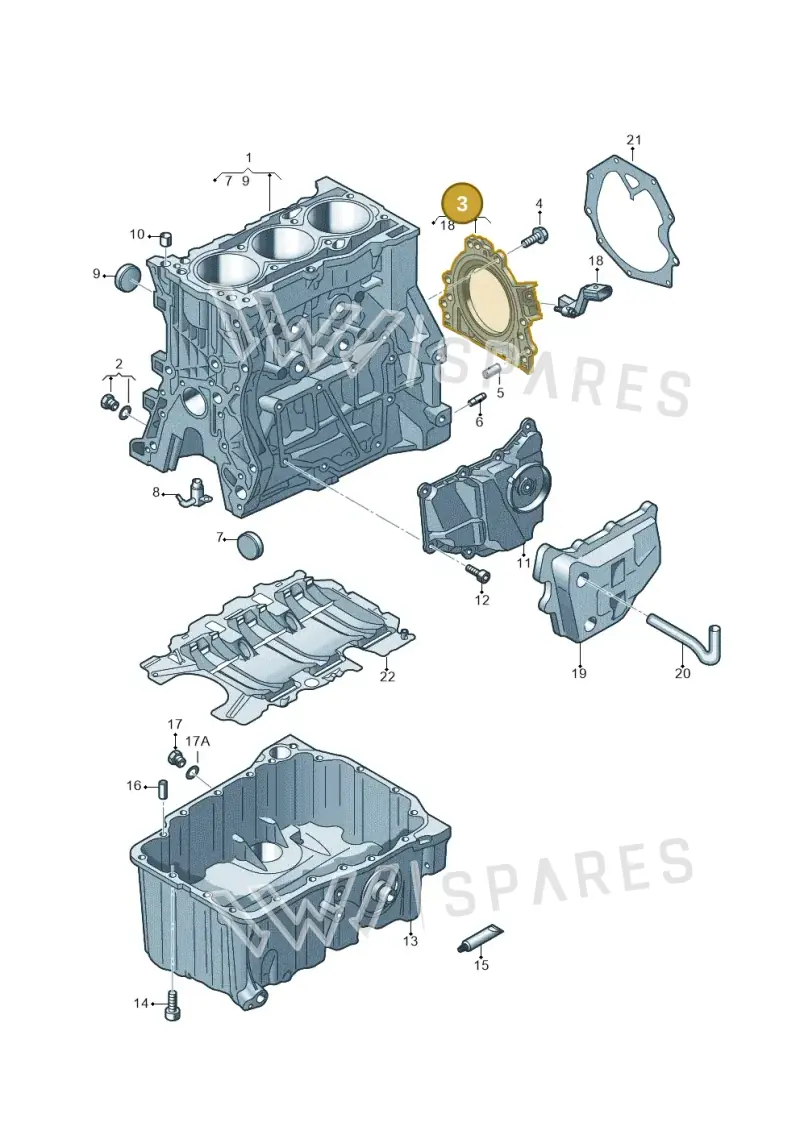

Number 3 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Crankshaft Oil Seal Flange, part number 04C103170H. This component is crucial for maintaining engine integrity by providing a precise sealing surface for the crankshaft oil seal. It is located at the rear of the engine block, where the crankshaft exits, preventing oil leaks. Weighing 0.287 kg, this flange is engineered to exact factory specifications. Using a genuine OEM flange ensures perfect fitment and material compatibility, critical for long-term oil leak prevention and engine reliability.
Catalogue entry: FLANGE.
Fitted with: N10653301 BOLT, D176501A1 SEAL, N90288901 PLUG, N0138158 seal ring, N90500605 SCREW, N10748001 BOLT.
Technical details
- Category
- Gaskets & Seals
- Country of origin
- Germany
- Customs (HS) code
- 84099900
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 20 × 13.5 × 4.5 cm
- Shipping weight
- 0.29 kg
Specifications
As recorded in the manufacturer’s parts catalogue for this part number.
- Engine codes
- CHYB, CHZB, CHZC, DBYA
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist

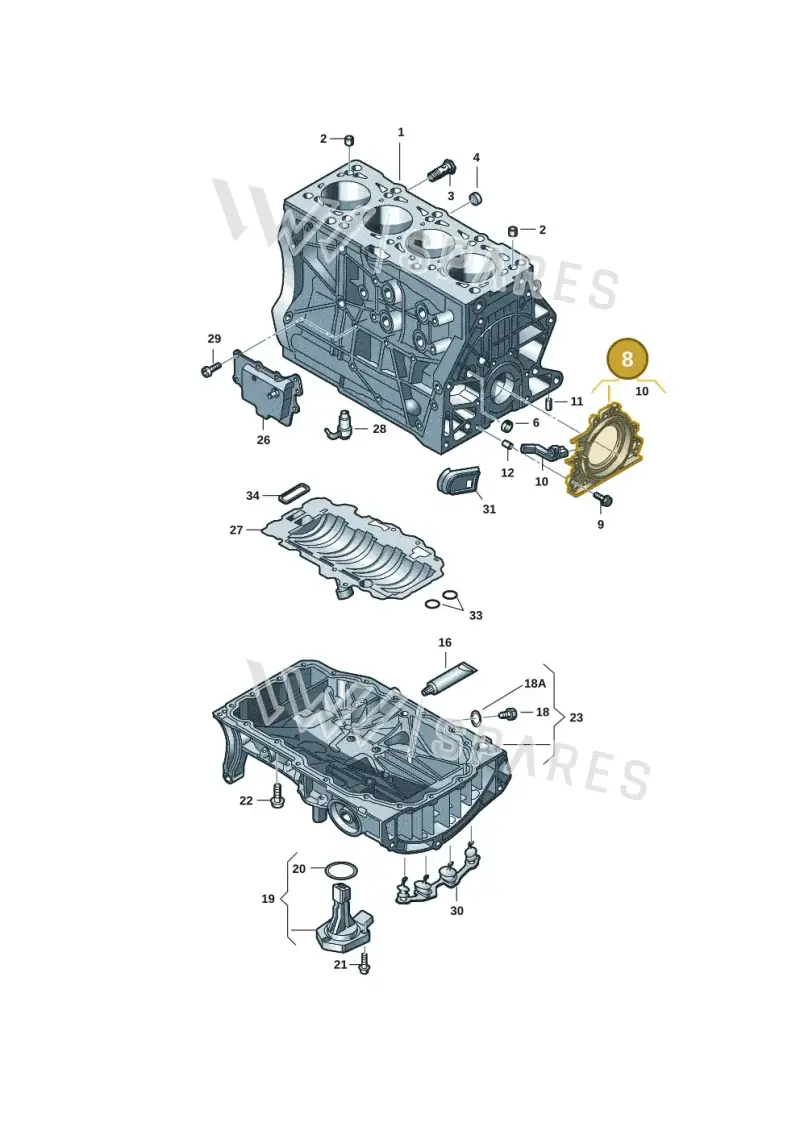

Parts diagram & fitment
50 vehiclesFlange — locate 04C103170H Volkswagen Crankshaft Oil Seal Flange | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly28
- 2Bolt N91101401
- 4Bolt N10653301
- 5Part N0432072
- 6Part 026103139
- 7Cover N10218602
- 8Nozzle 05E103157
- 9Cover N0119098
- 10Sleeve 04E103143A
- 11Separator 05C103464
- 12Bolt WHT005821
- 13Oil Sump 05C103601D
- 14Screw N90500605
- 15Seal D176501A1
- 17Plug N90288901
- 18Seal Ring N0138158
- 22Lock 05C103623D
- 24Bungs 04E103033J
- 25Bungs 04E103037D
- 26Flange 05C103151
- 27Seal 04C103161F
- 28Seal 04C103085C
- 29Screw N10672001
- 30Bolt N91108701
- 43Part 05C131051G
- 44Bolt N10405604
- 45Screw N10473402
- 46Seal Ring WHT008034
- 47Seal 05C103517A
Compatible / alternative parts(12)
Vehicle fitment table50
Europe (43)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| fabia | 2021- | 3, 10 | 1 | ||
| Taigo | 2021-2024 | 3 | 1 | ||
| Formentor TSI CUPRA | 2020- | 8 | 1 | ||
| Leon style | 2019- | 8, 10 | 1 | ||
| Kamiq | 2019- | 3 | 1 | ||
| Golf 2.0 BlueMotion | 2019-2024 | 8, 3 | 1 | ||
| T-Roc convertible 1.5 | 2019-2024 | 3 | 1 | ||
| Octavia | 2019-2024 | 8, 3 | 1 | ||
| Audi A3 Sportback | 2019-2021 | 3 | 1 | ||
| Audi A1 sportback 1.0 | 2018- | 3 | 1 | ||
| T-Cross 1,0 | 2018-2024 | 3 | 1 | ||
| Tarraco FR | 2018-2024 | 8, 10 | 1 | ||
| Audi Q3 quattro | 2018-2019 | 10 | 1 | ||
| Arona FR | 2017- | 3 | 1 | ||
| Ibiza FR | 2017- | 3, 8 | 1 | ||
| T-Roc BlueMotion | 2017-2024 | 3 | 1 | ||
| Tiguan 2.0 4Motion | 2017-2024 | 8, 10 | |||
| Polo 1.0 BlueMotion | 2017-2024 | 3 | 1 | ||
| Karoq | 2017-2022 | 3 | 1 | ||
| Octavia | 2017-2020 | 3 | 1 | ||
| Ateca Style | 2016- | 3 | 1 | ||
| Tiguan 2.0 4Motion | 2016-2024 | 10 | 1 | ||
| up! 1.0 BlueMotion | 2016-2023 | 3 | 1 | 7L6 | |
| golf 2.0 | 2016-2020 | 3 | 1 | ||
| Leon ST Stylance | 2016-2020 | 3 | 1 | ||
| Audi A3 Sportback | 2016-2020 | 3 | 1 | ||
| Audi Q2 2.0 TDI | 2016-2018 | 3 | 1 | ||
| Ibiza Stylance | 2015- | 3 | 1 | 7L6 | |
| Touran 2,0 BlueMotion | 2015-2024 | 3, 10 | 1 | ||
| caddy kombi | 2015-2020 | 3 | 1 | ||
| Toledo Reference | 2015-2019 | 3 | 1 | ||
| fabia | 2014-2022 | 3 | 1 | ||
| Golf Sportsvan 1.6 | 2014-2020 | 3 | 1 | ||
| Audi A1 Sportback | 2014-2018 | 3 | 1 | ||
| Polo 1.4 BlueMotion | 2014-2017 | 3 | 1 | 7L6 | |
| Golf Estate | 2013-2017 | 3, 8 | 1 | ||
| Rapid | 2012-2022 | 3 | 1 | ||
| Golf 1.4 BlueMotion | 2012-2017 | 3 | 1 | ||
| Octavia | 2012-2017 | 3 | 1 | ||
| Leon ST Stylance | 2012-2016 | 3 | 1 | ||
| Mii reference | 2011-2019 | 3 | 1 | 7L6 | |
| Citigo | 2011-2019 | 3 | 1 | 7L6 | |
| up! BlueMotion | 2011-2016 | 3 | 1 | 7L6 |
Other markets (7)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Virtus 1,0 | 2022- | 3 | 1 | ||
| Taigun 1.0 | 2021- | 3 | 1 | ||
| Kushaq | 2021- | 3 | 1 | ||
| Slavia | 2021- | 3 | 1 | ||
| Polo Vivo | 2017- | 3 | 1 | ||
| Polo | 2014-2022 | 3 | 1 | ||
| Rapid Ambition | 2011-2021 | 3 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
04C103170H Volkswagen Crankshaft Oil Seal Flange | Genuine OEM is fitted on: fabia 2021-; Taigo 2021-2024; Formentor TSI CUPRA 2020-; Leon style 2019-; Kamiq 2019-; Golf 2.0 BlueMotion 2019-2024; T-Roc convertible 1.5 2019-2024; Octavia 2019-2024; Audi A3 Sportback 2019-2021; Audi A1 sportback 1.0 2018-; T-Cross 1,0 2018-2024; Tarraco FR 2018-2024; Audi Q3 quattro 2018-2019; Arona FR 2017-; Ibiza FR 2017-; T-Roc BlueMotion 2017-2024; Tiguan 2.0 4Motion 2017-2024; Polo 1.0 BlueMotion 2017-2024; Karoq 2017-2022; Octavia 2017-2020; Ateca Style 2016-; Tiguan 2.0 4Motion 2016-2024; up! 1.0 BlueMotion 2016-2023; golf 2.0 2016-2020; Leon ST Stylance 2016-2020; Audi A3 Sportback 2016-2020; Audi Q2 2.0 TDI 2016-2018; Ibiza Stylance 2015-; Touran 2,0 BlueMotion 2015-2024; caddy kombi 2015-2020; Toledo Reference 2015-2019; fabia 2014-2022; Golf Sportsvan 1.6 2014-2020; Audi A1 Sportback 2014-2018; Polo 1.4 BlueMotion 2014-2017; Golf Estate 2013-2017; Rapid 2012-2022; Golf 1.4 BlueMotion 2012-2017; Octavia 2012-2017; Leon ST Stylance 2012-2016; Mii reference 2011-2019; Citigo 2011-2019; up! BlueMotion 2011-2016; Virtus 1,0 2022-; Taigun 1.0 2021-; Kushaq 2021-; Slavia 2021-; Polo Vivo 2017-; Polo 2014-2022; Rapid Ambition 2011-2021.
