04C121497C Coolant Pipe
- 04C121497CThis pageNot stocked
Sep 2018 - 04C121497FCurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

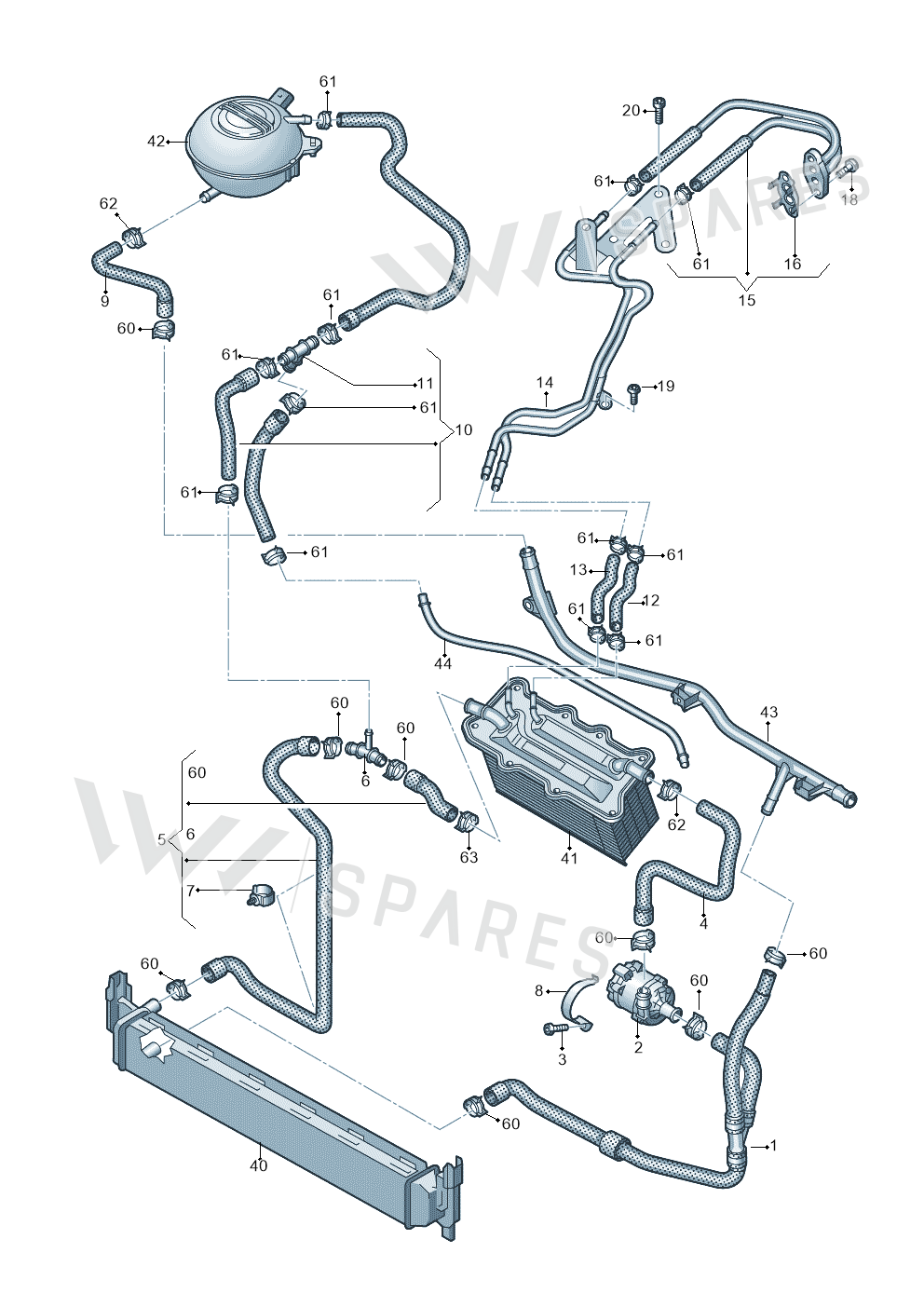

10 vehiclesCoolant Pipe — locate Coolant Pipe in the official exploded view and explore the surrounding assembly.
Parts in this assembly28
- 1Hose 6C0122051AN
- 1Hose 6C0122051P
- 1Hose 6C0122051Q
- 1Hose 6C0122051AM
- 2Water Pump 2Q0965567
- 2Water Pump 5G0965567A
- 2Water Pump 04L965567A
- 3Bolt N10124309
- 3Bolt N10335206
- 4Hose 6C0121063
- 4Hose 6C0121063A
- 5Hose 6C0122101T
- 6Tpiece 5Q0121087F
- 7Bracket 3C0121093D
- 8Bracket 5Q0121093EM
- 9Hose 6C0121109B
- 10Hose 6C0122447G
- 11Junction 1K0121087B
- 12Hose 04C122447D
- 13Hose 04C122447C
- 13Hose 04C122447N
- 15Water Pipe 04C122447B
- 16Seal 04E121687
- 18Bolt N10405604
- 20Bolt N10456004
- 60Clamp N90687001
- 61Clamp N90686701
- 62Clamp N90686902
Vehicle fitment table10
Europe (10)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| Toledo Reference | 2015-2019 | 14 | 1 |
| fabia | 2014-2022 | 14 | 1 |
| Golf Sportsvan 1.6 | 2014-2020 | 20 | 1 |
| Audi A1 Sportback | 2014-2018 | 14 | 1 |
| Polo 1.4 BlueMotion | 2014-2017 | 14 | 1 |
| Golf Estate | 2013-2017 | 20 | 1 |
| Rapid | 2012-2022 | 14 | 1 |
| Octavia | 2012-2017 | 20 | 1 |
| Golf 1.4 BlueMotion | 2012-2017 | 20 | 1 |
| Leon ST Stylance | 2012-2016 | 20 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Coolant Pipe is fitted on: Toledo Reference 2015-2019; fabia 2014-2022; Golf Sportsvan 1.6 2014-2020; Audi A1 Sportback 2014-2018; Polo 1.4 BlueMotion 2014-2017; Golf Estate 2013-2017; Rapid 2012-2022; Octavia 2012-2017; Golf 1.4 BlueMotion 2012-2017; Leon ST Stylance 2012-2016.
