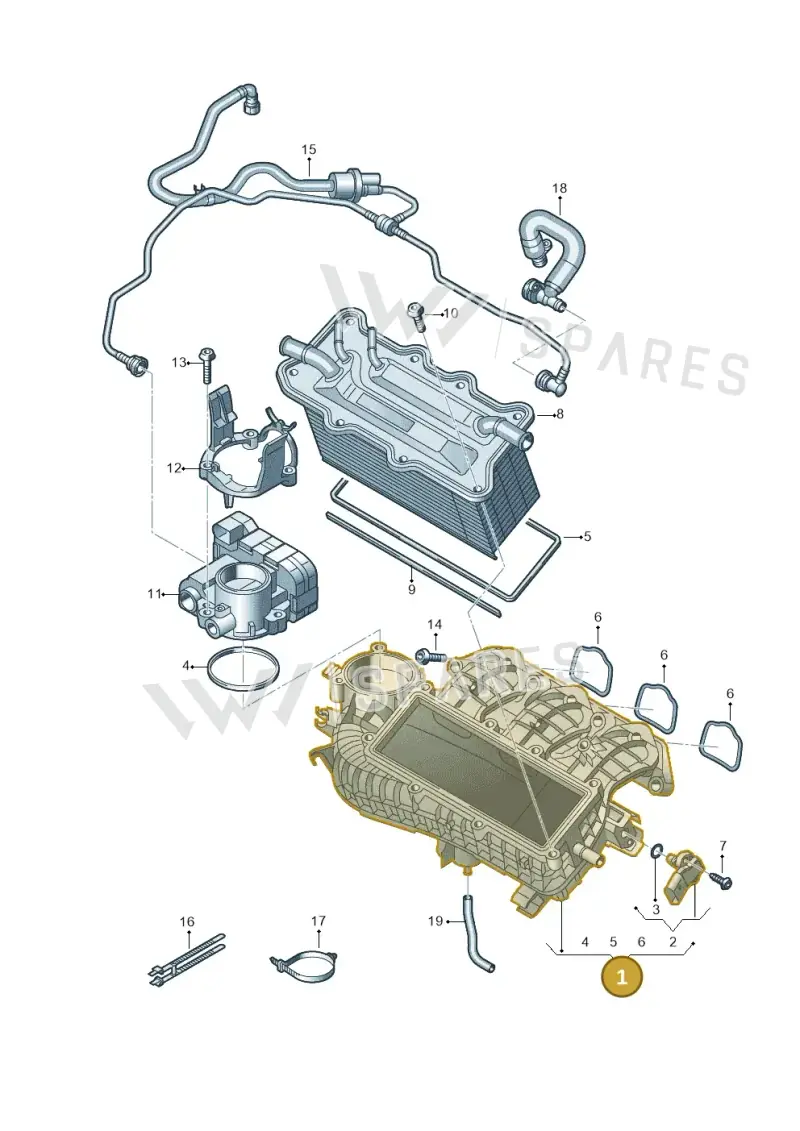

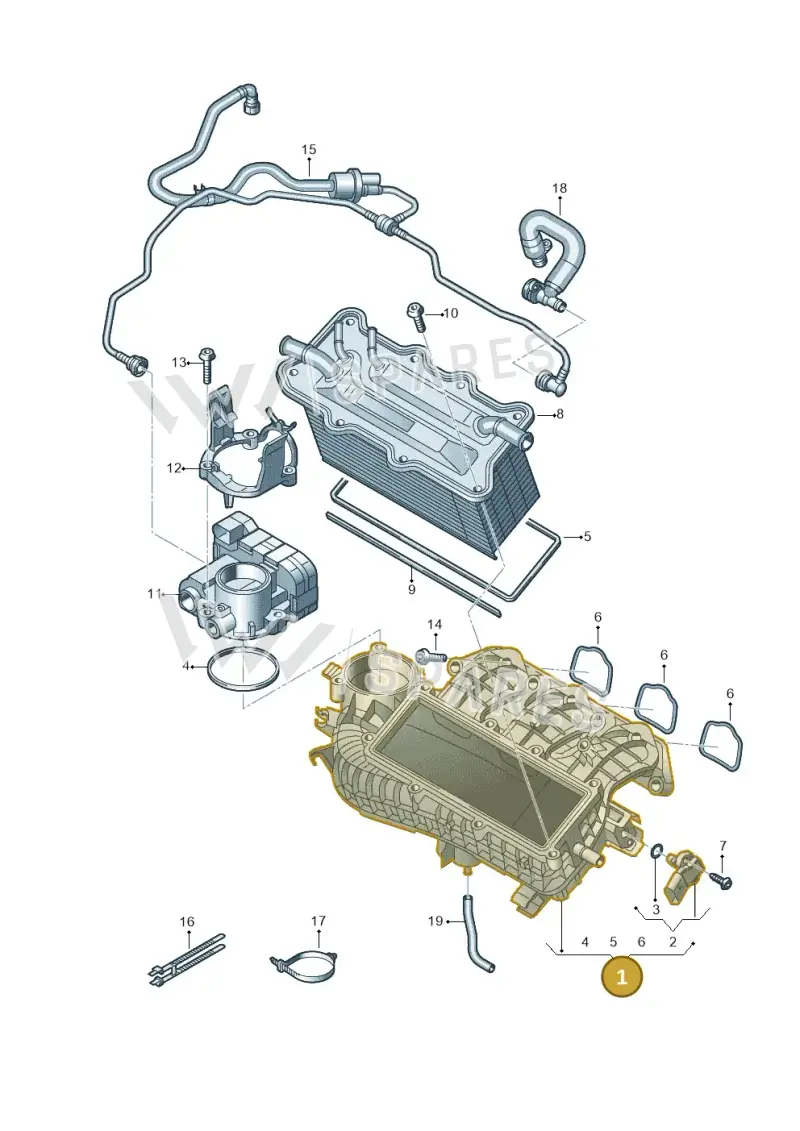

Number 1 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Intake Manifold, part number 04C129709E. This manifold distributes the air-fuel mixture or air to each cylinder of the engine for efficient combustion. It is located at position 1 in the diagram. This intake manifold weighs 1.459 kg and has dimensions of 0.36m x 0.22m x 0.153m. Genuine OEM intake manifolds are engineered for precise air distribution, ensuring optimal performance and fuel economy.
Catalogue entry: INTAKE MAN.
Fitted with: 04C129709F INTAKE MAN, WHT005551A BOLT, N10626101 BOLT, N91097201 SCREW.
Technical details
- Category
- Exhaust
- Country of origin
- Romania
- Customs (HS) code
- 84099100
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 36 × 22 × 15.3 cm
- Shipping weight
- 1.46 kg
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
17 vehiclesIntake Manifold — locate 04C129709E Volkswagen Intake Manifold | Genuine OEM in the official exploded view and explore the surrounding assembly.
Superseded by 04C129709F — the later replacement part.
This part is marked discontinued by the manufacturer (since 2020-10-01); contact us to check current availability.
Parts in this assembly20
- 1Intake Man 04C129709G
- 2Sensor 03G906051E
- 3Seal Ring 036906149D
- 4Seal 04C133073
- 5Seal 03C129717N
- 6Seal 036129717E
- 7Screw N10507201
- 8Cooler 04C145749A
- 9Seal 04E145757
- 10Bolt WHT005551A
- 11Thr Flap 04C133062C
- 13Bolt N10626101
- 14Screw N91097201
- 15Pipe 04C133352BF
- 15Pipe 04C133352BN
- 15Pipe 04C133352AS
- 15Pipe 04C133352N
- 16Binder 4A0820199
- 17Cable Tie 3W0971838
- 19Hose 04C103493H
Compatible / alternative parts(3)
Vehicle fitment table17
Europe (12)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Kamiq | 2019- | 1 | 1 | ||
| Arona FR | 2017- | 1 | 1 | PR:7CP,7MM, | |
| Ibiza FR | 2017- | 1 | 1 | ||
| Polo 1.0 BlueMotion | 2017-2024 | 1 | 1 | ||
| Karoq | 2017-2022 | 1 | 1 | ||
| Octavia | 2017-2020 | 1 | 1 | ||
| Ateca Style | 2016- | 1 | 1 | ||
| Leon ST Stylance | 2016-2020 | 1 | 1 | ||
| Ibiza Stylance | 2015- | 1 | 1 | ||
| Toledo Reference | 2015-2019 | 1 | 1 | ||
| fabia | 2014-2022 | 1 | 1 | ||
| Leon ST Stylance | 2012-2016 | 1 | 1 |
Other markets (5)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Virtus 1,0 | 2022- | 1 | 1 | ||
| Kushaq | 2021- | 1 | 1 | T0R | |
| Slavia | 2021- | 1 | 1 | T0R | |
| Taigun 1.0 | 2021- | 1 | 1 | ||
| Rapid Ambition | 2011-2021 | 1 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
04C129709E Volkswagen Intake Manifold | Genuine OEM is fitted on: Kamiq 2019-; Arona FR 2017-; Ibiza FR 2017-; Polo 1.0 BlueMotion 2017-2024; Karoq 2017-2022; Octavia 2017-2020; Ateca Style 2016-; Leon ST Stylance 2016-2020; Ibiza Stylance 2015-; Toledo Reference 2015-2019; fabia 2014-2022; Leon ST Stylance 2012-2016; Virtus 1,0 2022-; Kushaq 2021-; Slavia 2021-; Taigun 1.0 2021-; Rapid Ambition 2011-2021.
