04C145140A Supply Pipe
- 04C145140AThis pageNot stocked
Apr 2020 - 04C145140CNot stocked
Jan 2024 - 04C145140GCurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for SEAT is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

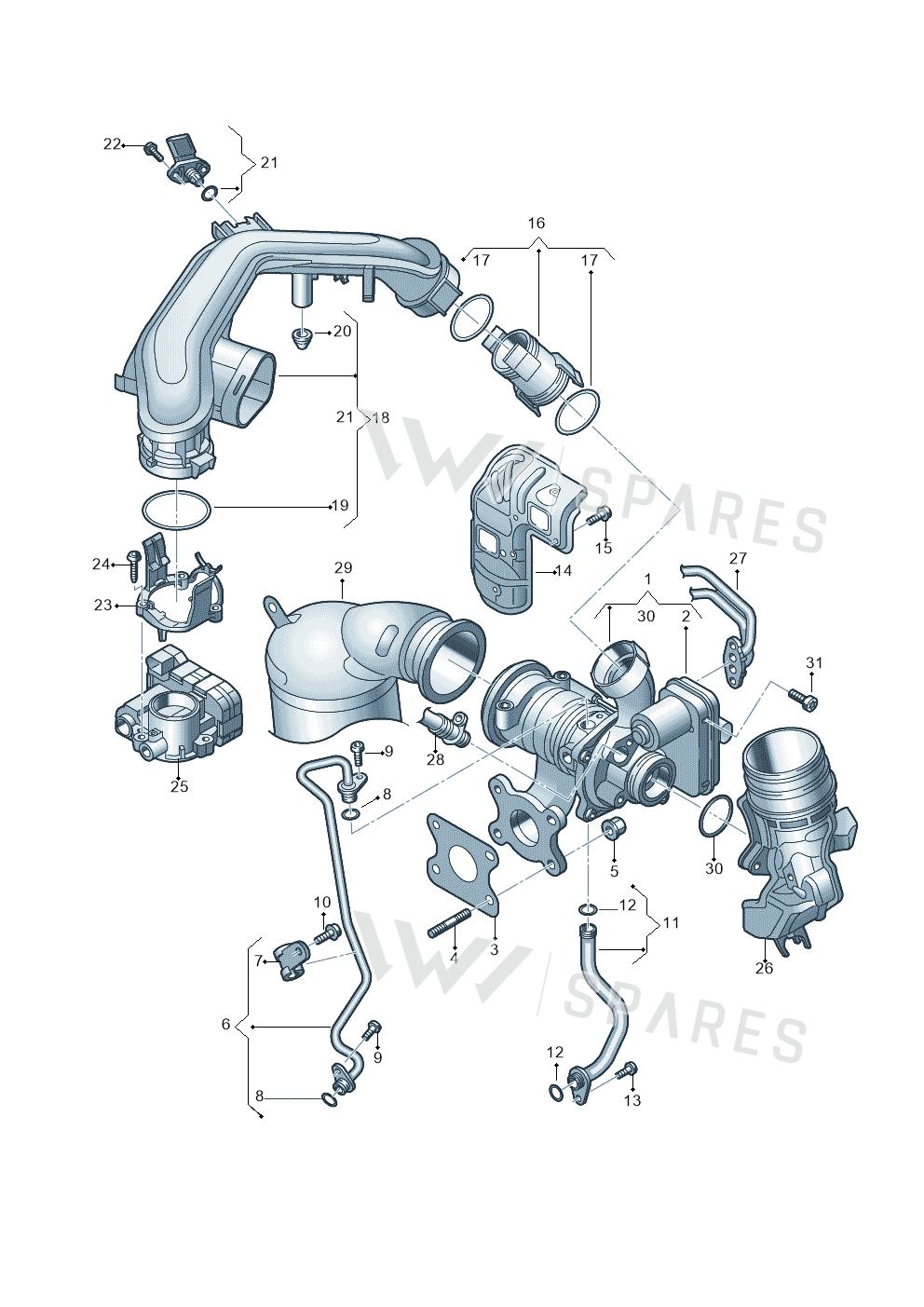

28 vehiclesSupply Pipe — locate Supply Pipe in the official exploded view and explore the surrounding assembly.
Parts in this assembly28
- 1Turbo 04C145703N
- 1Turbo 04C145703Q
- 1Part 04C145702J
- 2Repair Kit 04E198725G
- 3Seal 04C253039D
- 4Bolt N91200201
- 5Collar Nut WHT000001N
- 6Pipe 04C145140C
- 7Clamp 04E145807A
- 8Seal Ring WHT006990
- 9Bolt N10405604
- 10Screw N91026802
- 11Oil Line 04C145735C
- 12Seal Ring WHT005363
- 14Plate 04C253041G
- 15Screw N91108301
- 16Bracket 04E145875F
- 17Seal WHT001386
- 18Pipe 04C145673J
- 18Pipe 04C145673C
- 19Seal Ring WHT007498
- 20Grommet 07C133588G
- 21Sensor 04C906051
- 22Screw N10507201
- 23Part 04C145853A
- 24Bolt N10626101
- 30Seal Ring WHT008384
- 31Screw N10510301
Vehicle fitment table28
Europe (26)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| Arona FR | 2017- | 6 | 1 |
| Ibiza FR | 2017- | 6 | 1 |
| T-Roc BlueMotion | 2017-2024 | 6 | 1 |
| Polo 1.0 BlueMotion | 2017-2024 | 6 | 1 |
| Karoq | 2017-2022 | 6 | 1 |
| Octavia | 2017-2020 | 6 | 1 |
| Ateca Style | 2016- | 6 | 1 |
| up! 1.0 BlueMotion | 2016-2023 | 6 | 1 |
| golf 2.0 | 2016-2020 | 6 | 1 |
| Leon ST Stylance | 2016-2020 | 6 | 1 |
| Audi A3 Sportback | 2016-2020 | 6 | 1 |
| Audi Q2 2.0 TDI | 2016-2018 | 6 | 1 |
| Ibiza Stylance | 2015- | 6 | 1 |
| caddy kombi | 2015-2020 | 6 | 1 |
| golf 1.6 | 2015-2019 | 6 | 1 |
| Toledo Reference | 2015-2019 | 6 | 1 |
| fabia | 2014-2022 | 6 | 1 |
| Golf Sportsvan 1.6 | 2014-2020 | 6 | 1 |
| Audi A1 Sportback | 2014-2018 | 6 | 1 |
| Polo 1.4 BlueMotion | 2014-2017 | 6 | 1 |
| up! 1.0 TSI | 2013-2017 | 6 | 1 |
| Golf Estate | 2013-2017 | 6 | 1 |
| Rapid | 2012-2022 | 6 | 1 |
| Golf 1.4 BlueMotion | 2012-2017 | 6 | 1 |
| Octavia | 2012-2017 | 6 | 1 |
| Leon ST Stylance | 2012-2016 | 6 | 1 |
Other markets (2)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| up! 1.0 TSI | 2017-2021 | 6 | 1 |
| GOLF "ZA." | 2005-2007 | 6 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Supply Pipe is fitted on: Arona FR 2017-; Ibiza FR 2017-; T-Roc BlueMotion 2017-2024; Polo 1.0 BlueMotion 2017-2024; Karoq 2017-2022; Octavia 2017-2020; Ateca Style 2016-; up! 1.0 BlueMotion 2016-2023; golf 2.0 2016-2020; Leon ST Stylance 2016-2020; Audi A3 Sportback 2016-2020; Audi Q2 2.0 TDI 2016-2018; Ibiza Stylance 2015-; caddy kombi 2015-2020; golf 1.6 2015-2019; Toledo Reference 2015-2019; fabia 2014-2022; Golf Sportsvan 1.6 2014-2020; Audi A1 Sportback 2014-2018; Polo 1.4 BlueMotion 2014-2017; up! 1.0 TSI 2013-2017; Golf Estate 2013-2017; Rapid 2012-2022; Golf 1.4 BlueMotion 2012-2017; Octavia 2012-2017; Leon ST Stylance 2012-2016; up! 1.0 TSI 2017-2021; GOLF "ZA." 2005-2007.
