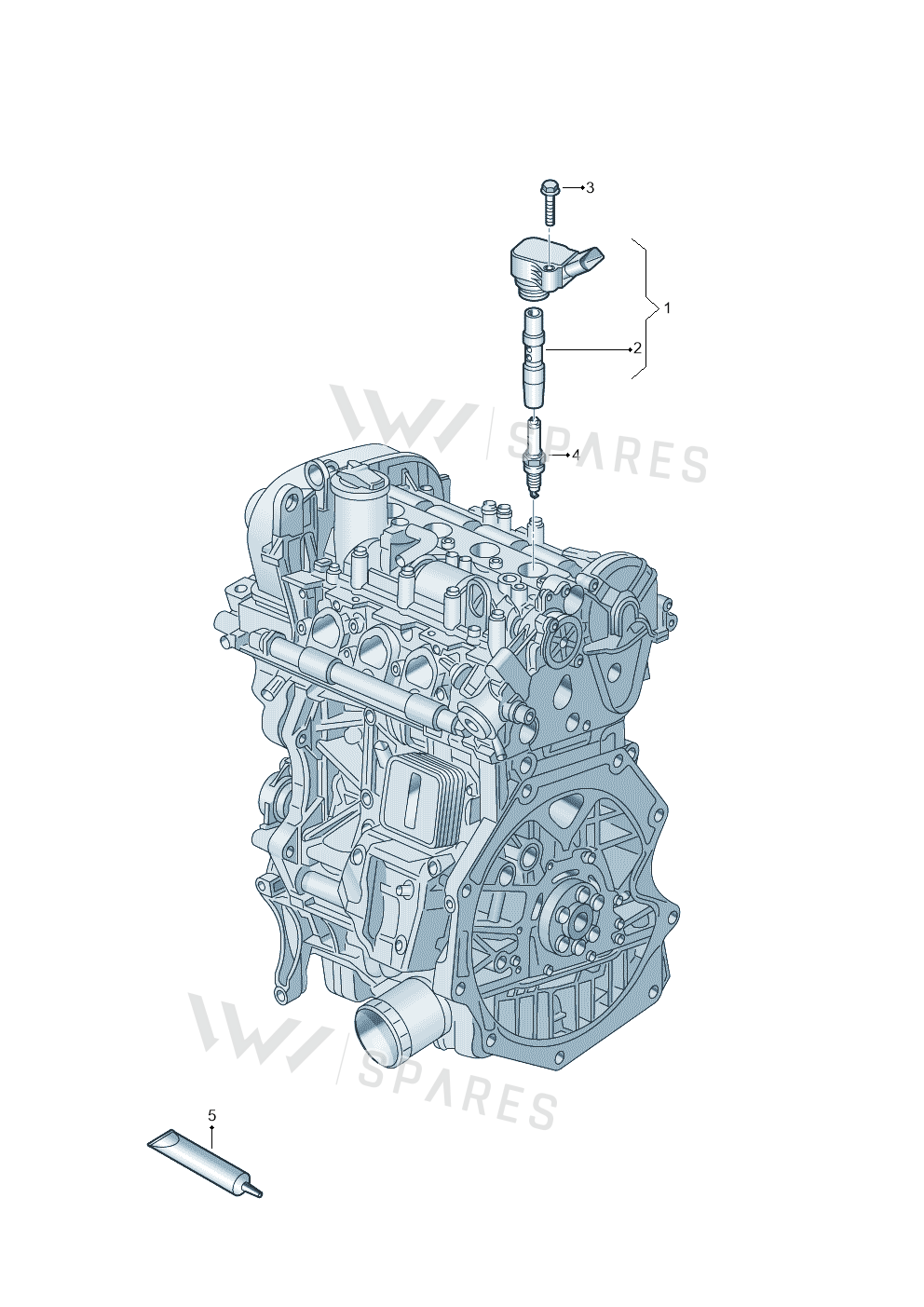

Ignition Coil With Spark Plug Connector exploded parts diagram — Golf Sportsvan 1.6 · 2014-2020, position 1
Exploded view
Golf Sportsvan 1.6 · 2014-2020 · position 1Full diagram ↓
04C905110D

04C905110D Ignition Coil With Spark Plug Connector

£52.77
£43.61 excl. VAT
Supersession road5 numbers since 2011
  1. 04C905110ANot stocked
    Oct 2011
  2. 04C905110DThis pageNot stocked
    Jun 2014
  3. 04C905110HNot stocked
    May 2015
  4. 04C905110JNot stocked
    Oct 2016
  5. 04C905110LCurrent · not stocked
Availability: No longer supplied under this number

Special order item. Delivery time may vary.

About This Part

Superseded part number

This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.

Order Processing & Delivery

This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for SEAT is typically 3–8 business days before dispatch.

Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.

* Delivery times are estimates and may vary based on manufacturer availability and your location.

Verify Vehicle Fitment

To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.

Contact us with your VIN
Genuine OEM Parts
Direct from manufacturer
Secure Ordering
Safe and protected checkout

Parts diagram & fitment

16 vehicles

Ignition Coil With Spark Plug Connector — locate Ignition Coil With Spark Plug Connector in the official exploded view and explore the surrounding assembly.

Parts in this assembly14
Vehicle fitment table16

Europe (16)

VehicleYearsPos.QtyRemarkPR
Golf Sportsvan 1.62014-202014CYVA,CYVB,T5I,T9B,TL1,TP1
Polo 1.4 BlueMotion2014-20171XCHYA,CHYB,TH4,TK8,TP1
Golf 1.4 BlueMotion2014-201714CHPA,CWVADF6,DP7
Scirocco 2.02014-201714CZCA
Audi A3 Cab. 1.42013-201624TK8,TL1
Golf 1.4 BlueMotion2012-201714CHPA,CJZA,D33,D4X,DB0,DB1,DB8,DF6,DG6,DP7,DQ0
Octavia2012-201714P7D
Audi A3 Sportback2012-201614PR:TK8,TM5,TH8,TK8,TM5
Leon ST Stylance2012-20161
Polo2012-201424CPTATK8
Ibiza Reference2012-20121
Mii reference2011-201913
Citigo2011-201913
up! BlueMotion2011-201613CHYA,CHYB,
Audi Q3 quattro2011-201524
Audi A1 Sportback2010-201514CPTATK8

Diagrams & fitment data powered by oemdiagrams.com

Ignition Coil With Spark Plug Connector is fitted on: Golf Sportsvan 1.6 2014-2020; Polo 1.4 BlueMotion 2014-2017; Golf 1.4 BlueMotion 2014-2017; Scirocco 2.0 2014-2017; Audi A3 Cab. 1.4 2013-2016; Golf 1.4 BlueMotion 2012-2017; Octavia 2012-2017; Audi A3 Sportback 2012-2016; Leon ST Stylance 2012-2016; Polo 2012-2014; Ibiza Reference 2012-2012; Mii reference 2011-2019; Citigo 2011-2019; up! BlueMotion 2011-2016; Audi Q3 quattro 2011-2015; Audi A1 Sportback 2010-2015.
