04E103085BE Shaft Oil Seal
Special order item. Delivery time may vary.
About This Part
Discontinued by the manufacturer
This part number has been discontinued and can no longer be ordered. Contact us and we will look for an alternative.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.

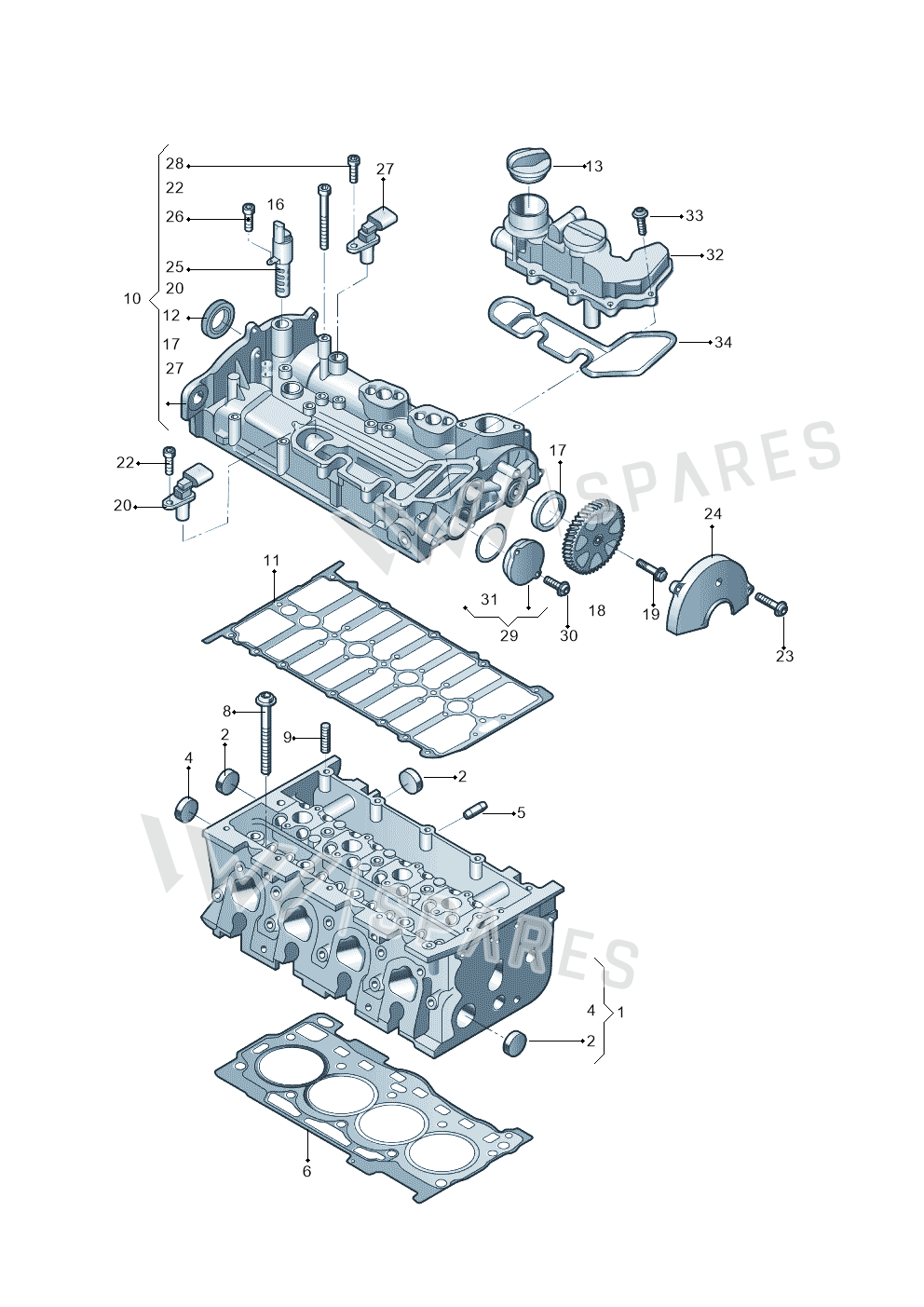

Contact us with your VINParts diagram & fitment
11 vehiclesShaft Oil Seal — locate Shaft Oil Seal in the official exploded view and explore the surrounding assembly.
Parts in this assembly22
- 1Cylinder Head 05E103063M
- 2Cover N01191411
- 4Bungs N90802703
- 5Bolt N91200201
- 6Seal 05E103383B
- 8Screw WHT009325A
- 9Part 026103139
- 10Cylinder Head 05E103469M
- 11Seal 05E103483A
- 12Seal 04E103085BF
- 13Cover 05E103485E
- 16Bolt N91254401
- 18Pulley 04E109111T
- 19Bolt N91145502
- 23Screw N91097201
- 24Protection 05E109121
- 29Cover 05E103335
- 30Bolt N91096701
- 31Seal Ring N90467301
- 32Separator 05E103495AF
- 33Bolt WHT003261
- 34Seal 05E103517F
Vehicle fitment table11
Other markets (11)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| Passat Pro | 2024- | 17 | 1 |
| Lavida XR | 2023- | 17 | 1 |
| Audi A3 | 2020- | 17 | 1 |
| Polo | 2019- | 17 | 1 |
| Audi Q3 2.0 | 2019- | 17 | 1 |
| T-Cross | 2019-2024 | 17 | 1 |
| Audi Q2 1.4 | 2018- | 17 | 1 |
| New Lavida | 2018-2023 | 17 | 1 |
| Tharu | 2018-2023 | 29, 17 | 1 |
| Kamiq | 2018-2023 | 29, 17 | 1 |
| Tiguan | 2016-2023 | 17 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Shaft Oil Seal is fitted on: Passat Pro 2024-; Lavida XR 2023-; Audi A3 2020-; Polo 2019-; Audi Q3 2.0 2019-; T-Cross 2019-2024; Audi Q2 1.4 2018-; New Lavida 2018-2023; Tharu 2018-2023; Kamiq 2018-2023; Tiguan 2016-2023.
