Product overview

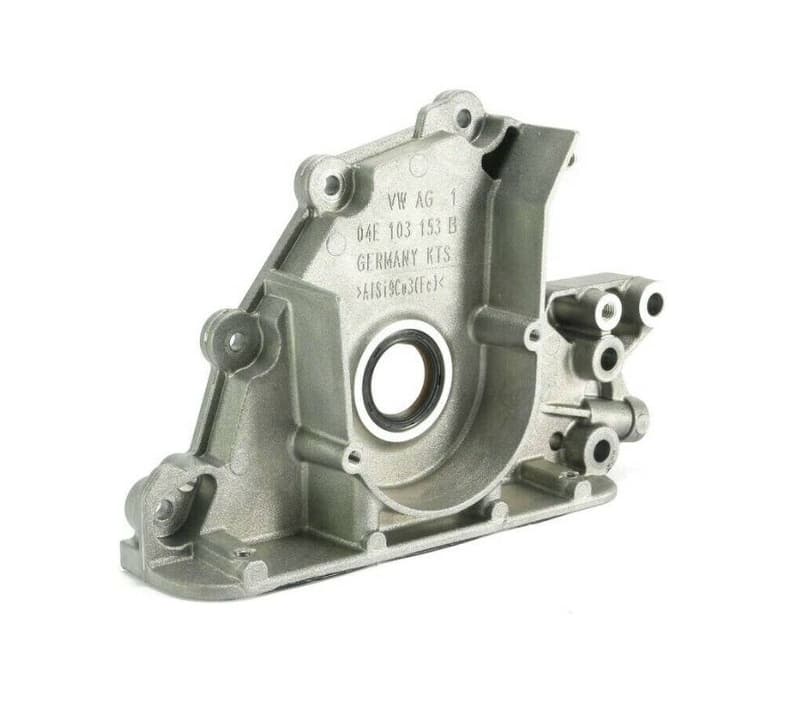

Genuine OEM Audi Crankcase Sealing Flange, part number 04E103153B. This critical engine component is designed to provide a secure and leak-free seal for the crankcase assembly, protecting internal engine components from contaminants and retaining vital lubricants. It is typically located at the front or rear of the engine, housing a crankshaft seal. Constructed from durable cast metal, this flange weighs approximately 0.804 kg and measures 0.25m in length, 0.17m in width, and 0.05m in height. Choosing a genuine OEM crankcase sealing flange ensures exact dimensional accuracy, proper material composition, and reliable sealing performance, which is crucial for preventing costly engine damage from oil leaks.
Catalogue entry: FLANGE front.
Fitted with: N90500605 SCREW, 04C103161E SEAL, N10672001 SCREW, 04C103085A SEAL, 04C103085B SEAL, 04C103085C SEAL, N91108701 BOLT, D176501A1 SEAL, 04C103161D SEAL, 04C103161F SEAL, N10682501 SCREW.
Technical details
- Category
- Gaskets & Seals
- Country of origin
- Czech Republic
- Customs (HS) code
- 84099900
- Manufacturer
- Audi
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 25 × 17 × 5 cm
- Shipping weight
- 0.8 kg
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist

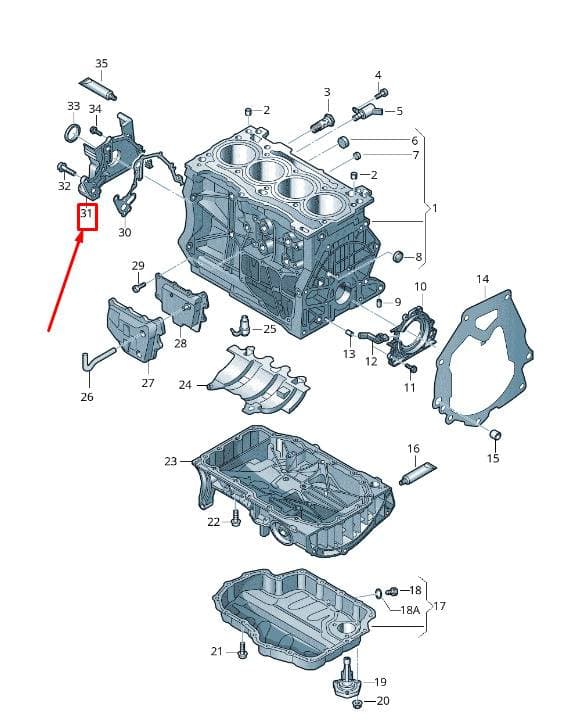

Parts diagram & fitment
81 vehiclesSealing Flange — locate 04E103153B Audi Crankcase Sealing Flange | Engine Seal in the official exploded view and explore the surrounding assembly.
Parts in this assembly31
- 2Sleeve 03C103143
- 3Bolt N91101401
- 4Bolt N91096701
- 5Valve 06E115243H
- 6Cover N0119173
- 7Cover N0119185
- 8Cover N0119098
- 9Part 026103139
- 10Flange 04E103170Q
- 11Bolt N10653301
- 13Part N0432072
- 14Spacer Pl 05E103551
- 15Sleeve 022103139B
- 16Seal D176501A1
- 17Oil Sump 04E103602B
- 18Plug N90288901
- 18ASeal Ring N0138158
- 21Bolt N10748001
- 22Screw N90500605
- 23Oil Sump 04E103601AC
- 24Lock 04E103623S
- 25Vent 04E103157E
- 26Hose 04E103493Q
- 27Cover 04E103729G
- 28Separator 04E103464AH
- 29Bolt N10124309
- 30Seal 04C103161F
- 32Screw N10672001
- 33Seal 04C103085C
- 34Bolt N91108701
- 35Bungs 04E103037D
Compatible / alternative parts(12)
Vehicle fitment table81
Europe (69)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| Kodiaq | 2024- | 31 | 1 | |
| Tiguan 2.0 | 2023- | 31 | 1 | |
| Multivan | 2021- | 31 | 1 | |
| Formentor TSI CUPRA | 2020- | 31 | 1 | |
| Leon style | 2019- | 31 | 1 | |
| Golf 2.0 BlueMotion | 2019-2024 | 31 | 1 | |
| Octavia | 2019-2024 | 31 | 1 | |
| Audi A3 Sportback | 2019-2021 | 41 | 1 | |
| Tarraco FR | 2018-2024 | 31, 41 | 1 | |
| Kodiaq | 2018-2022 | 31 | 1 | |
| Audi Q3 quattro | 2018-2019 | 41 | 1 | |
| T-Roc BlueMotion | 2017-2024 | 31 | 1 | |
| Tiguan 2.0 4Motion | 2017-2024 | 12, 31 | 1 | |
| Arteon | 2017-2023 | 31 | 1 | |
| Karoq | 2017-2022 | 31 | 1 | |
| Octavia | 2017-2020 | 31 | 1 | |
| Audi Q3 1.4 | 2016- | 31, 12 | 1 | |
| Ateca Style | 2016- | 31 | 1 | |
| Tiguan 2.0 4Motion | 2016-2024 | 31 | 1 | |
| Kodiaq | 2016-2024 | 31 | 1 | |
| golf 2.0 | 2016-2020 | 31 | 1 | |
| Audi A3 Sportback | 2016-2020 | 31, 12 | 1 | |
| Audi A3 Cabrio | 2016-2020 | 12 | 1 | |
| Audi A5 Sportback | 2016-2020 | 31 | 1 | |
| Leon ST Stylance | 2016-2020 | 31 | 1 | |
| Beetle | 2016-2019 | 31 | 1 | |
| new beetle cabriolet | 2016-2019 | 31 | 1 | |
| Audi Q2 2.0 TDI | 2016-2018 | 41 | 1 | |
| Ibiza Stylance | 2015- | 31 | 1 | |
| Touran 2,0 BlueMotion | 2015-2024 | 31 | 1 | |
| Superb Combi | 2015-2024 | 31 | 1 | |
| Sharan BlueMotion | 2015-2022 | 31 | 1 | |
| Alhambra Stylance | 2015-2022 | 31 | 1 | |
| caddy kombi | 2015-2020 | 31 | 1 | |
| golf 1.6 | 2015-2019 | 31 | 1 | |
| audi a4 2.0 | 2015-2019 | 31 | 1 | |
| Toledo Reference | 2015-2019 | 31 | 1 | |
| jetta 2.0 | 2015-2015 | 31 | 1 | |
| Passat saloon | 2014-2024 | 31 | 1 | |
| fabia | 2014-2022 | 31 | 1 | |
| Golf Sportsvan 1.6 | 2014-2020 | 31 | 1 | |
| Audi Q3 2.0 TDI | 2014-2019 | 12, 31 | 1 | |
| Jetta 1.6 | 2014-2018 | 31 | 1 | |
| Audi A1 Sportback | 2014-2018 | 12 | 1 | |
| Polo 1.4 BlueMotion | 2014-2017 | 31 | 1 | |
| Golf 1.4 BlueMotion | 2014-2017 | 31 | 1 | |
| Scirocco 2.0 | 2014-2017 | 31 | 1 | |
| jetta | 2014-2017 | 31 | 1 | |
| Golf Estate 1.4 | 2014-2017 | 31 | 1 | |
| Jetta 1.4 | 2014-2017 | 31 | 1 | |
| Golf Estate | 2013-2017 | 31 | 1 | |
| Yeti | 2013-2017 | 31 | 1 | |
| Audi A3 Cab. 1.4 | 2013-2016 | 12 | 1 | |
| Rapid | 2012-2022 | 12, 31 | 1 | |
| Golf 1.4 BlueMotion | 2012-2017 | 31 | 1 | |
| Octavia | 2012-2017 | 31 | 1 | |
| Audi A3 Sportback | 2012-2016 | 31, 12 | 1 | |
| Leon ST Stylance | 2012-2016 | 31, 12 | 1 | |
| Toledo Reference | 2012-2015 | 31 | 1 | |
| Polo | 2012-2014 | 31 | 1 | DF6 |
| Ibiza Reference | 2012-2012 | 12 | 1 | DF6 |
| Tiguan 4Motion | 2011-2018 | 31 | 1 | |
| new beetle | 2011-2016 | 31 | 1 | |
| new beetle cabriolet | 2011-2016 | 31 | 1 | |
| Golf Cabriolet | 2011-2016 | 31 | 1 | |
| Passat CC | 2011-2016 | 31 | 1 | |
| Audi Q3 quattro | 2011-2015 | 12 | 1 | |
| Audi A1 Sportback | 2010-2015 | 12 | 1 | DF6 |
| jetta | 2010-2014 | 31 | 1 |
Other markets (12)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| Taos 1.4 | 2021-2023 | 31 | 1 | |
| Nivus | 2020- | 31 | 1 | |
| Taos 1.4 | 2020-2024 | 31 | 1 | |
| Polo 1.6 | 2020-2022 | 31 | 1 | |
| T-Cross 1,0 | 2019- | 31 | 1 | |
| Jetta 1.4 | 2017-2024 | 31 | 1 | |
| Audi A4L 2.0 | 2016- | 31 | 1 | |
| Tiguan 2.0 4Motion | 2016-2022 | 31 | 1 | |
| Polo 1.6 | 2015-2020 | 31 | 1 | |
| Audi A3 Limousine 2.0 | 2015-2016 | 31 | 1 | |
| POLO HATCH "ZA"06> | 2005- | 31 | 1 | |
| GOLF "ZA." | 2005-2007 | 31 | 1 |
