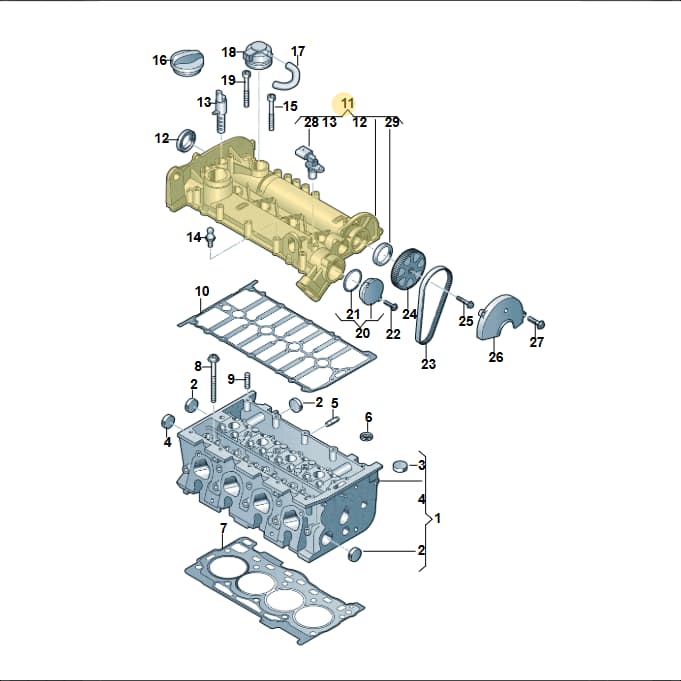

Number 11 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Cylinder-Head Cover With Camshaft, part number 04E103469DS. This component serves as the upper cover for the cylinder head and integrates the camshaft. It plays a crucial role in sealing the engine's combustion chambers and housing the valve train components. Manufactured with precise tolerances to ensure proper sealing and engine performance.
Technical details
- Category
- Engine
- Customs (HS) code
- 84099100
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 44 × 27 × 14 cm
- Shipping weight
- 7.19 kg
Parts diagram & fitment
3 vehiclesCylinder-head Cover With Camshaft — locate 04E103469DS Volkswagen Cylinder-Head Cover With Camshaft | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly(28)
- 1Cylinder Head 04E103061
- 1Cylinder Head 04E103061X
- 1Cylinder Head 04E103068Q
- 1Cylinder Head 04E103068QX
- 2Cover N01190111
- 4Cover N01191410
- 5Bolt N10087802
- 7Seal 04E103383CA
- 8Screw WHT007089
- 9Part 026103139
- 10Seal 04E103483AE
- 10Seal 04E103483H
- 11Cylinder Head 04E103469EA
- 12Seal 04E103085AF
- 14Ball Screw WHT000355
- 15Bolt N91254401
- 16Cover 04E103485A
- 16Cover 04E103485B
- 17Hose 04E103560
- 18Valve 04E103175
- 19Bolt N91254301
- 20Cover 04E103111A
- 21Seal Ring N90344501
- 22Bolt N91096701
- 24Pulley 04E109111M
- 25Bolt N91145502
- 26Protection 04C109121E
- 29Seal 04E103085AC
Diagrams & fitment data powered by oemdiagrams.com
04E103469DS Volkswagen Cylinder-Head Cover With Camshaft | Genuine OEM is fitted on: Sharan BlueMotion 2015-2022; caddy kombi 2015-2020; Alhambra Stylance 2015-2022.
