04E103493H Vent Hose
- 04E103493HThis pageNot stocked
Jul 2016 - 04E103493AACurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for SEAT is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

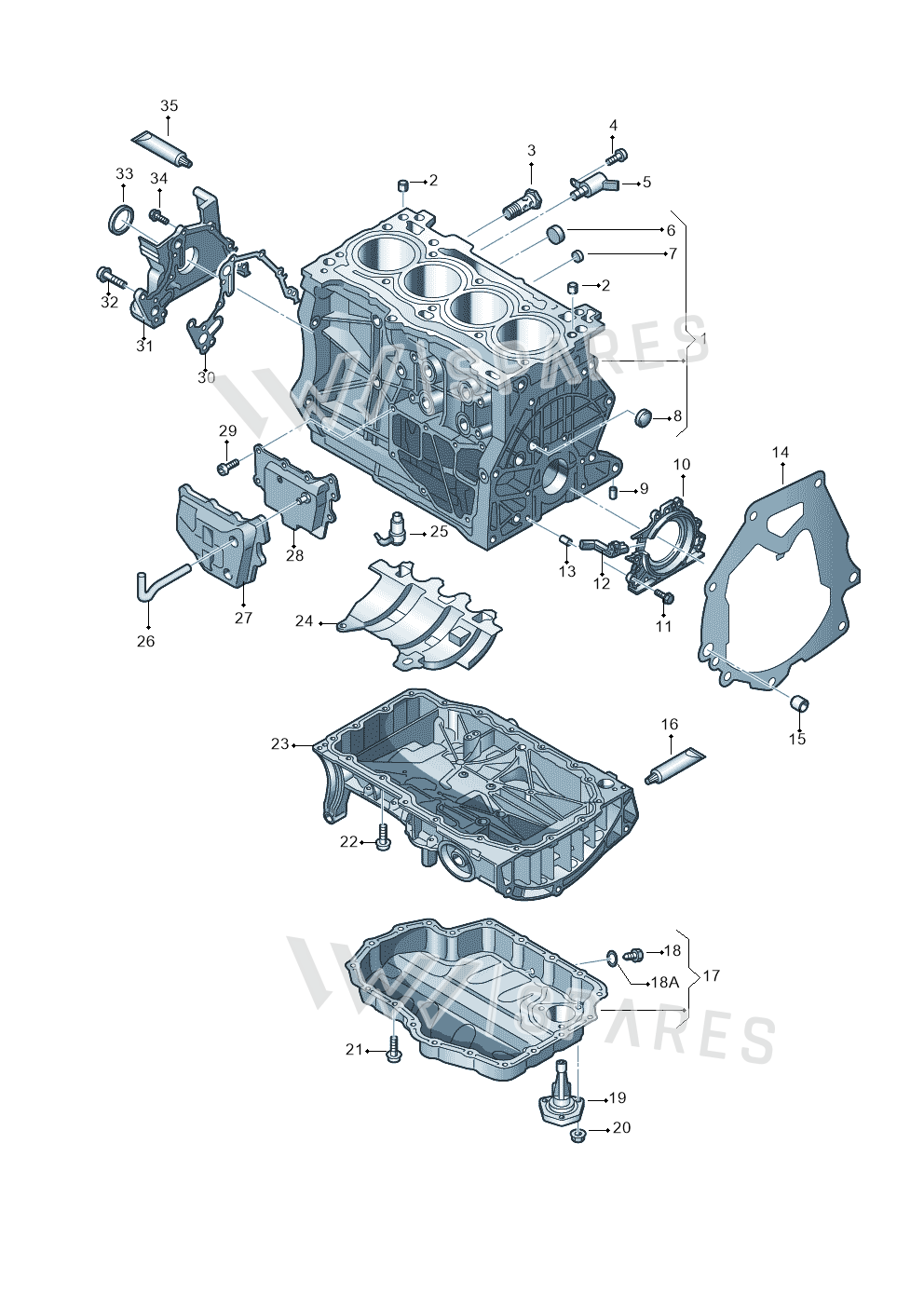

48 vehiclesVent Hose — locate Vent Hose in the official exploded view and explore the surrounding assembly.
Parts in this assembly31
- 1Crankcase 04E103101AF
- 2Sleeve 03C103143
- 3Cover N0119173
- 4Bolt N91096701
- 5Valve 06E115243H
- 7Cover N0119185
- 8Cover N0119098
- 9Cylinder Pin 026103139
- 10Flange 04E103170F
- 11Bolt N10653301
- 13Cylinder Pin N0432072
- 14Spacer Pl 04E103551B
- 14Spacer Pl 04E103551AE
- 16Seal D176501A1
- 17Oil Sump 04E103600A
- 17Oil Sump 04E103600R
- 18Plug N90288901
- 18ASeal Ring N0138157
- 21Bolt N10748001
- 22Screw N90500605
- 23Oil Sump 04E103601R
- 24Lock 04E103623B
- 25Nozzle 04E103157M
- 27Cover 04E103729B
- 28Separator 04E103464AB
- 29Bolt N90737803
- 30Seal 04E103161A
- 31Flange 04E103153C
- 32Screw N10672001
- 33Seal 04E103085F
- 34Bolt N91108701
Vehicle fitment table48
Europe (34)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Tarraco FR | 2018-2024 | 26 | 1 | ||
| Audi Q3 quattro | 2018-2019 | 36 | 1 | ||
| Octavia | 2017-2020 | 24, 26 | 1 | ||
| Kodiaq | 2016-2024 | 26 | 1 | ||
| Audi A3 Sportback | 2016-2020 | 26 | 1 | CXSA | |
| Ibiza Stylance | 2015- | 24, 26 | 1 | ||
| Superb Combi | 2015-2024 | 26 | 1 | ||
| Toledo Reference | 2015-2019 | 24, 26 | 1 | ||
| Passat saloon | 2014-2024 | 26 | 1 | ||
| fabia | 2014-2022 | 24 | 1 | ||
| Golf Sportsvan 1.6 | 2014-2020 | 24, 26 | 1 | ||
| Audi Q3 2.0 TDI | 2014-2019 | 30 | 1 | ||
| Audi A1 Sportback | 2014-2018 | 30 | 1 | ||
| Polo 1.4 BlueMotion | 2014-2017 | 24, 26 | 1 | ||
| Golf 1.4 BlueMotion | 2014-2017 | 26, 24 | 1 | ||
| Scirocco 2.0 | 2014-2017 | 26 | 1 | ||
| jetta | 2014-2017 | 24, 26 | 1 | ||
| Jetta 1.4 | 2014-2017 | 26 | 1 | ||
| Golf Estate | 2013-2017 | 24, 26 | 1 | ||
| Yeti | 2013-2017 | 24, 26 | 1 | ||
| Audi A3 Cab. 1.4 | 2013-2016 | 30 | 1 | ||
| Rapid | 2012-2022 | 24, 30 | 1 | ||
| Golf 1.4 BlueMotion | 2012-2017 | 24, 26 | 1 | ||
| Octavia | 2012-2017 | 24, 26 | 1 | ||
| Audi A3 Sportback | 2012-2016 | 24, 30 | 1 | ||
| Audi Q3 1.4 | 2012-2016 | 26 | 1 | ||
| Leon ST Stylance | 2012-2016 | 26, 24 | 1 | ||
| Toledo Reference | 2012-2015 | 24, 26 | 1 | ||
| Polo | 2012-2014 | 26 | 1 | DF6 | |
| Ibiza Reference | 2012-2012 | 30 | 1 | DF6 | |
| Golf Cabriolet | 2011-2016 | 26 | 1 | ||
| Audi Q3 quattro | 2011-2015 | 30 | 1 | ||
| Audi A1 Sportback | 2010-2015 | 30 | 1 | DF6 | |
| jetta | 2010-2014 | 26 | 1 |
Other markets (14)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Golf 1.5 | 2020- | 26 | 1 | ||
| Polo 1.6 | 2020-2022 | 26 | 1 | ||
| jetta | 2019- | 26 | 1 | ||
| Tayron | 2018- | 26 | 1 | ||
| T-Roc | 2018- | 26 | 1 | ||
| Sagitar 1.2T | 2018- | 26 | 1 | ||
| Audi Q2 1.4 | 2018- | 26 | 1 | ||
| Audi A3 Limousine 2.0 | 2017-2021 | 26 | 1 | ||
| Audi Q3 quattro 2.0 | 2016-2019 | 26 | 1 | ||
| Golf Sportsvan 1.4 | 2015-2020 | 26 | 1 | ||
| Audi A3 Sportback 1.4 | 2014- | 26 | 1 | ||
| Sagitar | 2014-2019 | 26 | 1 | ||
| golf 1.4 | 2013-2020 | 26 | 1 | ||
| Jetta 1.6 | 2012-2019 | 26 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Vent Hose is fitted on: Tarraco FR 2018-2024; Audi Q3 quattro 2018-2019; Octavia 2017-2020; Kodiaq 2016-2024; Audi A3 Sportback 2016-2020; Ibiza Stylance 2015-; Superb Combi 2015-2024; Toledo Reference 2015-2019; Passat saloon 2014-2024; fabia 2014-2022; Golf Sportsvan 1.6 2014-2020; Audi Q3 2.0 TDI 2014-2019; Audi A1 Sportback 2014-2018; Polo 1.4 BlueMotion 2014-2017; Golf 1.4 BlueMotion 2014-2017; Scirocco 2.0 2014-2017; jetta 2014-2017; Jetta 1.4 2014-2017; Golf Estate 2013-2017; Yeti 2013-2017; Audi A3 Cab. 1.4 2013-2016; Rapid 2012-2022; Golf 1.4 BlueMotion 2012-2017; Octavia 2012-2017; Audi A3 Sportback 2012-2016; Audi Q3 1.4 2012-2016; Leon ST Stylance 2012-2016; Toledo Reference 2012-2015; Polo 2012-2014; Ibiza Reference 2012-2012; Golf Cabriolet 2011-2016; Audi Q3 quattro 2011-2015; Audi A1 Sportback 2010-2015; jetta 2010-2014; Golf 1.5 2020-; Polo 1.6 2020-2022; jetta 2019-; Tayron 2018-; T-Roc 2018-; Sagitar 1.2T 2018-; Audi Q2 1.4 2018-; Audi A3 Limousine 2.0 2017-2021; Audi Q3 quattro 2.0 2016-2019; Golf Sportsvan 1.4 2015-2020; Audi A3 Sportback 1.4 2014-; Sagitar 2014-2019; golf 1.4 2013-2020; Jetta 1.6 2012-2019.
