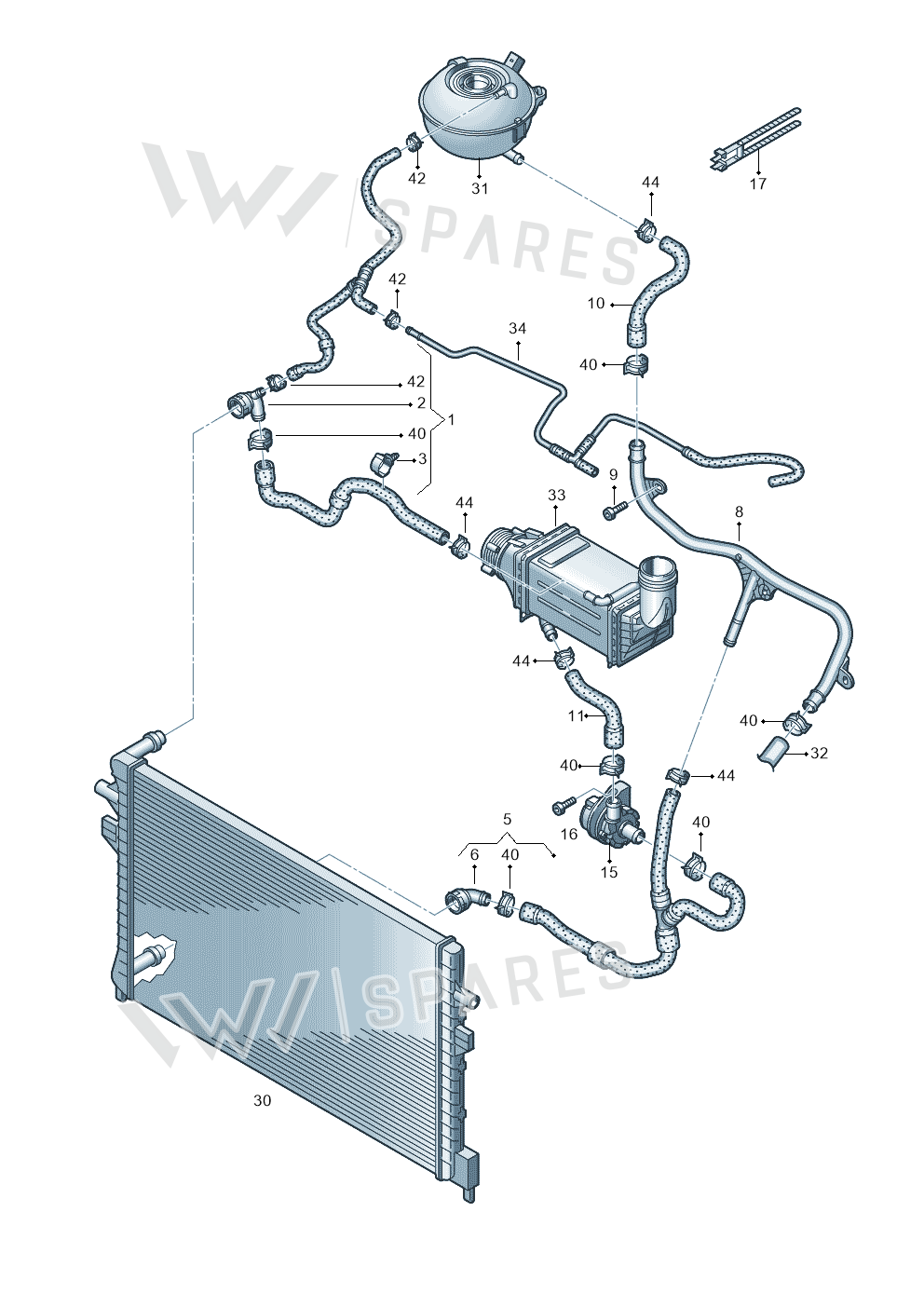

Coolant Pipe exploded parts diagram — Audi A1 sportback 1.0 · 2018-, position 8
Exploded view
Audi A1 sportback 1.0 · 2018- · position 8Full diagram ↓
04E121070AJ

04E121070AJ Coolant Pipe

£43.75
£36.16 excl. VAT
Supersession roadoldest to newest
  1. 04E121070AJThis pageNot stocked
    Feb 2019
  2. 05E121070Current number
Current part number05E121070What the manufacturer supplies todayOrder
Availability: No longer supplied under this number

Special order item. Delivery time may vary.

About This Part

Superseded part number

This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.

Order Processing & Delivery

This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for SKODA is typically 3–8 business days before dispatch.

Handling time for Skoda: 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.

* Delivery times are estimates and may vary based on manufacturer availability and your location.

Verify Vehicle Fitment

To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.

Contact us with your VIN
Genuine OEM Parts
Direct from manufacturer
Secure Ordering
Safe and protected checkout

Shipping details

Shipping weight
133 g
Shipping size (L × W × H)
46 × 21 × 11 cm
Country of origin
Germany
Customs (HS) code
40093100

Parts diagram & fitment

19 vehicles

Coolant Pipe — locate Coolant Pipe in the official exploded view and explore the surrounding assembly.

Parts in this assembly19
Vehicle fitment table19

Europe (19)

VehicleYearsPos.Qty
Audi A1 sportback 1.02018-81
Tarraco FR2018-202481
Audi Q3 quattro2018-201981
Arona FR2017-81
Ibiza FR2017-81
T-Roc BlueMotion2017-202481
Karoq2017-202281
Octavia2017-202081
Ateca Style2016-81
Tiguan 2.0 4Motion2016-202481
Kodiaq2016-202481
Audi A3 Sportback2016-202081
Audi A3 Cabrio2016-202081
Leon ST Stylance2016-202081
golf 2.02016-202081
Audi Q2 2.0 TDI2016-201881
Touran 2,0 BlueMotion2015-202481
Superb Combi2015-202481
Golf Sportsvan 1.62014-202081

Diagrams & fitment data powered by oemdiagrams.com

Coolant Pipe is fitted on: Audi A1 sportback 1.0 2018-; Tarraco FR 2018-2024; Audi Q3 quattro 2018-2019; Arona FR 2017-; Ibiza FR 2017-; T-Roc BlueMotion 2017-2024; Karoq 2017-2022; Octavia 2017-2020; Ateca Style 2016-; Tiguan 2.0 4Motion 2016-2024; Kodiaq 2016-2024; Audi A3 Sportback 2016-2020; Audi A3 Cabrio 2016-2020; Leon ST Stylance 2016-2020; golf 2.0 2016-2020; Audi Q2 2.0 TDI 2016-2018; Touran 2,0 BlueMotion 2015-2024; Superb Combi 2015-2024; Golf Sportsvan 1.6 2014-2020.
