04E122447M Coolant Hose
- 04E122447MThis pageNot stocked
Sep 2016 - 04E122447BPNot stocked
Jul 2016 - 04E122447CCCurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for SEAT is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

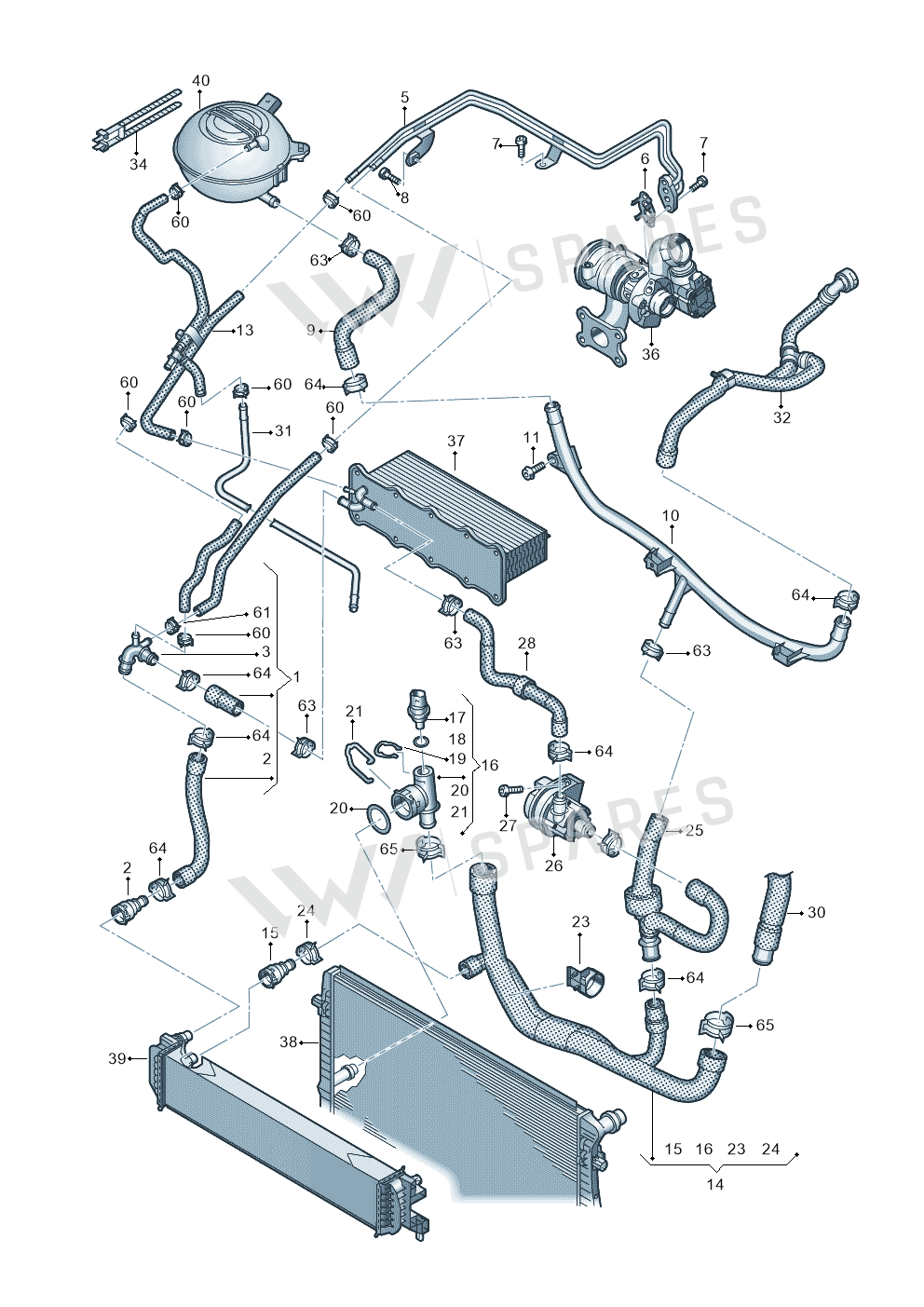

5 vehiclesCoolant Hose — locate Coolant Hose in the official exploded view and explore the surrounding assembly.
Parts in this assembly29
- 1Hose 7N0122101P
- 2Coupl Piece 3B0122291B
- 3Tpiece 5Q0121087H
- 5Water Pipe 04E121497J
- 6Seal 04E121687
- 7Bolt N10405604
- 8Screw N10456201
- 9Hose 5N0121109F
- 10Water Pipe 04E121070AH
- 10Water Pipe 04E121070AC
- 11Bolt N10714801
- 14Hose 7N0121049H
- 16Coupl Piece 7N0122291R
- 17Sender 06A919501A
- 18Seal Ring N90316801
- 19Spring 032121142
- 20Seal Ring N90765301
- 21Spring 1J0121142
- 23Bracket 1K0121093B
- 24Clamp N90687001
- 25Hose 7N0122051R
- 26Water Pump 5G0965567A
- 27Bolt N10413405
- 28Hose 5Q0122063
- 34Binder 4A0820199
- 60Clamp N90686701
- 61Clamp N90770201
- 63Clamp N90686902
- 65Clamp N90687201
Vehicle fitment table5
Europe (5)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| Sharan BlueMotion | 2015-2022 | 13 | 1 | |
| Alhambra Stylance | 2015-2022 | 13 | 1 | |
| Audi Q3 2.0 TDI | 2014-2019 | 20, 12 | 1 | |
| Tiguan 4Motion | 2011-2018 | 3 | 1 | |
| Audi Q3 quattro | 2011-2015 | 20, 12 | 1 | TL1 |
Diagrams & fitment data powered by oemdiagrams.com
Coolant Hose is fitted on: Sharan BlueMotion 2015-2022; Alhambra Stylance 2015-2022; Audi Q3 2.0 TDI 2014-2019; Tiguan 4Motion 2011-2018; Audi Q3 quattro 2011-2015.
