04E127026AM Fuel Pump
- 04E127026AKNot stocked
Sep 2018 - 04E127026AMThis pageNot stocked
Jul 2019 - 04E127026BJCurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VOLKSWAGEN is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

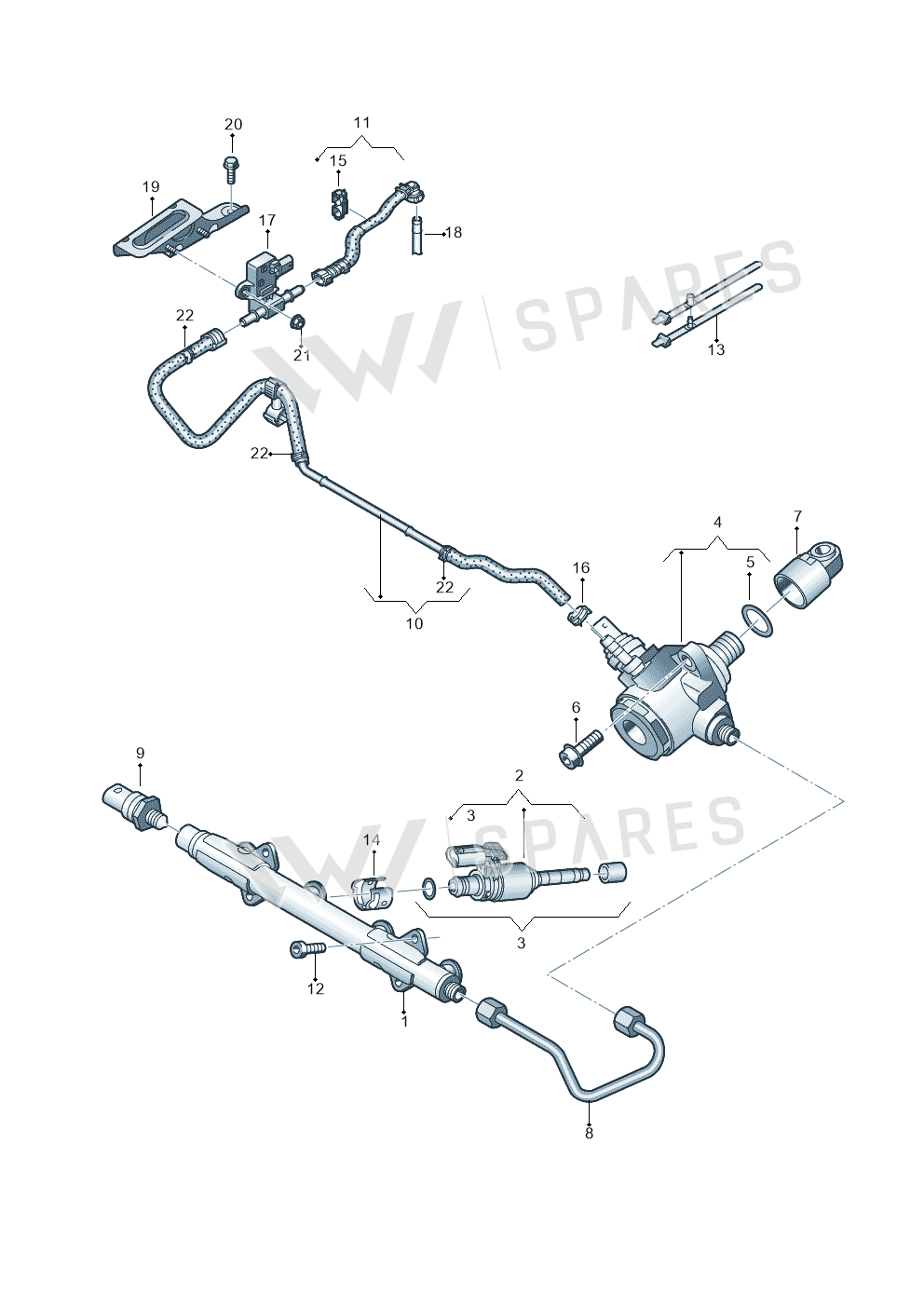

3 vehiclesFuel Pump — locate Fuel Pump in the official exploded view and explore the surrounding assembly.
Parts in this assembly22
- 1Rail 04E133320AC
- 2Valve 04E906036AR
- 3Repair Kit 04E998907A
- 4Pump 04E127026AK
- 5Seal Ring WHT005184
- 6Screw N91128701
- 7Tappets 06L109311
- 8Pipe 04C130241E
- 9Sensor 04C906054C
- 9Sensor 04C906054B
- 10Fuel Line 04E133723CL
- 11Fuel Line 04E133723CJ
- 12Screw N10653601
- 13Binder 4A0820199
- 14Support Element 04E133036C
- 15Bracket 5Q0133687C
- 16Clamp N90686701
- 17Sensor 06K907811B
- 19Retaining 04E907332B
- 20Bolt N10653301
- 21Collar Nut N01508210
- 22Clamp N91020301
Vehicle fitment table3
Europe (2)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| Audi Q3 1.4 | 2016- | 4 | 1 |
| golf 1.6 | 2015-2019 | 4 | 1 |
Other markets (1)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| Audi A3 Limousine 2.0 | 2015-2016 | 4 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Fuel Pump is fitted on: Audi Q3 1.4 2016-; golf 1.6 2015-2019; Audi A3 Limousine 2.0 2015-2016.
