04E145641 Pipe Union
- 04E145641This pageNot stocked
May 2024 - 04E145641LCurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

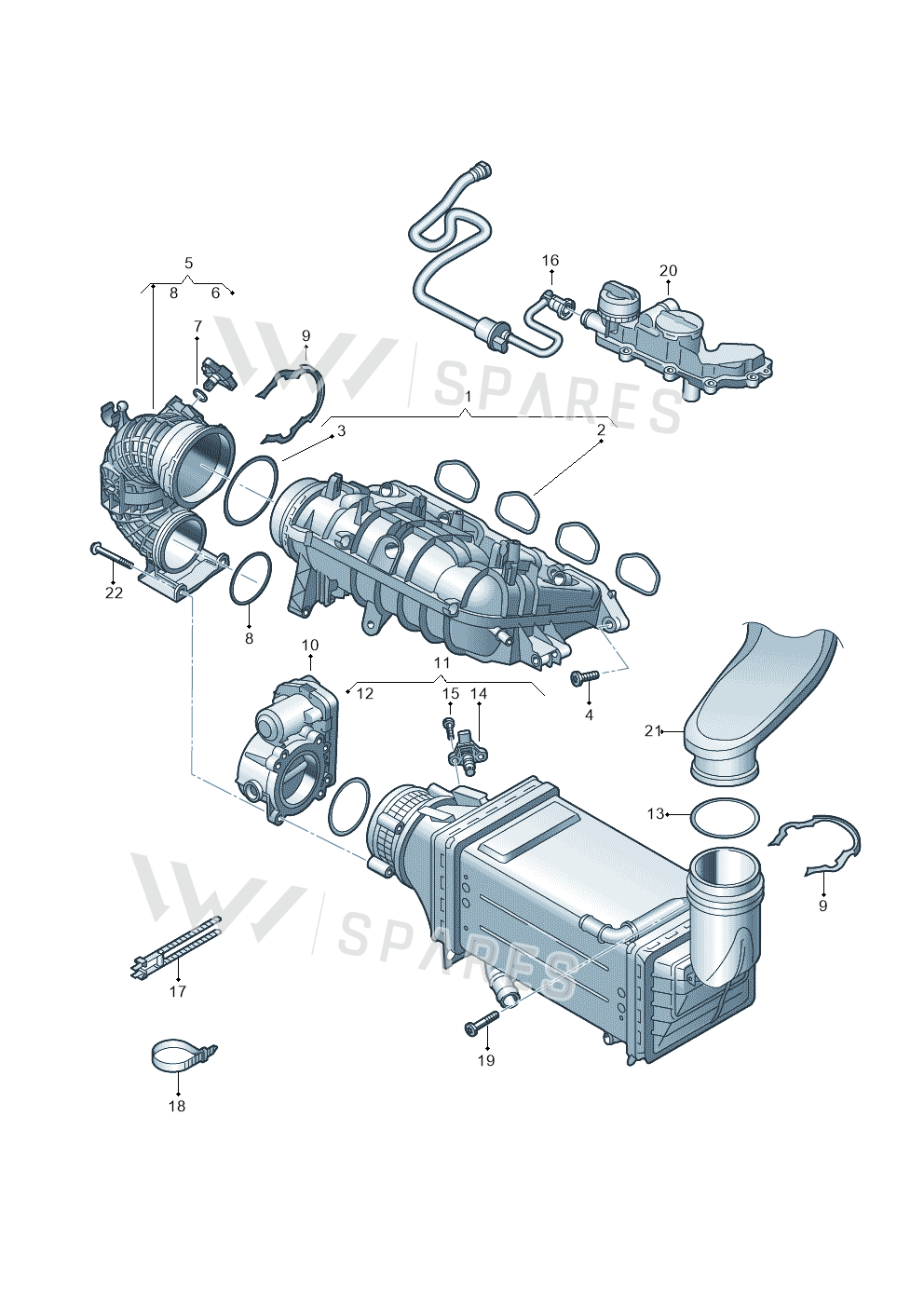

33 vehiclesPipe Union — locate Pipe Union in the official exploded view and explore the surrounding assembly.
Parts in this assembly18
- 1Intake Man 05E129709A
- 2Seal 036129717E
- 3Seal Ring WHT003247
- 4Screw N91097201
- 5Connection 04E145641L
- 6Sensor 04E906051H
- 8Seal Ring WHT006226B
- 9Part 04E145853E
- 10Thr Flap 04E133062T
- 11Cooler 04E145785E
- 12Seal 036133073
- 14Sensor 04E906051J
- 15Screw N10473402
- 16Hose 05E133366C
- 17Binder 4A0820199
- 18Cable Tie WHT008084
- 19Bolt N10626101
- 21Pipe 05E145673E
Vehicle fitment table33
Europe (29)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Caddy Maxi Kombi | 2020-2024 | 5 | 1 | ||
| Kamiq | 2019- | 5 | 1 | ||
| Leon style | 2019- | 5 | 1 | ||
| Golf 2.0 BlueMotion | 2019-2024 | 5 | 1 | ||
| Octavia | 2019-2024 | 5 | 1 | ||
| Audi A3 Sportback | 2019-2021 | 5 | 1 | ||
| Audi A1 sportback 1.0 | 2018- | 5 | 1 | ||
| Tarraco FR | 2018-2024 | 5 | 1 | ||
| Audi Q3 quattro | 2018-2019 | 5 | 1 | ||
| Arona FR | 2017- | 5 | 1 | ||
| Ibiza FR | 2017- | 5 | 1 | ||
| T-Roc BlueMotion | 2017-2024 | 5 | 1 | ||
| Tiguan 2.0 4Motion | 2017-2024 | 5 | 1 | ||
| Polo 1.0 BlueMotion | 2017-2024 | 5 | 1 | ||
| Arteon | 2017-2023 | 5 | 1 | ||
| Karoq | 2017-2022 | 5 | 1 | ||
| Octavia | 2017-2020 | 5 | 1 | ||
| Ateca Style | 2016- | 5 | 1 | PR: 7CP | |
| Tiguan 2.0 4Motion | 2016-2024 | 5 | 1 | ||
| Kodiaq | 2016-2024 | 5 | 1 | ||
| golf 2.0 | 2016-2020 | 5 | 1 | ||
| Audi A3 Sportback | 2016-2020 | 5 | 1 | DADA | |
| Audi A3 Cabrio | 2016-2020 | 5 | 1 | PR:7MV,7CP | 7CP |
| Leon ST Stylance | 2016-2020 | 5 | 1 | ||
| Audi Q2 2.0 TDI | 2016-2018 | 5 | 1 | ||
| Touran 2,0 BlueMotion | 2015-2024 | 5 | 1 | ||
| Superb Combi | 2015-2024 | 5 | 1 | ||
| Passat saloon | 2014-2024 | 5 | 1 | ||
| Golf Sportsvan 1.6 | 2014-2020 | 5 | 1 |
Other markets (4)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Virtus 1,0 | 2022- | 5 | 1 | ||
| Taigun 1.0 | 2021- | 5 | 1 | ||
| Kushaq | 2021- | 5 | 1 | ||
| Slavia | 2021- | 5 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Pipe Union is fitted on: Caddy Maxi Kombi 2020-2024; Kamiq 2019-; Leon style 2019-; Golf 2.0 BlueMotion 2019-2024; Octavia 2019-2024; Audi A3 Sportback 2019-2021; Audi A1 sportback 1.0 2018-; Tarraco FR 2018-2024; Audi Q3 quattro 2018-2019; Arona FR 2017-; Ibiza FR 2017-; T-Roc BlueMotion 2017-2024; Tiguan 2.0 4Motion 2017-2024; Polo 1.0 BlueMotion 2017-2024; Arteon 2017-2023; Karoq 2017-2022; Octavia 2017-2020; Ateca Style 2016-; Tiguan 2.0 4Motion 2016-2024; Kodiaq 2016-2024; golf 2.0 2016-2020; Audi A3 Sportback 2016-2020; Audi A3 Cabrio 2016-2020; Leon ST Stylance 2016-2020; Audi Q2 2.0 TDI 2016-2018; Touran 2,0 BlueMotion 2015-2024; Superb Combi 2015-2024; Passat saloon 2014-2024; Golf Sportsvan 1.6 2014-2020; Virtus 1,0 2022-; Taigun 1.0 2021-; Kushaq 2021-; Slavia 2021-.
