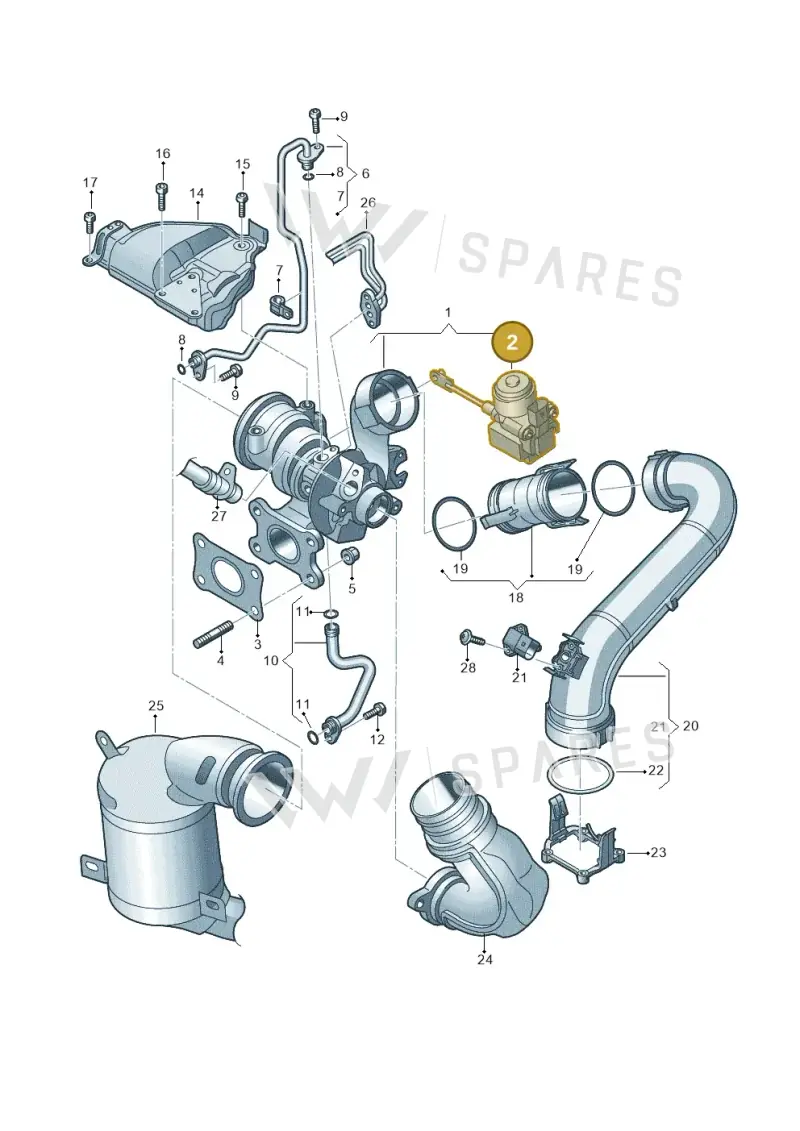

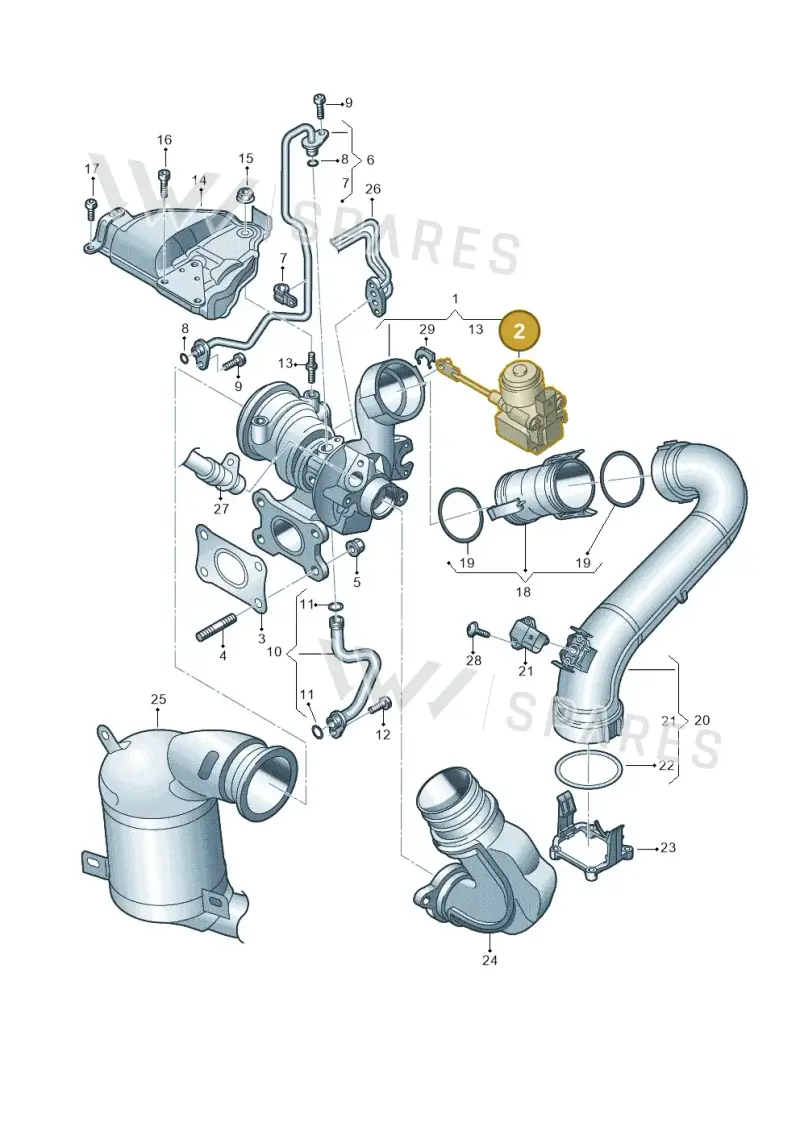

Number 2 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Repair Kit For Servomotor, part number 04E198725F. This kit is designed to service the servomotor, which is typically part of the turbocharger system, controlling variable geometry vanes or wastegate actuation. It is marked as item 2 in the diagram. Using a genuine OEM repair kit ensures that all components meet the exact specifications required for the proper functioning and longevity of the turbocharger system. This is crucial for maintaining engine power and efficiency.
Catalogue entry: REPAIR KIT CMBA,CXSA.
Technical details
- Category
- Tools & Accessories
- Country of origin
- Austria
- Customs (HS) code
- 84149000
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 18.5 × 11.5 × 6 cm
- Shipping weight
- 0.62 kg
Specifications
As recorded in the manufacturer’s parts catalogue for this part number.
Equipment codes
- D4X
PR codes identify the factory option a part belongs to; your vehicle’s are listed on the data sticker in the boot well or service booklet.
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
4 vehiclesRepair Kit For Servomotor — locate 04E198725F Volkswagen Servomotor Repair Kit | Turbocharger in the official exploded view and explore the surrounding assembly.
Parts in this assembly25
- 1Turbo 04E145721R
- 1Turbo 04E145721RX
- 1Turbo 04E145721S
- 1Turbo 04E145721SX
- 2Part 04E198725P
- 3Seal 04E253039D
- 4Bolt N91200201
- 5Collar Nut WHT000001N
- 6Pipe 04E145140AS
- 7Clamp 04E145807
- 8Seal Ring WHT006990
- 9Bolt N10405604
- 10Oil Line 04E145735C
- 11Seal Ring WHT005363
- 14Plate 04E253041F
- 15Collar Nut N01508210
- 15Bolt N10653201
- 16Screw N91187803
- 17Bolt N10451408
- 18Bracket 04E145875F
- 19Seal WHT001386
- 20Pipe 04E145673M
- 21Sensor 03G906051E
- 22Seal Ring WHT003247
- 28Screw N10507201
Vehicle fitment table4
Europe (4)
| Vehicle | Years | Pos. | Qty | Remark |
|---|---|---|---|---|
| Golf Estate | 2013-2017 | 2 | ||
| Golf 1.4 BlueMotion | 2012-2017 | 2 | ||
| Audi A3 Sportback | 2012-2016 | 2 | ||
| Leon ST Stylance | 2012-2016 | 2 | 1 | D |
The manufacturer’s catalogue lists this part number as fitted until 1 April 2014; later builds may use a superseding number.
Diagrams & fitment data powered by oemdiagrams.com
04E198725F Volkswagen Servomotor Repair Kit | Turbocharger is fitted on: Golf Estate 2013-2017; Golf 1.4 BlueMotion 2012-2017; Audi A3 Sportback 2012-2016; Leon ST Stylance 2012-2016.
