04L103469B Cylinder Head Cover
- 04L103469BThis pageNot stocked
Jan 2017 - 04L103469JCurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VOLKSWAGEN is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

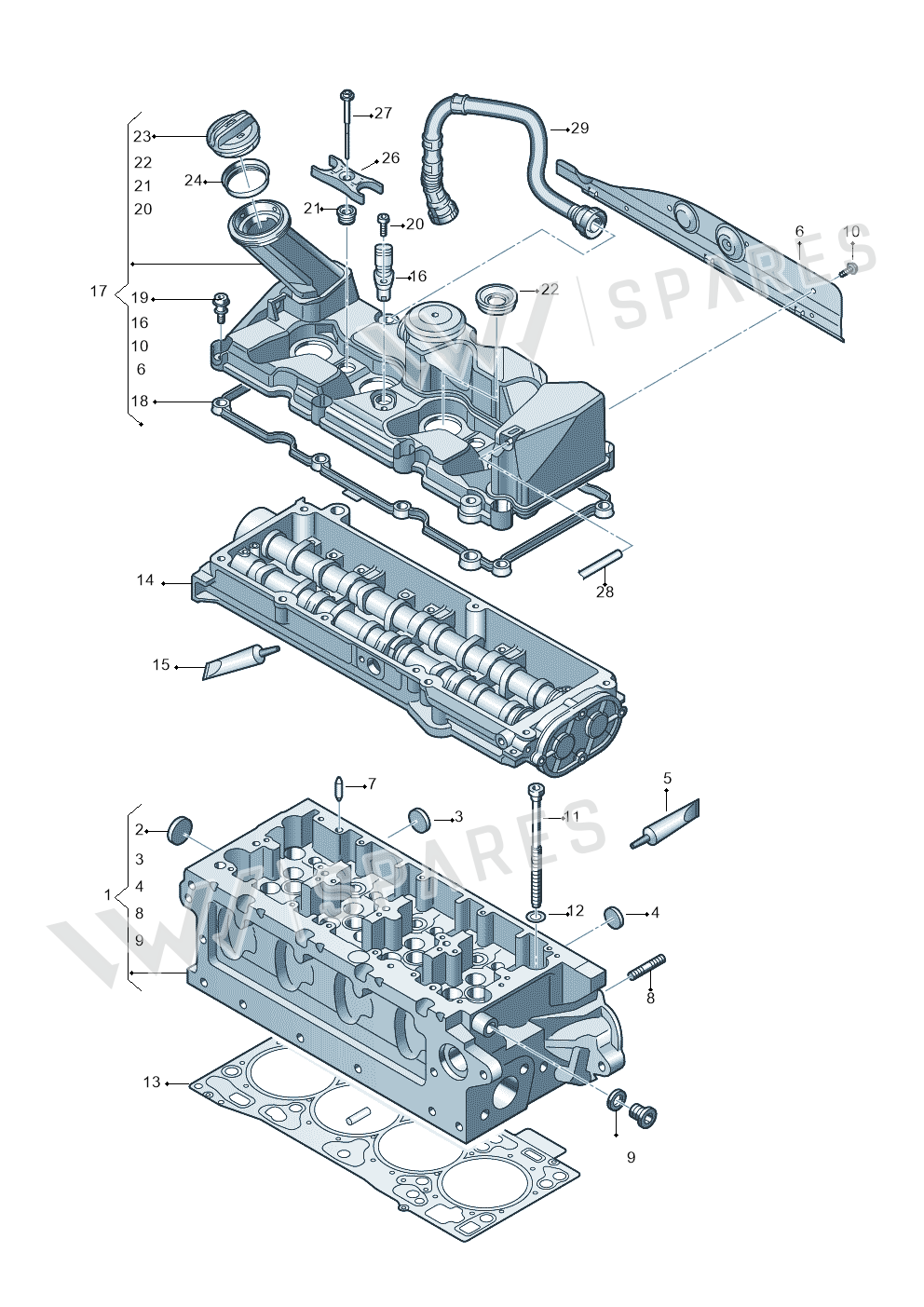

3 vehiclesCylinder Head Cover — locate Cylinder Head Cover in the official exploded view and explore the surrounding assembly.
Parts in this assembly34
- 1Cylinder Head 04L103065A
- 1Cylinder Head 04L103065AX
- 1Cylinder Head 04L103061H
- 1Cylinder Head 04L103063P
- 1Cylinder Head 04L103063PX
- 2Cover N90976102
- 3Cover N01191410
- 4Cover N01190710
- 5Locking D000600A2
- 6Heat Sh 04L129686
- 7Part 06D103251
- 8Bolt N90188902
- 8Bolt N0444076
- 9Bolt N91103401
- 10Bolt N10555702
- 11Bolt WHT007433
- 12Washer WHT005676
- 13Seal 04L103383AN
- 13Seal 04L103383AP
- 13Seal 04L103383AM
- 15Seal D176501A1
- 16Sender 04L907601A
- 16Sender 05E907601D
- 17Cover 04L103469E
- 17Cover 04L103469J
- 18Seal 04L103483A
- 19Bolt 04L103831
- 20Screw N10721401
- 21Grommet 04B103631
- 22Seal Ring 04L103070B
- 23Cover 06K103485B
- 24Seal Ring 04L133287
- 29Hose 04L103493G
- 29Hose 04L103493N
Vehicle fitment table3
Europe (3)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| caravelle | 2015-2019 | 17 | 1 |
| Single-cab transp. | 2015-2019 | 17 | 1 |
| California Camper | 2015-2019 | 17 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Cylinder Head Cover is fitted on: caravelle 2015-2019; Single-cab transp. 2015-2019; California Camper 2015-2019.
